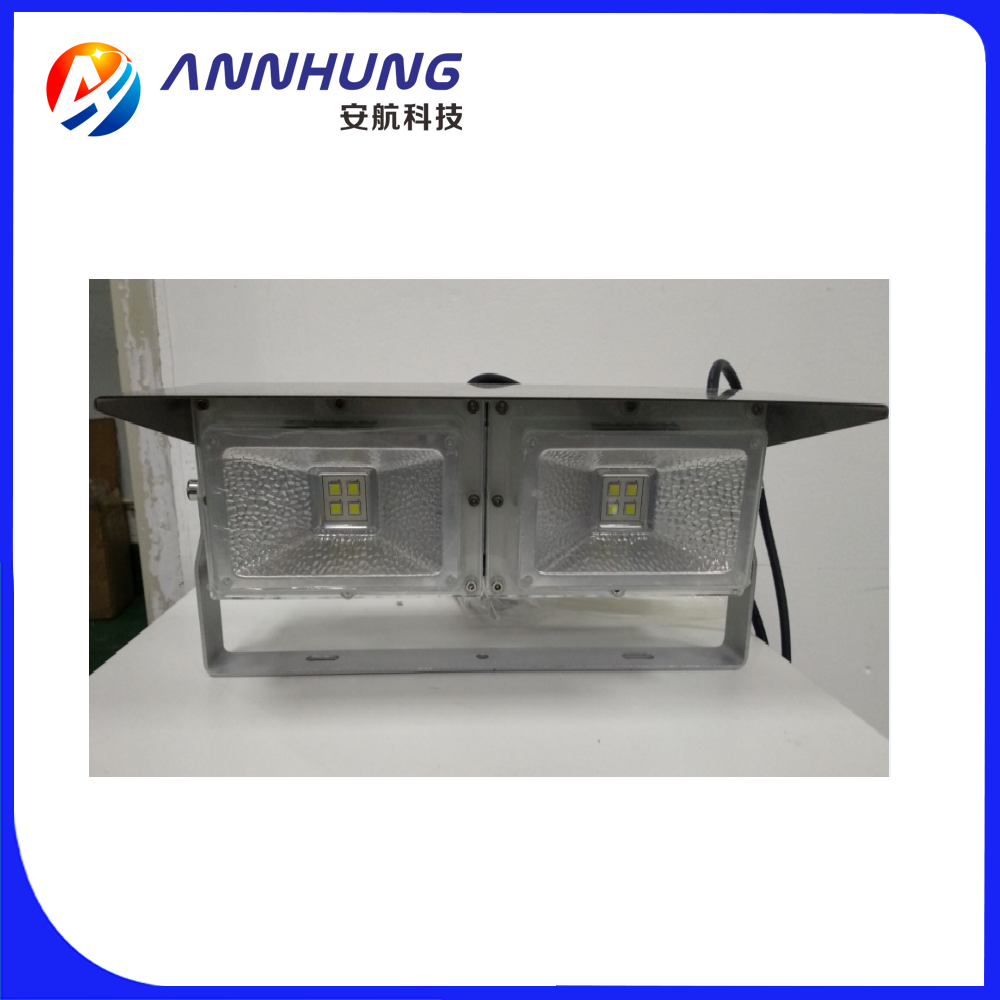

AH-HP/F Factory Direct Sale Aluminum Shell LED Surface Flood Light for Helipad Base Station
Click on the image to view the original image
Product： views：2AH-HP/F Factory Direct Sale Aluminum Shell LED Surface Flood Light for Helipad Base Station
Branch： Annhung
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:10
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)
Lamp Power(W):
30
Lamp Luminous Flux(lm):
white 3600Lm/7200Lm/14500Lm
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
100
Color Temperature(CCT):
Cool White
Beam Angle(°):
180 Horizontal Beam Angle
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
White
Lamp Body Material:
Aluminum Alloy, Aluminum Shell
Light Source:
LED, LED
Place of Origin:
Guangdong, China
Brand Name:
Annhung
Products name:
LED Flood Light
Light Intensity:
3600Lm/7200Lm/14500Lm
Color:
White
Weight:
0.81kg/1.96kg/3.1kg
Working mode:
Steady-burning way
International standard:
ICAO,FAA,CAAC
LED life:
100,000 hours
Application:
Outdoors
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month AH-HP/F LED Surface Flood Light 30W|60W|90W Aluminum Shell for H
Packaging & Delivery
Packaging Details
paper carton 1 piece/box
Port
Shenzhen Port

Packaging & Delivery

Packaging Details:paper carton 1 piece/box
3-15 days
Delivery Detail:Shipped in 15 days after payment

Specification

     Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC



Applications





It can be widely used in helipad, broadcasting, television, microwave, cellphone station, wall light, garden light and road light, etc.



Product Description



Brief Introduction

AH-HP/F Flood light adopts wholeseal aluminum shell. Protection standard is IP67. Light source uses LED with high-efficiency and low-consumption, which has wide viewing angle, illumination uniformity angle. This kind of flood light can be widely used outdoors, especially used in the base station.



Main Parameter

DescriptionParameter
Power supplyAC220V, 50/60Hz(Option voltage,eg.AC120V,DC48V)
Power consumption30W/60W/90W
Luminous flux3600Lm/7200Lm/14500Lm
Switch wayLight will work when light is on power.
Signal modeSteady-burning way
Connecting wayExternal way
Static power consumption≤0.5W
Ambient temperature- 55℃~+70℃
Overall dimension(mm)155×110×100(30W),310×110×100(60W),465×110×100(90W)
Installing dimension80mm/18*8.5
Protection standardIP67
Weight0.81kg/1.96kg/3.1kg



Characteristics

Visual angle of AH-HP/F Flood light is larger than 150. Light source efficiency is higher than 100Lm/W and service life is more than tenyears.



Compliance

The lights in accordance with ICAO and FAA regulations and CAP437 (offshore helipads)
