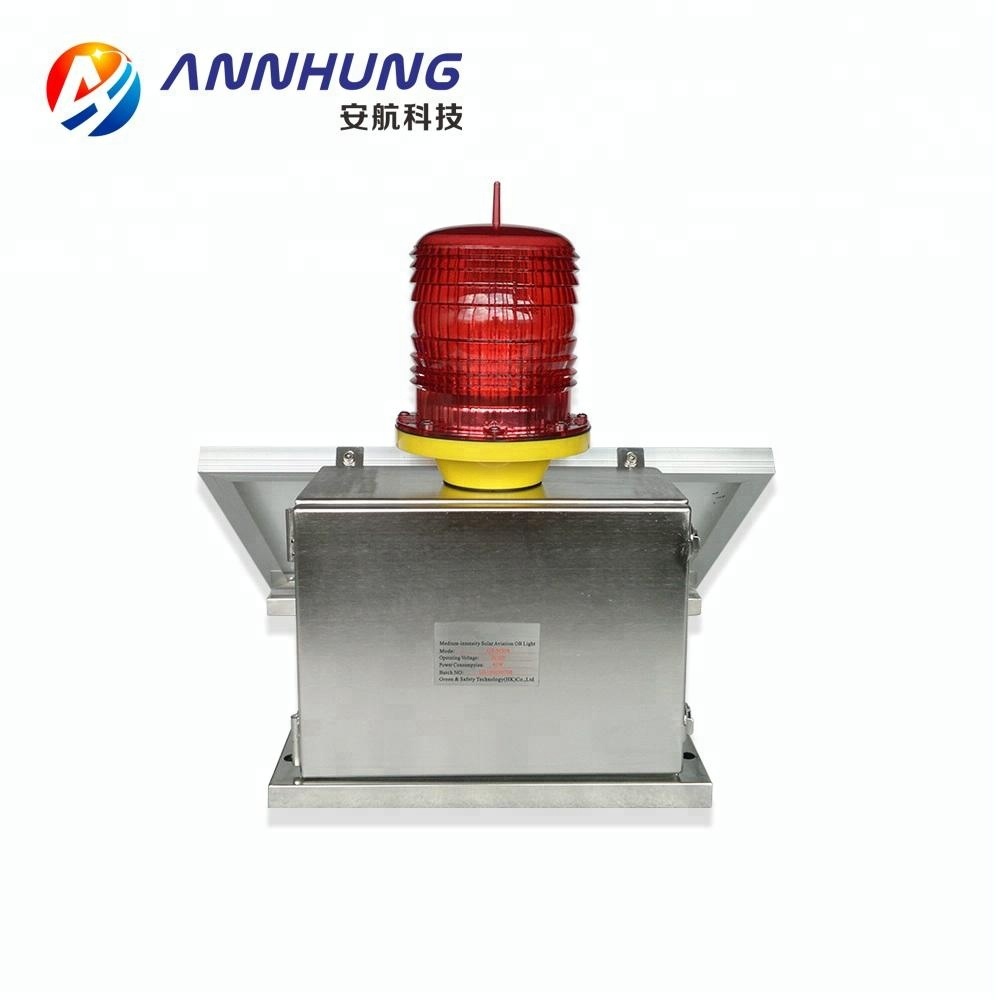

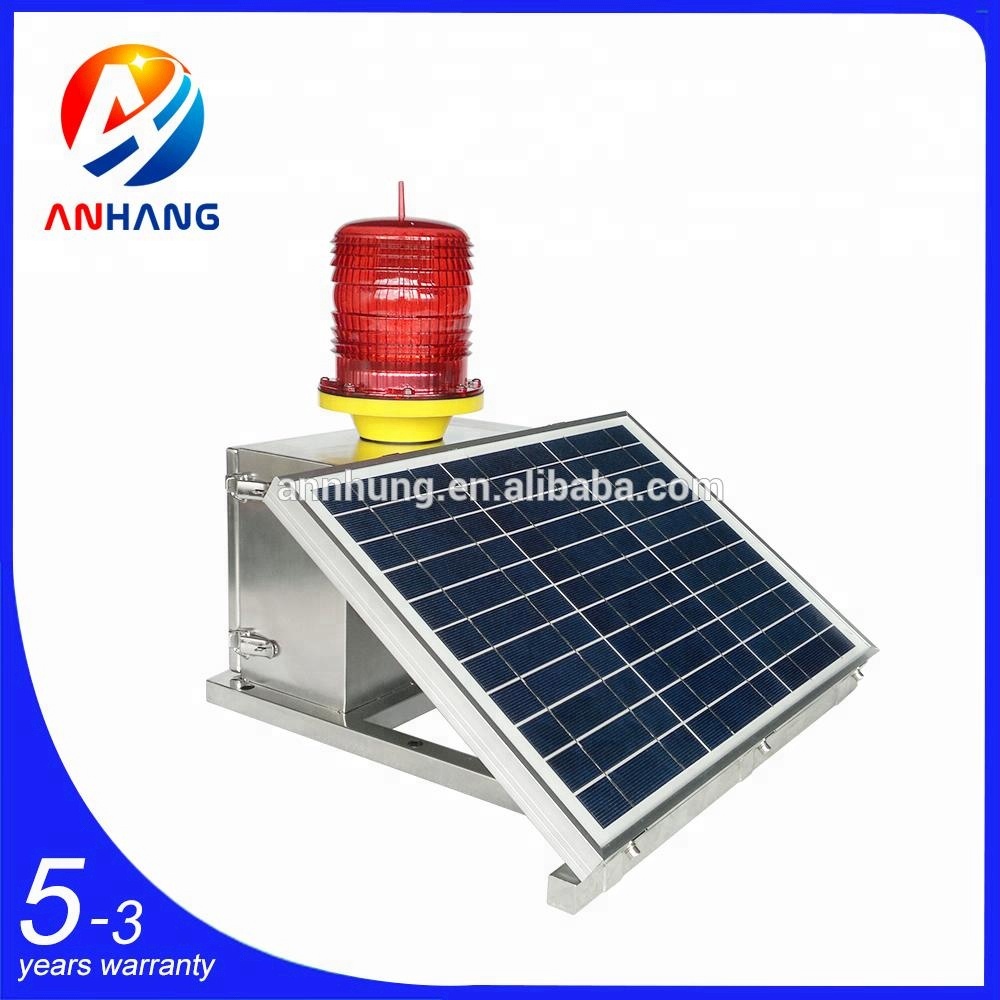

Medium-intensity Type B Solar Aviation Light
Aviation Obstruction Light
Aviation Light
Obstruction Light
Compliant with ICAO,FAA,CAAC
AH-MS/S Medium-intensity Type B Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom,GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Function
This product is single solar light. Installed in the fuse, it can control flash automatically when ambient brightness is lower than 50 cd/m2.This product can work at night and close during the day automatically by Solar panel which function is equal to photocell sensor. Side on battery box can be opened to be convenient for maintenances.
Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong corrosion resistance and UV protection.
7. At least 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. Side open of battery box can be open for maintenance convenience very easily.
10. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
Main Parameter
| Description | Parameter |
| Mode | AH-MS/S |
| Light intensity | 2,000cd ±25% |
| Working mode | Flash mode (20-60times/minute) |
| Light source | LED |
| Service life of LED | 100,000hours |
| Operating voltage | DC 12V (Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Material | |
| Housing | PC |
| Base | SUS304 stainless steel |
| Autonomy(without sunlight) | at least 7 days(Option 15days) |
| Power Consumption | 20W |
| Overall Size(mm) | 525 by 490 by 490 |
| Installation Size(mm) | 200 by 322 by 12 |
| Weight | 14.6Kg |
| Emitting Color | Red |
| Ambient Temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection Standard | IP65 |
Compliance
Medium-intensity Type B and FAA L-864
Medium-intensity Type B Solar Aviation Obstruction Light, ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3
