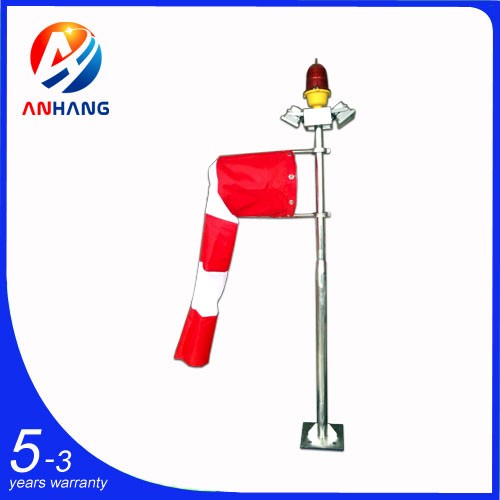

AH-HP/W-1 Helipad windcone wind sock

Click on the image to view the original image

Product：	views：2AH-HP/W-1 Helipad windcone wind sock
Branch：	Annhung
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:10

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: AC220V, 50/60 Hz(Option voltage,eg.AC120V,DC48V)

Lamp Power(W):: 10

Lamp Luminous Flux(lm):: 32.5cd

Lamp Luminous Efficiency(lm/w):: 120

CRI (Ra):: 100

Color Temperature(CCT):: Other

Beam Angle(°):: 360 Horizontal Beam Angle

IP Rating:: IP65

Certification:: CE, RoHS

Emitting Color:: Red

Lamp Body Material:: Stainless Steel

Light Source:: LED, LED

Place of Origin:: Guangdong, China

Brand Name:: Annhung

Products name:: Helpad windcone

Pole material:: stainless steel

windsock:: nylon, pvc

Pole height::: 1m, 2m, 3m etc

Color Temperature(CCT)::: Green or Yellow

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: paper carton 1 piece/box

Port: Shenzhen Port

Packaging & Delivery

Packaging Details: paper carton 1 piece/box
2-15 days

Delivery Detail: Shipped in 2-15 days after payment

Specification

Heliport Light

Helipad Lighting

compliant with ICAO,FAA,CAAC

Applications

Wind cone is used in airport and helipad fields for indicating final approach and taking off wind direction

Product Description

Description

This product is used for indicating final approach and taking off wind direction. According to ICAO requirement, every helipad field must have at least one wind cone. Installation position must be not
interfered by around object and airflow formed by helipad wing and make pilot recognize wind cone at
200meters clearly. AH-HP/W illumination wind cone is one sign for all kinds of airports and helipad
fields and can work all day. Product standard is compliance with requirement FAA, AC150/5345-27C,L-807 and ICAO

Main Parameter

1.Wind sock is made of corrosion resistance and high temperature resistance PVC material.
2.-1Pc LED aviation obstruction light on top and 2Pcs 6W LED flood light for illumination. (Height of Wind Cone is less than 4 meters)
-1Pc LED aviation obstruction light on top and 4Pcs 6W LED flood light for illumination.(Height of Wind Cone is equal to or more than 4 meters)
3.Pole is made of light, strong corrosion resistance SUS 304 Stainless steel.

4.Height of wind cone: 1.5meters,2.5meters,3.5meters,4meters,5meters,6meters,7meters,etc.
5.Operating voltage:AC220V,50/60 Hz(Option voltage,eg.AC120V,DC48V)
6.Three kind of wind sock: - 1.2 meters length, big diameter is 300mm,small one is 150mm
(Height of Wind Cone is less than 4 meters)
- 2.4 meters length, big diameter is 600mm,small one is 300mm.(Height of Wind Cone is between 4meters and 6meters)
- 3.6 meters length, big diameter is 900mm, small one is 450mm.(Height of Wind Cone is more than 6meters)
Color: Red and white or orange and white or orange 4.Max wind load :260km/h.

Compliance

The lights in accordance with ICAO and FAA regulations and CAP437 (offshore helipads)
