Home > Products > Low-intensity Double Beacon Light within 45 Meters Steady Burning Flashing Red Safety Obstruction Light

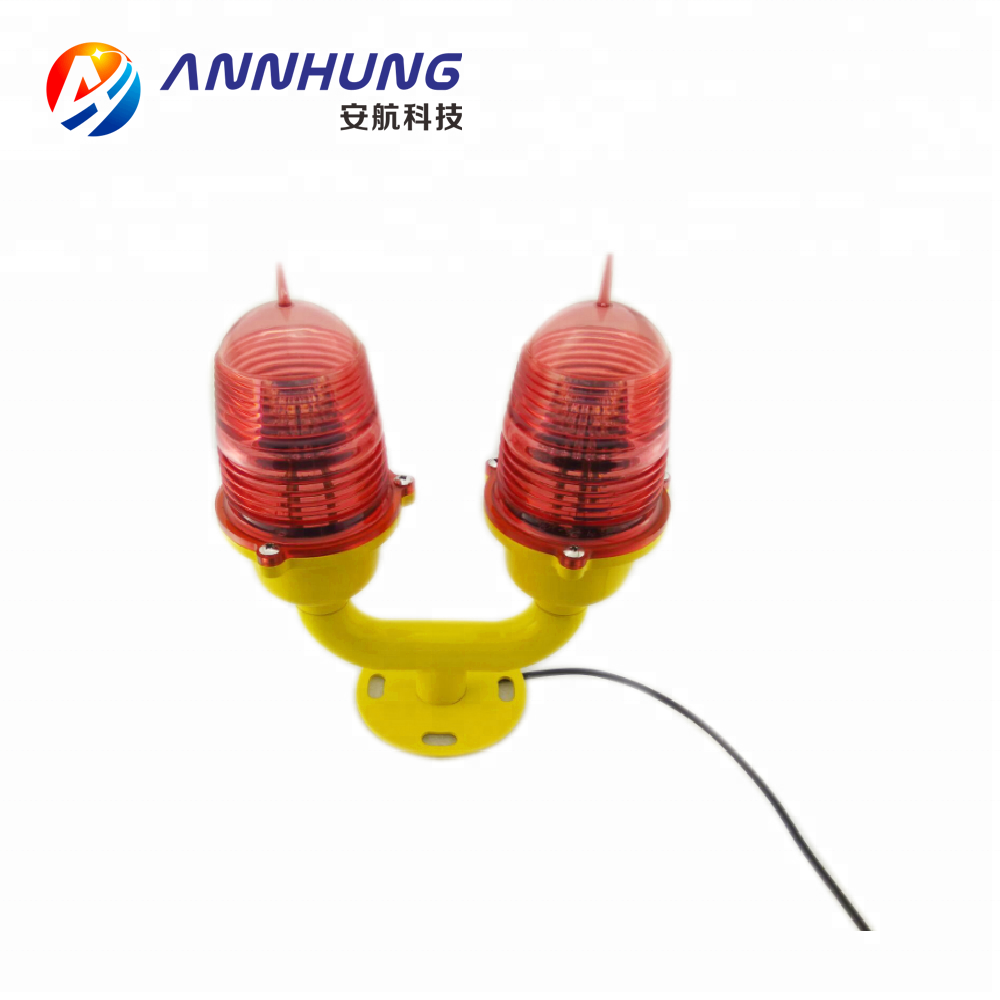

Low-intensity Double Beacon Light within 45 Meters Steady Burning Flashing Red Safety Obstruction Light
Click on the image to view the original image
Product： views：2Low-intensity Double Beacon Light within 45 Meters Steady Burning Flashing Red Safety Obstruction Light
Branch： Annhung
Type： Aviation Obstruction Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 20:10
  Negotiated
Product Details
Overview
Quick Details
Type:
Aviation Obstruction Lights
Input Voltage(V):
AC110-240V, DC12-48V
Lamp Power(W):
4
Lamp Luminous Flux(lm):
100%
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra):
100
Color Temperature(CCT):
Other
Beam Angle(°):
360 Horizontal Beam Angle, 360 Horizontal Beam Angle
IP Rating:
IP65
Certification:
RoHS
Emitting Color:
Red, Red
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Place of Origin:
Guangdong, China
Brand Name:
Annhung
Weight:
2.0kg
Products name:
Low-intensity L 810 LED Double Aviation Obstruction Light
Light Intensity:
≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
Working mode:
Steady Burning or Flashing
Overall Size:
258 by 136 by 320
Standard:
ICAO Annex 14, FAA L810
Material:
die-casting aluminum, polycarbonate
Service life of light source:
≥ 100,000hours
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Low-intensity Double Beacon Light within 45 Meters Steady Burnin
Packaging & Delivery
Packaging Details
258 by 136 by 320
paper carton 1 piece/box
Port
Shenzhen Port

Packaging & Delivery

Packaging Details:                             paper carton 1 piece/box

                                                                2-10 days

Delivery Detail:                                    Shipped in 2-10 days after payment



Specification



                                                                          AH-LI/D Low-intensity Double Aviation Obstruction Light

Double Aviation light

Twin Obstruction light

Low intensity light



compliant with ICAO,FAA,CAAC                                            HOT SALE! Promotion!

Applications





This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is lower than 45m.When obstacle object is higher than 45m, this series of products can be used with Medium-intensity or high-intensity obstruction light to potentially hazardous obstructions to air traffic with a steady or flashing red safety light.





Product Description







Main Parameter



DescriptionParameter
ModeAH-LI/D
Light intensity≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
Flash rateSteady-burning mode or Flashing mode(20-60times/minute)
Light sourceLED
Service life of LED≥ 100,000hours
Operating voltageAC220V (option voltage,eg.AC120V,AC110V,DC48V)
Power consumption4W
Overall size(mm)258 by 136 by 320
Installation size3/4inch or 1 inch
Vertical degree≥ 10°
Horizontal degree360°
Material
    HousingPolycarbonate
    Basedie casting aluminum
Weight2Kg
Emitting colorAviation red
Ambient temperature-40℃~+70℃
Wind load80m/s
ProtectionstandardIP65



Function

This product is the double light with Photocell. It can work at night and close during the day automatically by photocell. There are two lights. Main-standby way. One works, the other is for standby. When main light is broken, standby light can work automatically.



Advantages

1.PC material with good impact protection strength, thermal stability, high transmittance.
2.Bird spike against bird drop.
3.International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
4.LED based on obstruction light last 15 times longer than traditional light source, incandescent light.
5.About 96% less power than 116W incandescent light.
6.Major Maintenance Cost Saving, Surge protection device inside light.
7.Strong corrosion resistance, Shock and Vibrations protection and UV protection.
8.Dawn to Dusk operating: Built-in photocell can let light work automatically at night, closed during the day.
9.Free maintenance and 3/4 inch or 1inch installation size being suitable for flag-pole or tower installation way.
10.There is one switch converting between Flasing mode and Steady-burning mode.
11.Five Years Warranty Period.



Compliance

Low-intensity Type A or Type B FAA L-810
Low Intensity Double Obstruction Light, ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3



Installation Drawing





Company Information





Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website: www.annhung.com   www.ahicao.com
