Packaging & Delivery
| Packaging Details: | paper carton 1 piece/box 3-15 days |
|---|---|
| Delivery Detail: | Shipped in 15 days after payment |
Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC
Description

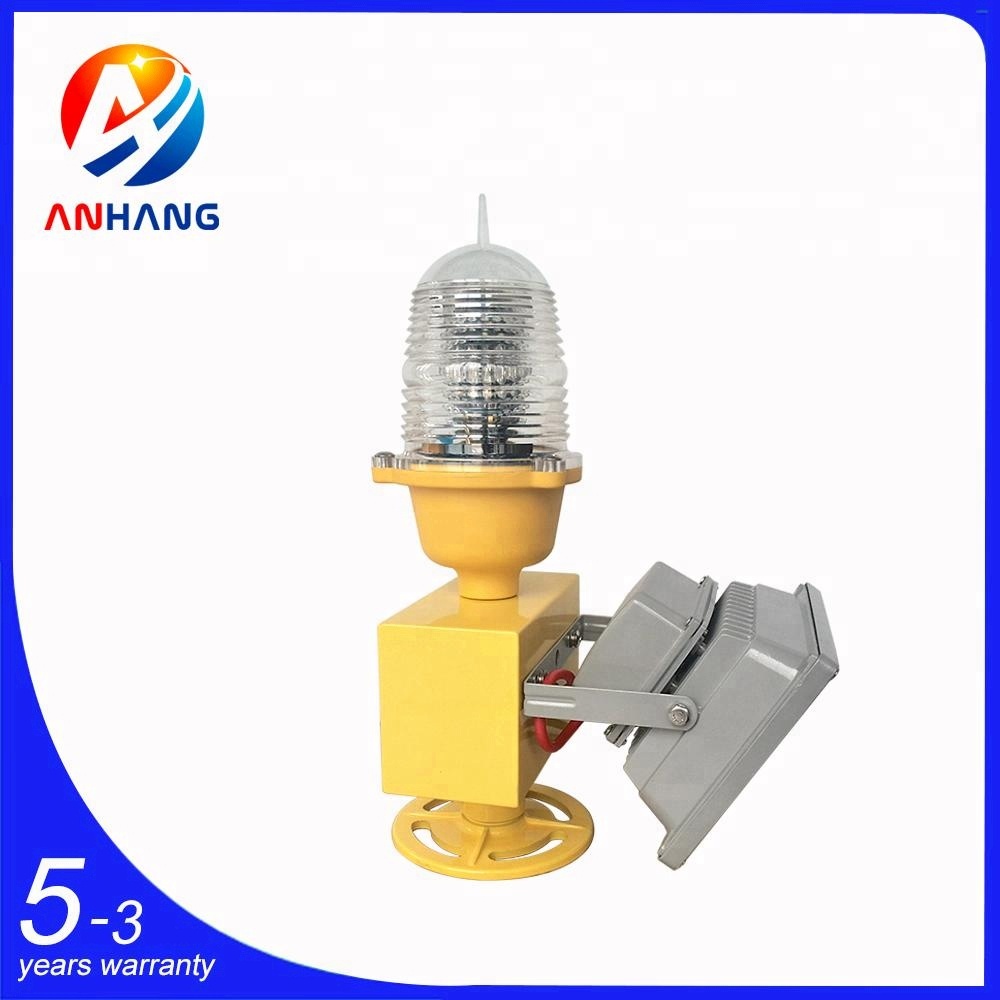

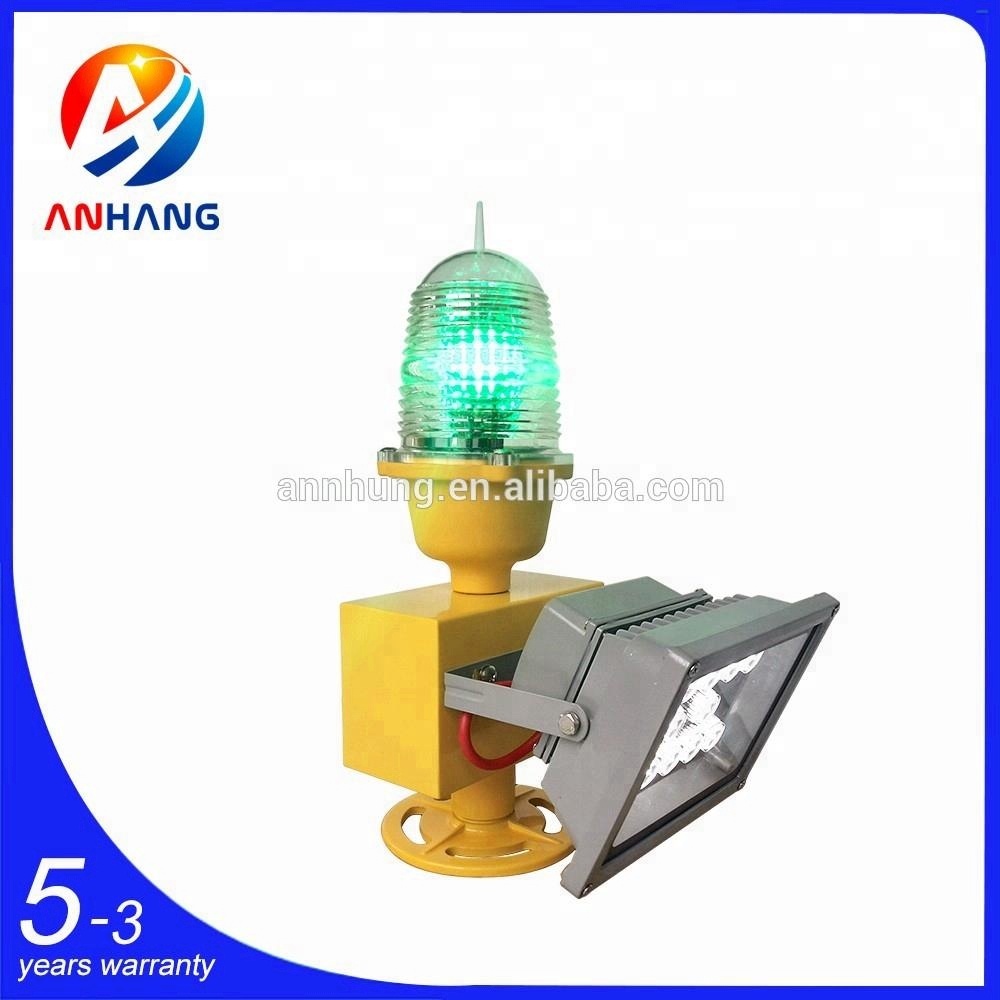

The Heliport Directional Arrow Floodlight does double duty. Perimeter Light on top illuminates the directional arrow to emphasize the green lights for an accurate approach and is one of the string of green marker lights in the arrow. Floodlights on middle is used for illumination.
Main Parameter
| Description | Parameter |
| Mode | AH-HP/D |
| Light intensity | ≥ 25cd(Perimeter Light on Top), ≥ 1500Lm |
| Light source | LED |
| Service life of LED | 100,000hours |
| Operating voltage | AC220V,50/60 Hz |
| Emitting color | Green color (Perimeter Light on Top),White color(Flood Light on middle) |
| Power consumption | 10W |
| Overall size(mm) | 245 × 180 × 385 |
| Installation size(mm) | 93 × 93 × Φ12 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 3.1kg |
| Protection standard | IP65 |
Compliance
The lights in accordance with ICAO and FAA regulations and CAP437 (offshore helipads)
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
