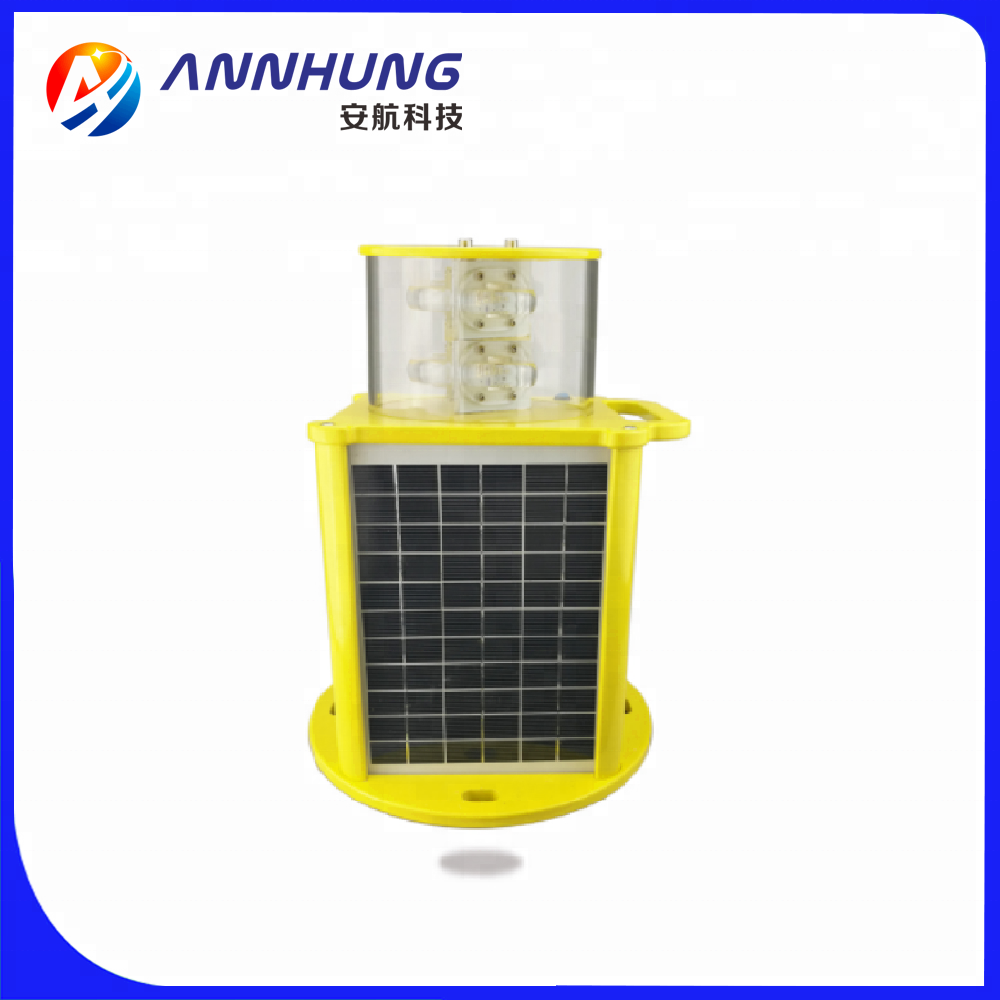

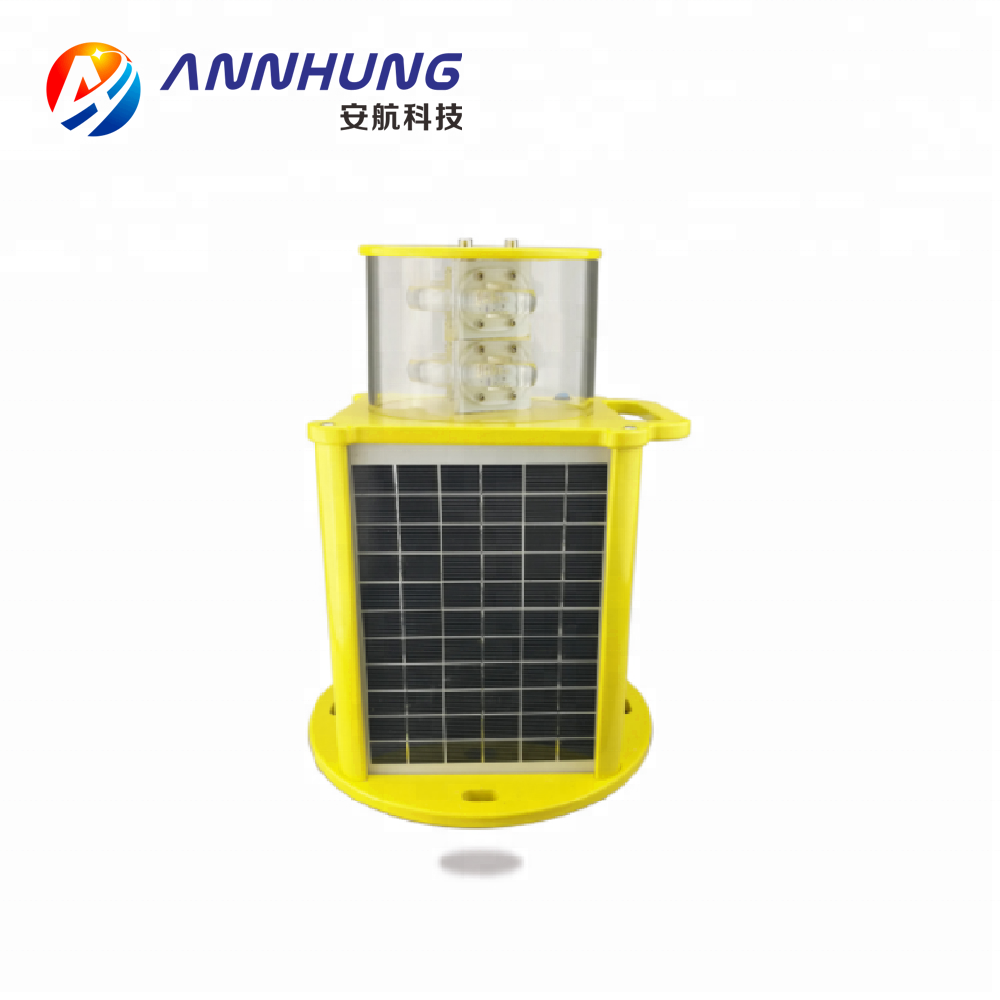

This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.
There are two lamps in the housing, top one is the main lamp, down one is the standby lamp. When main lamp fail, standby lamp turn on automatically.
Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3. Low power consumption profession flash switch.
4. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
5. Strong impact lamp shape with PC material.
6. Strong corrosion resistance and UV protection.
7. At least 7 days autonomy.(optional 15days)
8. Having lightning-protection function.
9. Side open of battery box can be open for maintenance convenience very easily.
10. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
Main Parameter
SPECIFICATIONS | AH-MS/BD Medium-intensity Type B L864 Double Solar Aviation Obstruction Light |
Light Characteristics |
|
Light Source | Ultra high intensity CREE LED |
Emitting Color | Red |
Intensity(cd) | 2000cd±25% |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥3 |
Flash Characteristics | Flashing 20FPM, |
Operation Mode | Main-standby, Dusk-to-Dawn operation |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics |
|
Operating Voltage(Vdc) | 12 |
Circuit Protection | Integrated |
Solar Characteristics |
|
Solar Module Type | Mono crystalline Silicon |
Output(watts) | 6×4=24W |
Charging Regulation | Microprocessor controlled |
Battery Characteristics |
|
Battery type | Valve-Regulated Lead Acid Battery(VRLA) |
Nominal Voltage (V) | 12 |
Battery Service Life | Average 3 years |
Autonomy (hours) | 150 |
Physical Characteristics |
|
Lamb Body Material | UV protected Polycarbonate |
Base Material | Powder-coated Die-casting aluminum |
Installation Size | 220×220×M10 |
Overall Size (mm) | 260×260×355 550 |
Weight(kg) | 9 |
Product Life Expectancy | Average 3 years |
Environmental Factors |
|
Ambient Temperature(℃) -55℃~+70℃ | -45~80 |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP67 |
Compliance |
|
ICAO | Annex 14 Volume 1,"Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 |
| Medium-intensity Type B Obstacle Light |
FAA | L-864 |
Optional |
|
| GPS Synchronization
|
| GSM cellphone monitoring
|
| NVG - compatible infrared (IR) LED
|
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
l FAA L-810
