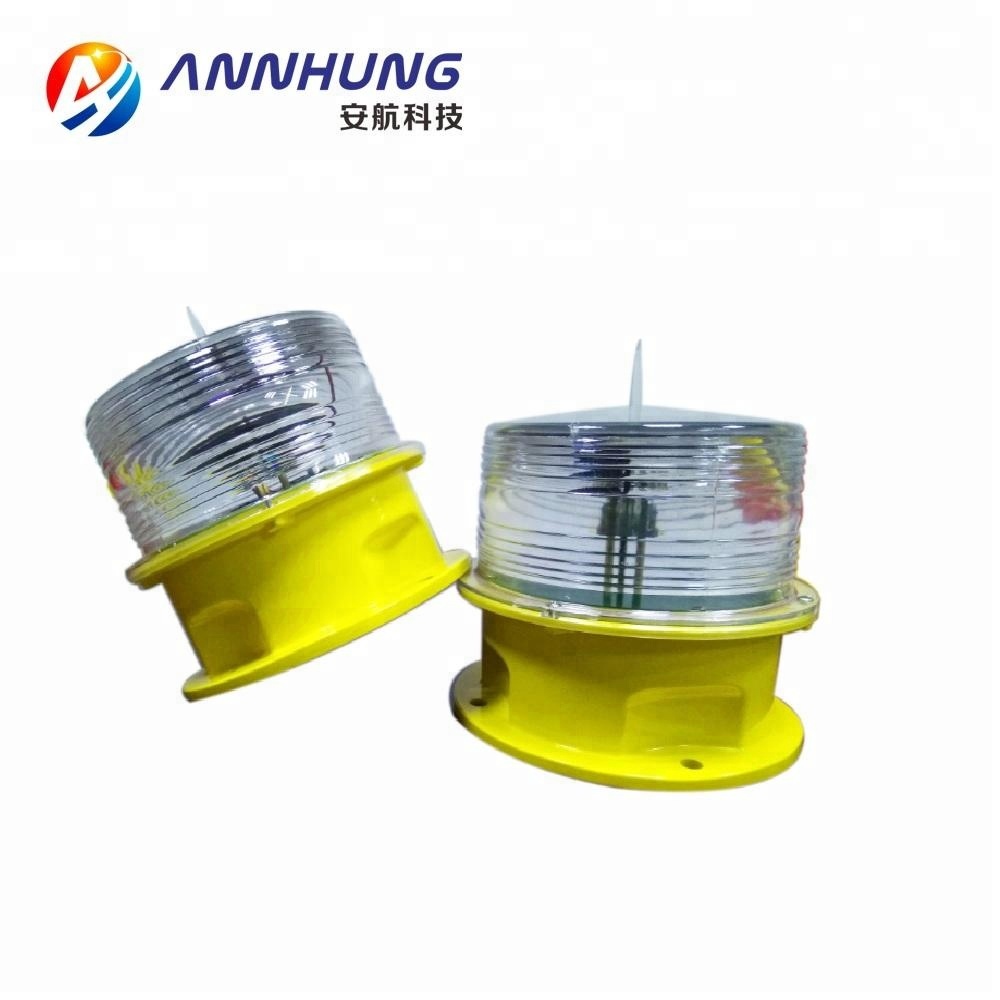

NVG Solar Airfield Light with Wireless Remote Controller
Packaging & Delivery
Packaging Details: paper carton 1 piece/box
3-15 days
Delivery Detail: Shipped in 15 days after payment
Specification
Aircraft warning light. LED airport lamp. medium intensity. red Steady-burning obstruction beacon. compliant with ICAO,FAA,CAAC
Applications
Scope of Application
AH-SA/C Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad.
Wireless remote control is optional function for this light. User could turn on/off light within 3-4km without obstacle between light and controller.
Fragile coupling need to be paid separately if needed.
Function
l Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
l Helipad taxiway
l Emergency operations
Parameter
SPECIFICATIONS | AH-SA/C Solar Airfield Light |
Light Characteristics |
|
Light Source | LED |
Available Colors | Red, Green, Yellow, White, Blue |
| Red/Green, Yellow/White |
Intensity(cd) | >10cd |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥10 |
Flash Characteristics | Steady(Flashing mode is optional) |
Operation Mode | Solar panel as photocell for day/night operation |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics |
|
Operating Voltage | 3.7V |
Circuit Protection | Integrated |
Solar Characteristics |
|
Solar Module Type | Mono crystalline Silicon |
Output(watts) | 3.6W |
Charging Regulation | Microprocessor controlled |
Battery Characteristics |
|
Battery type | Valve Regulated Lead Acid battery |
Nominal Voltage (V) | 3.7 |
Battery Service Life | Average 3 years |
Autonomy (hours) | >80hours |
Physical Characteristics |
|
Lamb Body Material | Aluminum Alloy |
Base Material | Powder-coated Die-casting aluminum |
Installation Size | 190×190×M10 |
Overall Size (mm) | 220×220×233 |
Weight(kg) | 4 |
Product Life Expectancy | Average 5 years |
Environmental Factors |
|
Ambient Temperature(℃) -55℃~+70℃ | -55~70 |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP68 |
Compliance |
|
ICAO | Annex 14 Volume Heliports 5.3.
|
FAA | AC 150/5390-2B Heliport Design Guide |
Optional |
|
| Wireless remote control |
| External battery charger
|
| NVG - compatible infrared (IR) LED
|
| Pilot to ground remote control |
| Dusk-till-dawn & 24hr operation adjustable switch |
Advantages
1.International advanced solar panel reaching at least 10 years service life.
2.Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
3.Built-in Solar Panel.
4.Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source
7.Dusk-to-dawn operation
8. At least 5 days autonomy (optional 20days).
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for Telecom Tower and Electric installation way.
Compliance
l ICAO Annex 14
l FAA AC 150/5345
l CAP 437
