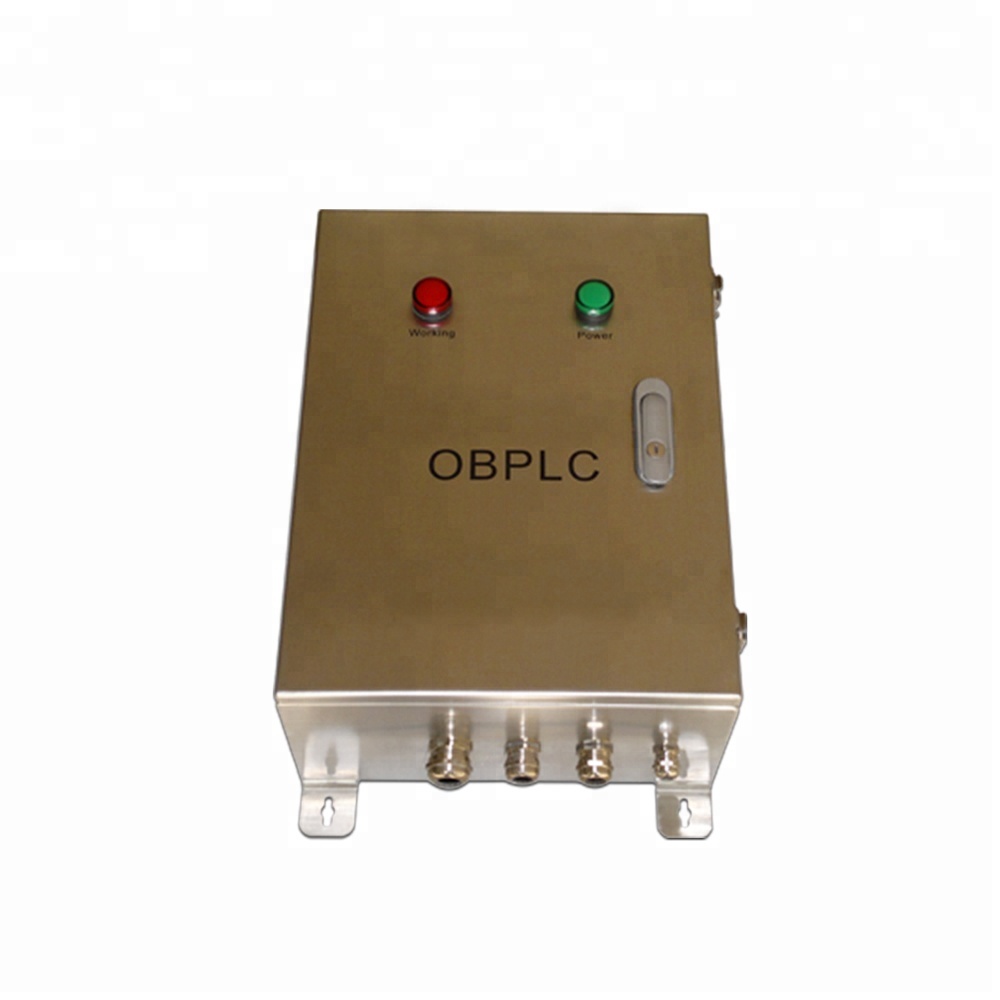

AH-OC/E Controller for Aviation Obstruction Light
2.Control capacity for Aviation Obstruction Lights: ≤24
3.Operating voltage: AC220V (Option other voltage, AC120V, DC48V, DC24V, etc)
4.Power consumption: 20W
5.Max load: 5KW
6.Overall size(mm): 400 by 300 by 172
7.Installation size(mm): 440 by 260 by ¢6
8.Enclosure material:SUS304 stainless steel(Option 316 material)
9.Working way: at night or all day
10.Weight: 7.5Kg
11.Application lights: Low-intensity Single and Double Aviation Obstruction Light, Medium-intensity Type B Aviation Obstruction Light, Medium-intensity Type A Aviation Obstruction light and High-intensity Type A Aviation Obstruction Light.
11.Ambient temperature: -55℃~+70℃
12.Wind load: 80m/s
1 Mode: AH-OC/E
Product Application
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
Packaging: Plastic bag with Paper carton .
Delivery: In 2-30 days after payment.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
