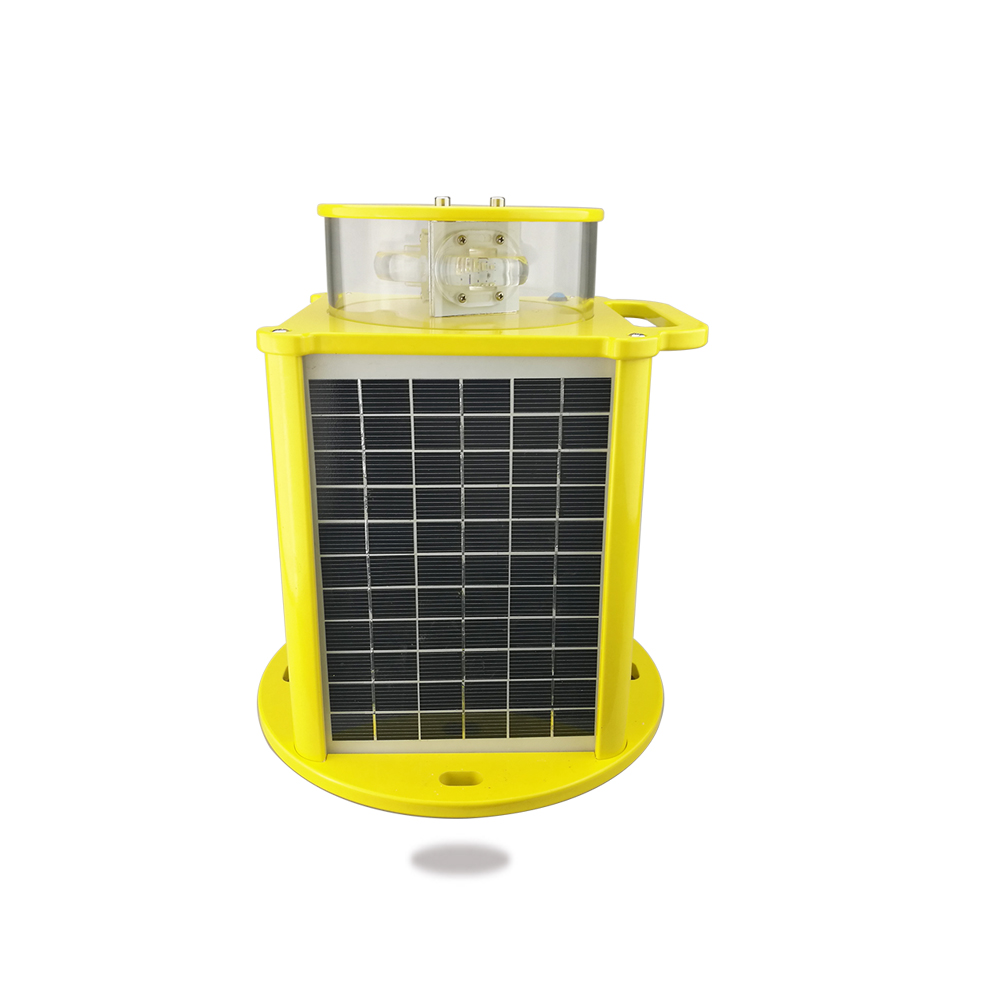

AH-MS-B1 Medium-intensity Type B L864 Solar Aviation Obstruction Light
This Medium-intensity Type B Aviation Obstruction Light
flashing red color, designed for marking top of obstacle
which height is between 45 to 105 meters. CREE Ultra high intensity LED is used as light source
which make performance better. Four (4) solar panels are
integrated into the assembly and mounted to collect
sunlight at all angles. GPS device is optional for AH-MS/B, it make different
lights flash synchronously
1.Product Name:Solar Airfield Light
2.Mode: AH-MS-B1
3.Standard: ICAO FAA
4.Working Mode : Flashing mode or Steady-burning mode
5.Light source: LED
6.Service life of LED: ≥100,000hours
7.Operating voltage: DC12V, recyclable batteries with the lightest environmental and long life.
8.Autonomy: At least 5days (Option 20days)
9.Emitting color: Red & Green & White & Yellow & Blue
10.Control Way: photocell. Light can work at night automatically by photocell.
Physical
l PC housing,UV resistance, shockproof and corrosion proof.
l Bird deterrent spike
l Powder coated die casting aluminum base
l 4-side monocrystalline silicon solar panel, conversion efficiency is betther than polycrystalline silicon
l ON/OFF button interface
Optional
l User-adjustable operation between dusk-till-dawn & 24hr operation
l External charger
l Wireless remote control - ON/OFF, emitting color change
l Bluetooth remote control
l Infrared remote control
l GSM Monitoring
Product Application
l AH-MS/B solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place
Packaging: Plastic bag with Paper carton .
Delivery: In 2-30 days after payment.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
