- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 110-240VAC, 48VDC, 24VDC or others
- Lamp Power(W):
- 7
- Lamp Luminous Flux(lm):
- Green ≥ 100cd
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Green
- Beam Angle(°):
- 0-30
- IP Rating:
- IP68
- Certification:
- CE, RoHS
- Emitting Color:
- Green
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- Other
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Annhung
- Light Intensity:
- ≥ 100cd
- Overall Size(mm):
- 194 by 194 by 138
- Signal mode:
- Steady-burning way
- Weight:
- 4.5Kg
- Installation size(mm):
- 199 by199 by146
- Light source:
- High power LED
- Emitting color:
- Green/Green, White/Yellow, Green/Red or others
- Installation Way:
- Under ground
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- paper carton 1 piece/box
3-15 days
- Port
- HongKong,Shenzhen

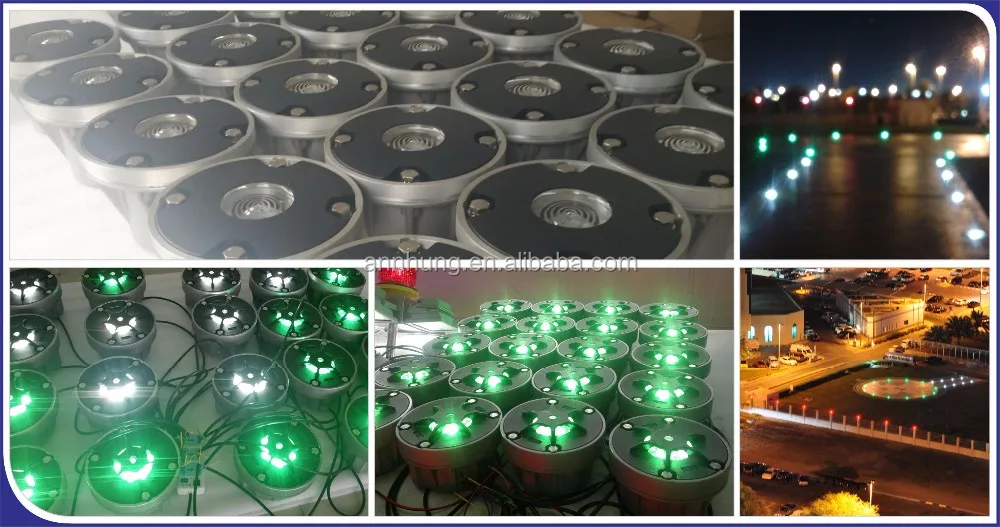

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated
Heliport Inset bidirectional light
Heliport light
Helipad lighting
Inset Touchdown and Lift-off Area Light
compliant with ICAO,FAA
Heliport Inset bidirectional light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.It could be used as Center Line Light, Runway Threshold/End Light, Runway Edge Lighting etc.The emitting color is green/green or yellow/red or yellow/green or red/green.
Main Parameter
| Description | Parameter |
| Mode | AH-HP/C |
| Light intensity | ≥ 100cd |
| Light source | high intensity LED |
| Service life of LED | 100, 000hours |
| Operation Mode | 24hours operation |
| Operating voltage | 110-240VAC, 48VDC, 24VDC or others |
| Available Colors | Green/Green, White/Yellow, Green/Red or others |
| Power | 7W |
| Overall size(mm) | 194*194*138 |
| Installation size(mm) | 199*199*146 |
| Ambient temperature | -55℃~+70℃ |
| Weight | 4.5kg |
| Protection standard | IP68 |
Compliance
The lights in accordance with ICAO and FAA regulations
