- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- DC(12-48VDC) or AC(110-240VAC)
- Lamp Power(W):
- 12
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Cool White
- Beam Angle(°):
- Vertical Divergence(degrees)≥10
- IP Rating:
- IP65
- Certification:
- CE, RoHS
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum Alloy
- Base Type:
- Other
- Place of Origin:
- Guangdong, China
- Brand Name:
- Annhung
- Dimension(mm):
- 220*220*233
- Light Intensity:
- ≥2500cd
- International standard:
- ICAO FAA CAP
- Vertical degree:
- ≥ 10°
- Light Source Service Life:
- > 100,000hours
- Ambient Temperature:
- -35℃~+80℃
- Weight:
- 2Kg
- Light source:
- LED
- Flash Characteristics:
- 4 quick flashes in 0.8s, off 1.2s(Morse code "H")
- Operation Mode:
- 24hours operation
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- Carton
- Port
- Shenzhen

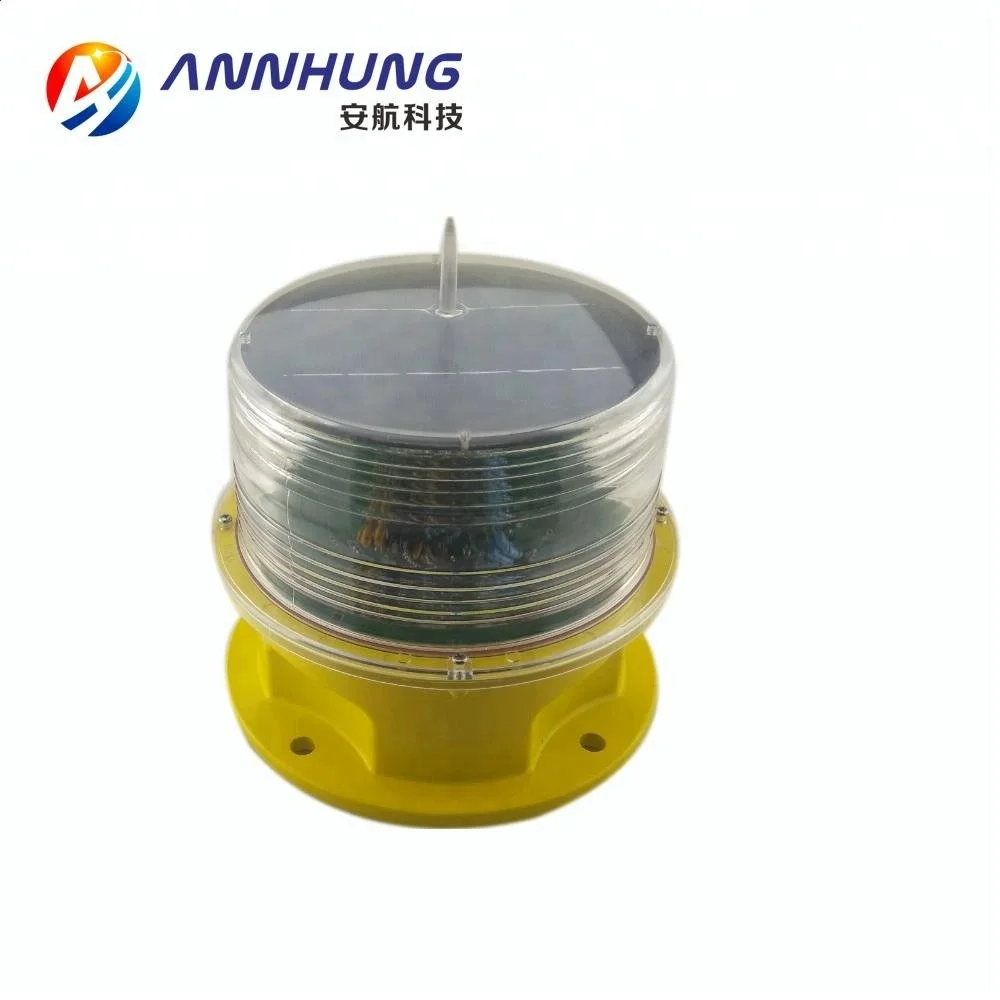

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated
Heliport Beacon
Compliant with ICAO,FAA,CAP Most professional service!
A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.AH-HP-BE flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).
Main Parameter
| Description | Parameter |
| Light Source | LED |
| Light intensity | ≥2500cd |
| Flash Characteristics | 4 quick flashes in 0.8s, off 1.2s(Morse code “H”) |
| Available Colors | White |
| Service life of LED | > 100,000hours |
| Operating voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power | 12W |
| Dimension(mm) | 220*220*233 |
| Mounting | 190*190*12 |
| Vertical degree | ≥ 10° |
| Horizontal degree | 360° |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Weight(kg) | 2 |
| Product Life Expectancy | Average 5 years |
| Emitting color | Aviation white |
| Ambient temperature | -35℃~+80℃ |
| Wind load | 80m/s |
| Protectionstandard | IP65 |
Advantages
LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light
♥♥Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
♥♥Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
♥♥UV protection Powder coated bright yellow color base make better visibility
♥♥Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
♥♥Controller for power supplying and turn ON/OFF light
♥♥VHF pilot to ground remote control
Application
♥♥Helipad/Heliport/Helideck
Product imagine:
Compliance
Low-intensity Type A or Type B FAA L-810
Low Intensity Single Obstruction Light, ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3
