- Type:
- Aviation Obstruction Lights
- Input Voltage(V):
- 12V
- Lamp Power(W):
- 16
- Lamp Luminous Flux(lm):
- 100%
- Lamp Luminous Efficiency(lm/w):
- 120
- CRI (Ra):
- 100
- Color Temperature(CCT):
- Other
- Beam Angle(°):
- Vertical Divergence(degrees) ≥10
- IP Rating:
- IP65
- Certification:
- CE, RoHS
- Emitting Color:
- Red
- Lamp Body Material:
- Other
- Base Type:
- Other
- Light Source:
- LED
- Place of Origin:
- Guangdong, China
- Brand Name:
- Annhung
- Service life of LED:
- ≥100,000hours
- Horizontal degree:
- 360°
- Wind Speed:
- 80m/s
- Ambient temperature:
- -55℃~+70℃
- Vertical degree:
- ≥10
- Operation Mode:
- Dusk-to-Dawn operation
- International standard:
- ICAO FAA
- Overall size(mm):
- 410 by 350 by 425
- Battery type:
- Lithium ion battery
- Weight:
- 7.5Kg
- Supply Ability:
- 1000 Piece/Pieces per Month Marine Lanterns
- Packaging Details
- Plastic bag with paper carton.
- Port
- Hongkong / Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated

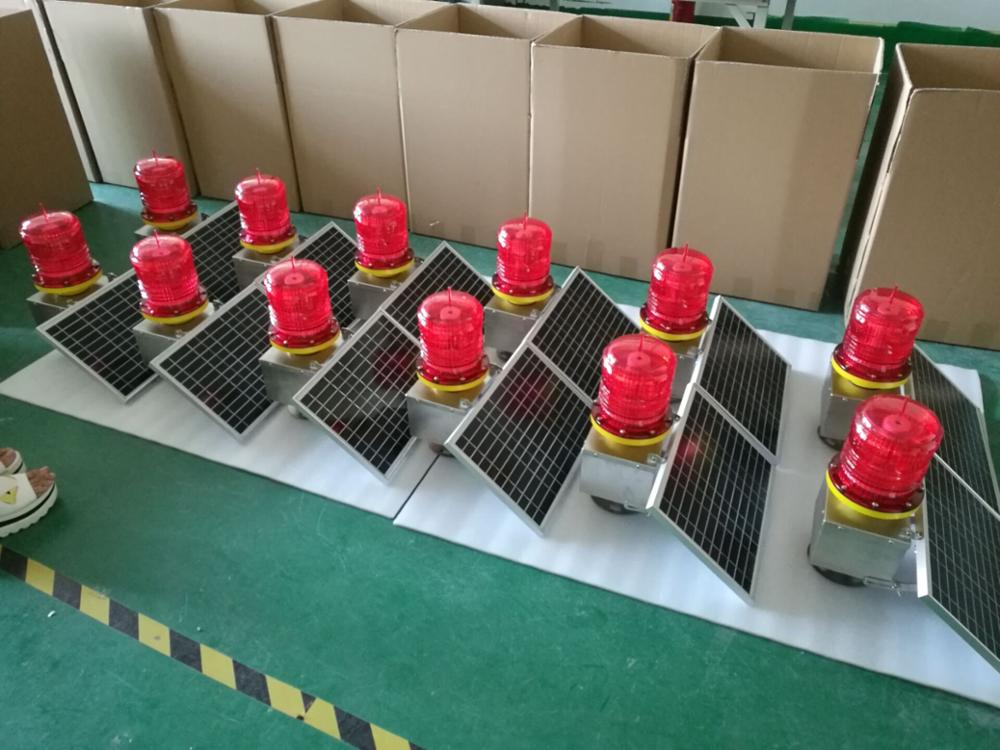

LED Low-intensity Single Solar Aviation Obstruction light
AH-LS/S is a self-contained obstruction light which consist of solar panel, battery and lamp.There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.
It is designed for marking top of obstacle that do not exceed 45 meters in height.
Produgt iimagine:
[Compliance
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low
Intensity Type A / B Obstruction Light
FAA L-810
Electrical
♥♥ LED as light source, life experience >100,000hours
Physical
♥♥With bird needle to prevent bird drop
♥♥ UV & vibrations protected polycarbonate lens for converging light
♥♥Stainless steel 304 base, light fastness, resist snow and rain
♥♥Mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
♥♥Solar panel angel is adjustable (Vertical 15-90° ) System design
♥♥Solar panel as photocell (Photo diode) for day & night working mode (dusk to dawn mode)
♥♥ON/OFF button make local control easy
♥♥Flashing(20fpm)/steady toggle switch under base
♥♥Main-standby mode
Optional
♥♥GSM cellphone monitoring
♥♥Infrared LED for pilot using NVG(Night Vision Goggles)
♥♥Remote control ON/OFF
Application
AH-LS/S solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter
Packaging: Plastic bag with Paper carton .
Delivery: In 2-30 days after payment.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing date.
2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
