Scope of Application

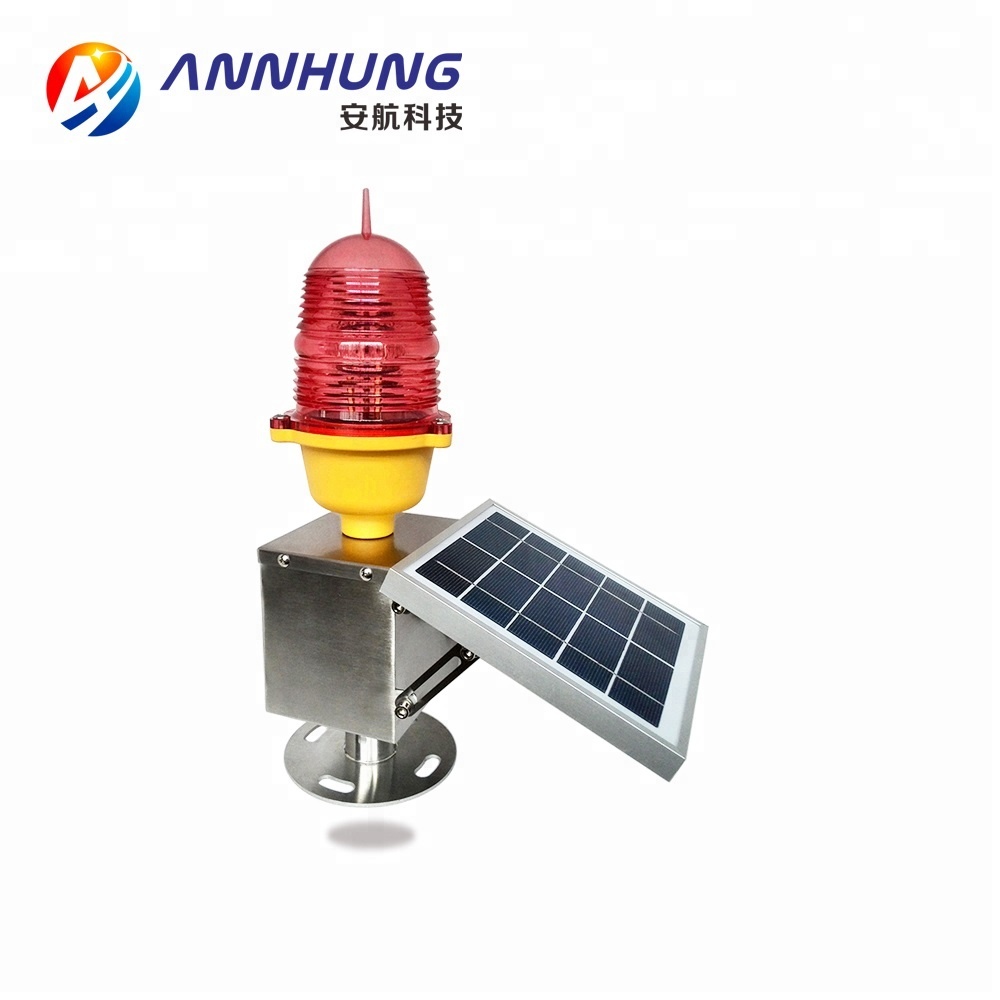

AH-LS-A Low-intensity Solar-Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High
Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Main Parameter
| Description | Parameter |
| Mode | AH-LS-A |
| Light intensity | ≥ 32.5cd |
| Working mode | Steady-burning mode or Flash mode(20-60times/minute) |
| Light source | LED,100,000hours service life |
| Operating voltage | DC12V(Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Material | |
| Housing | Polycarbonate |
| Base | SUS304 stainless steel |
| Autonomy(without sunlight) | at least 7 days(Option 20days) |
| Power Consumption | 6W |
| Overall Size(mm) | 410 by 350 by 425 |
| Installation Size(mm) | 3/4inch |
| Weight | 7Kg |
| Emitting Color | Red |
| Ambient Temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection Standard | IP65 |
Function
AH-LS-A Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.
Advantages
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International advanced solar panel reaching at least 10 years service life.
4. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
9. At least 7 days autonomy (optional 15days)
10. Movable Panel for being convenient for customer choosing angle.
11. 3/4 inches installation way especially for tower or flag-pole installation way.
Compliance
Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3
