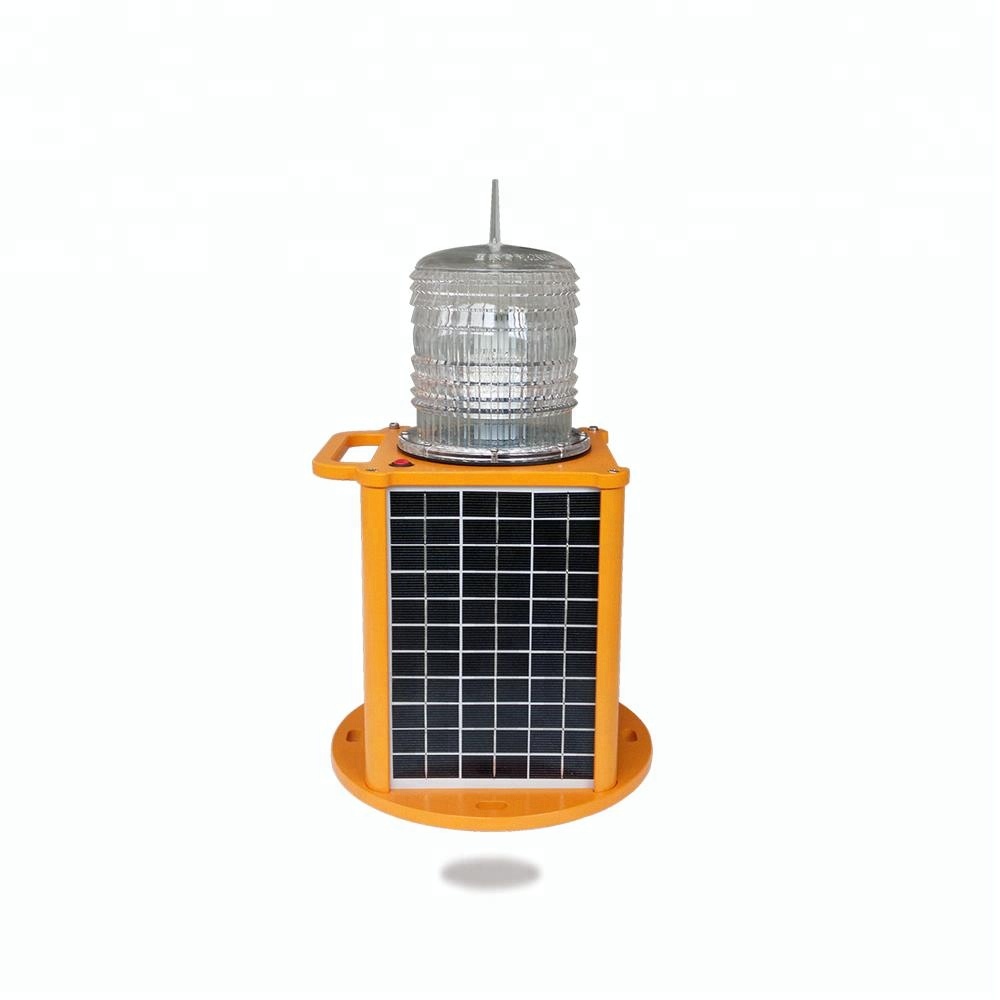

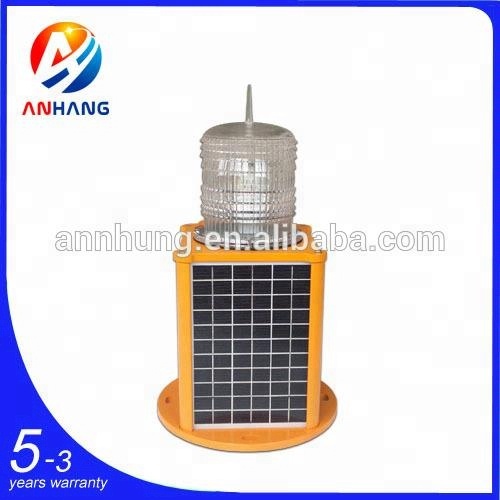

AH-LS/C-6 LED Solar Powered Red Green White Yellow Marine Navigation Lantern with 256 Light Characters

Click on the image to view the original image

Product：	views：6AH-LS/C-6 LED Solar Powered Red Green White Yellow Marine Navigation Lantern with 256 Light Characters
Branch：	Annhung
Type：	Aviation Obstruction Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:10

Product Details

Overview

Quick Details

Type:: Aviation Obstruction Lights

Input Voltage(V):: DC12V(Solar Powered Way)

Lamp Power(W):: 3

Lamp Luminous Flux(lm):: 1cd(1NM),5cd(2NM),15cd (3NM), 35cd (4NM), 75cd (5NM)

Lamp Luminous Efficiency(lm/w):: 120

CRI (Ra):: 100%

Color Temperature(CCT):: Red, Green, Yellow (Amber), Blue or White

Beam Angle(°):: 360 Horizontal Beam Angle

IP Rating:: IP68

Certification:: CE, RoHS

Emitting Color:: Red, Red, Green, Yellow (Amber), Blue or White

Lamp Body Material:: Aluminum Alloy

Base Type:: Other

Light Source:: LED

Place of Origin:: Guangdong, China

Brand Name:: Annhung

Model Number:: AH-LS/C-6

Light Intensity:: 15cd (3NM), 35cd (4NM), 75cd (5NM), 150cd (6NM)

Overall Size:: 260 by 260 by 440

Vertical degree:: >9°

Light Source Service Life:: ≥ 100,000hours

Ambient Temperature:: -55℃~+60℃

Products name:: LED Solar Powered Marine Lanterns

Standard:: IALA

Optional:: Adjustable 256 light characters

Control Way:: photocell. Light can work at night automatically by photocell.

Supply Ability

Supply Ability:: 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: paper carton 1 piece/box
3-15 days

Port: HongKong,Shenzhen

Lead Time:: Shipped in 15 days after payment

Specification

LED Solar Powered Marine Lanterns

Solar powered marine navigation lantern,

solar marine lantern,

self contained marine lantern, IALA.

Applications

AH-LS/C navigation light applying to ocean buoy, river buoy, aquaculture, offshore oil platform, port or other fixing and floating aids to naviation.

Product Description

Advantages

1.Up to 6 Nautical Miles (Tc =0.74)
2.Based on LED technology and its color comply to IALA Recommendations E-200-1.
3.Bird spike against bird drop.
4.Comprehensive protection in short-voltage,over-voltage,floating charge and temperature.
5.International-advanced cold and special LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6.Strong corrosion resistance,Rain and Snow,Shock and Vibrations protection and UV protection.
7.Clean, renewable, green and reliable energy source.
8.Dusk-to-dawn operation: photocell. Light can work at night automatically by photocell.
9.At least 5 days autonomy without sunshine (Option 20days).
10.Recyclable batteries with the lightest environmental.
11.IP68 protection standard, Full sealing structure.

Main Parameter

Description	Parameter
Mode	AH-LS/C-6
Standard	IALA
Visible distance	Up to 6 Nautical Miles
Working mode	Flashing mode or Steady-burning mode
Light source	LED
Light intensity	15cd (3NM), 35cd (4NM), 75cd (5NM),150cd (6NM)
Vertical degree	>9°
Horizontal Degree	360°
Service life of LED	100, 000hours
Operating voltage	DC12V, recyclable batteries with the lightest environmental and long life
Battery capacity	12V
Autonomy	At least 5days (Option 20days)
Overall Size (mm)	260 by 260by 440
Installation Size	220 by 220by M10
Weight	5.8Kg
Emitting Color	Red, Green, Yellow (Amber), Blue or White
Ambient Temperature	-55℃~+60℃
Wind load	80m/s
Control Way	photocell. Light can work at night automatically by photocell.
Optional	Adjustable 256 light characters
