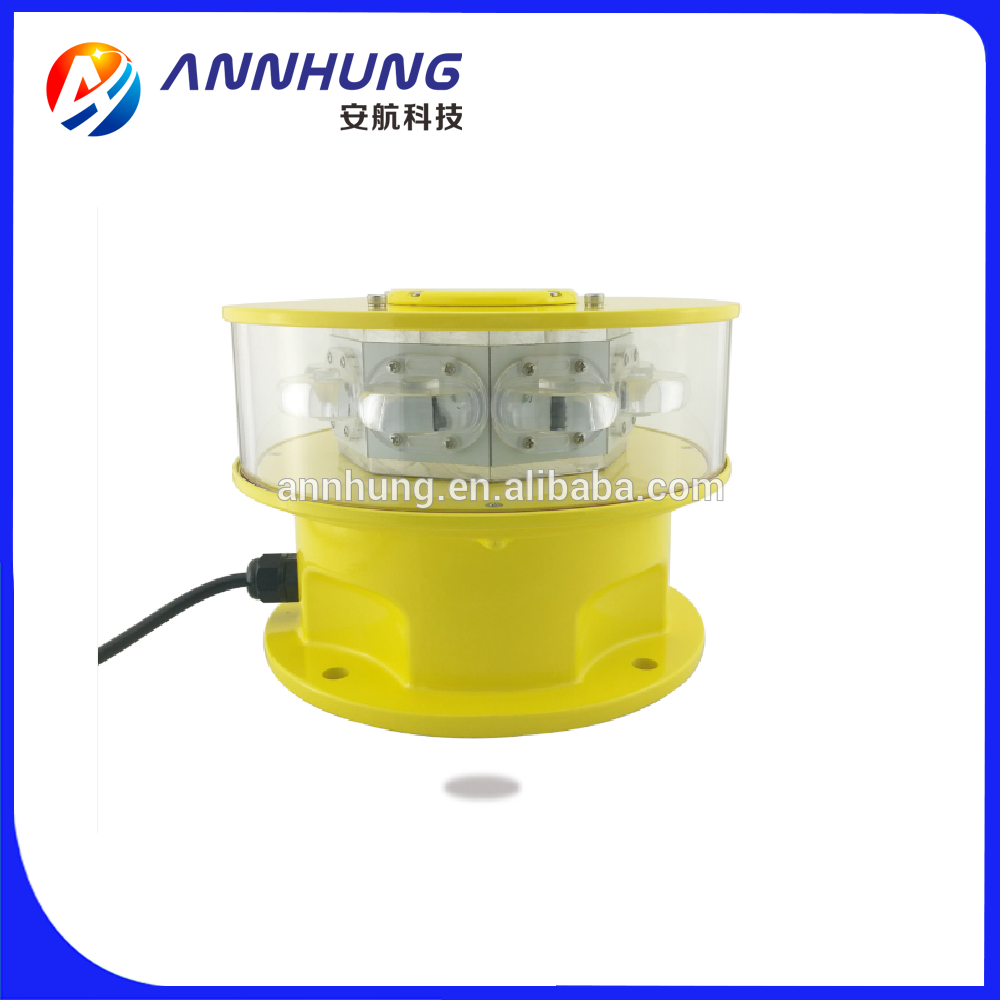

Medium-intensity Type B Aviation Obstruction Light Aviation Light
Aviation Obstruction Light
Aviation Light
Obstruction Light
Aviation Warning Light
compliant with ICAO,FAA,CAAC
Scope of Application
This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Turbine, etc whose height is between 45m and 105m.When obstacle object is higher than 105m, this series of products can be used with Medium-intensity Type A or high-intensity obstruction light to potentially hazardous obstructions to air traffic flashing red safety light.
Main Parameter
| Description | Parameter |
| Mode | AH-MI-B1 |
| Light intensity | 2,000cd ±25% |
| Flash rate | Flashing mode(20-60times/minute,ICAO standard, 20 to 40times/minute, FAA standard) |
| Light source | LED |
| Service life of LED | ≥ 100,000hours |
| Operating voltage | AC220V (option voltage,eg.AC120V,AC110V,DC48V) |
| Power consumption | 20W |
| Overall size(mm) | Φ236 by 161 |
| Installation size(mm) | Φ190 by M10 |
| Vertical degree | 3° |
| Horizontal degree | 360° |
| Material | |
| Housing | High borosilicate glass |
| Base | die casting aluminum |
| Weight | 5Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protection standard | IP68 |
Function
This product is the single light with Photocell. It can work at night automatically at night when ambient rightness is lower than 500cd/m2 and close during the day by photocell.
Advantages
1.Stand alone design with integrated photocell, power supply flasher and monitoring
2.Integrated automatic flash synchronisation beam optical design
3.high accuracy light beam optical design
4.High borosilicate glass material with good thermal stability, high transmittance.
5.Built-in circuit protect LED, extremely reliable and cost saving.
6.Shockproof and corrosion resistant. It can be used in very poor conditions.
7.LED is special red color for Aviation Obstruction Light. Typical LED lifetime is more than 100,000 hours.
8.Resistant to heavy rain or storms.
9.Free maintenance and aluminum alloy Material.
10.Five year warranty
11.low power consumption and low cost of ownership.
Compliance
Medium-intensity Type A and FAA L-864
Medium-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,"Aerodrome Design and Operations’ Forth edition July 2004,table6.3
