Overview
Quick Details
- Type:
- Aviation Obstruction Lights
- Certification:
- CE
- Place of Origin:
- China
- Brand Name:
- ANNHUNG
- Diameter:
- 600mm
- Fastener:
- Aluminum material
- Sphere thickness:
- 2. 3mm
Supply Ability
- Supply Ability:
- 1000 Piece/Pieces per Month
Packaging & Delivery

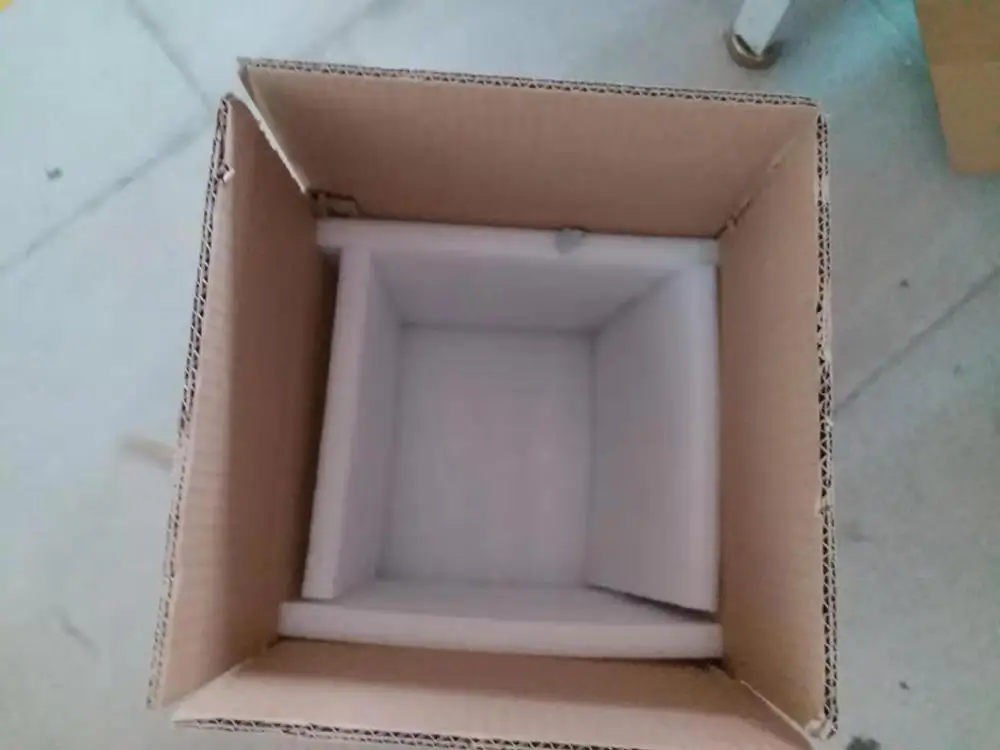

- Packaging Details
- one piece six sodes build in foam carton
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated
Product Description
Products' usage
AH-AWS Aircraft Warning Sphere Designed to use for high-rise transmission lines, eg.110KV, 220KV, 500KV,
Transmission cables, river-crossing transmission lines to provide the warning marks. Keep the airplanes safe.
Transmission cables, river-crossing transmission lines to provide the warning marks. Keep the airplanes safe.
Products Description
Techonologied parameter:
Features
Diameter of Aircraft Warning Sphere: θ600mm (Other diameter is available if request)
Color: Bright Orange , Red or White
Diameter of Aircraft Warning Sphere: θ600mm (Other diameter is available if request)
Color: Bright Orange , Red or White
Material: Fiber glass reinforced polyester resin
Character of fiber glass:
Tensile strength≥128Mpa
Bending strength≥230Mpa
Temperature resistant: -40℃~+90℃
Fastener: Aluminum material, M10 by 35, M10 by 40
There are rainwater drainage holes on sphere avoid the water stay inside the ball
The uniformity of the sphere thickness make sure it’s table under aeolian vibration
Weight of Sphere: 6. 3Kg
Armor rod: aluminium alloy, 800mm
Material of bolts nuts & washer: stainless steel
Sphere thickness: 2. 3mm
Conductor size: 10mm- 35mm(others are customized)
Character of fiber glass:
Tensile strength≥128Mpa
Bending strength≥230Mpa
Temperature resistant: -40℃~+90℃
Fastener: Aluminum material, M10 by 35, M10 by 40
There are rainwater drainage holes on sphere avoid the water stay inside the ball
The uniformity of the sphere thickness make sure it’s table under aeolian vibration
Weight of Sphere: 6. 3Kg
Armor rod: aluminium alloy, 800mm
Material of bolts nuts & washer: stainless steel
Sphere thickness: 2. 3mm
Conductor size: 10mm- 35mm(others are customized)
