Overview
Quick Details
- Place of Origin:
- Taiwan, China
- Brand Name:
- Antron
- Model Number:
- EMAC1150S50D6.4
- Output Power:
- 50W
- Output Type:
- Single
- Input Voltage:
- 120-277V
- Output Voltage:
- 26-43V
- Output Frequency:
- N/A
- Output Current:
- 1150mA
- Product Series:
- Emergency LED Driver
- Warranty:
- 5 Years
- Dimming:
- 3 in 1 dimming (PWM, 1-10V, Rx)
- Emergency Backup Mode:
- At least 90 Minutes
- Certification:
- UL, cUL, Class 2, Class P
- Feature:
- Emergency DC Backup with AC LED Driver
- Case Code:
- AM178
- K1:
- Field installation UL Listed 10W Emergency LED Drivers
- K2:
- Split Led Lighting Emergency Power Supply
- K3:
- Emergecny kit 10w with 50w internal driver
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 5 to 40 pieces per carton depends on model.
Individual packing is optional.
- Port
- Kaohsiung port, Taiwan / Shenzhen port, China

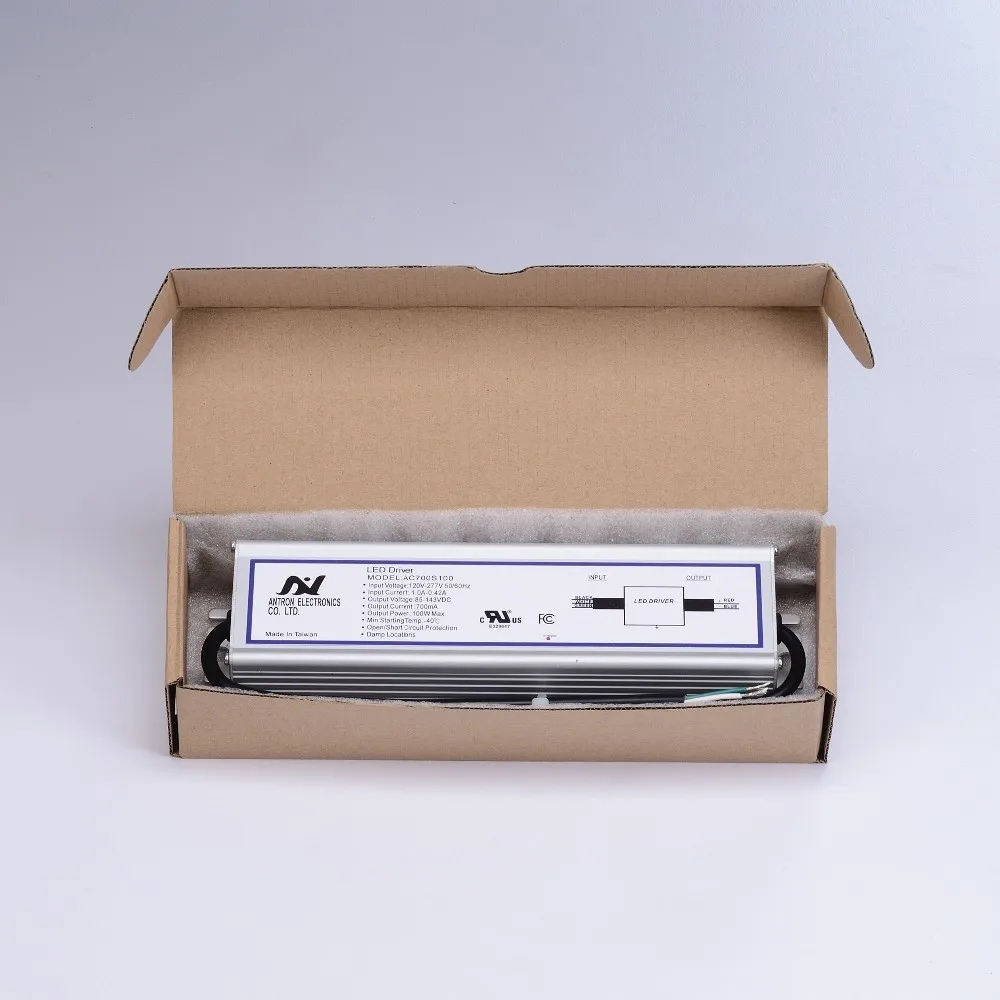

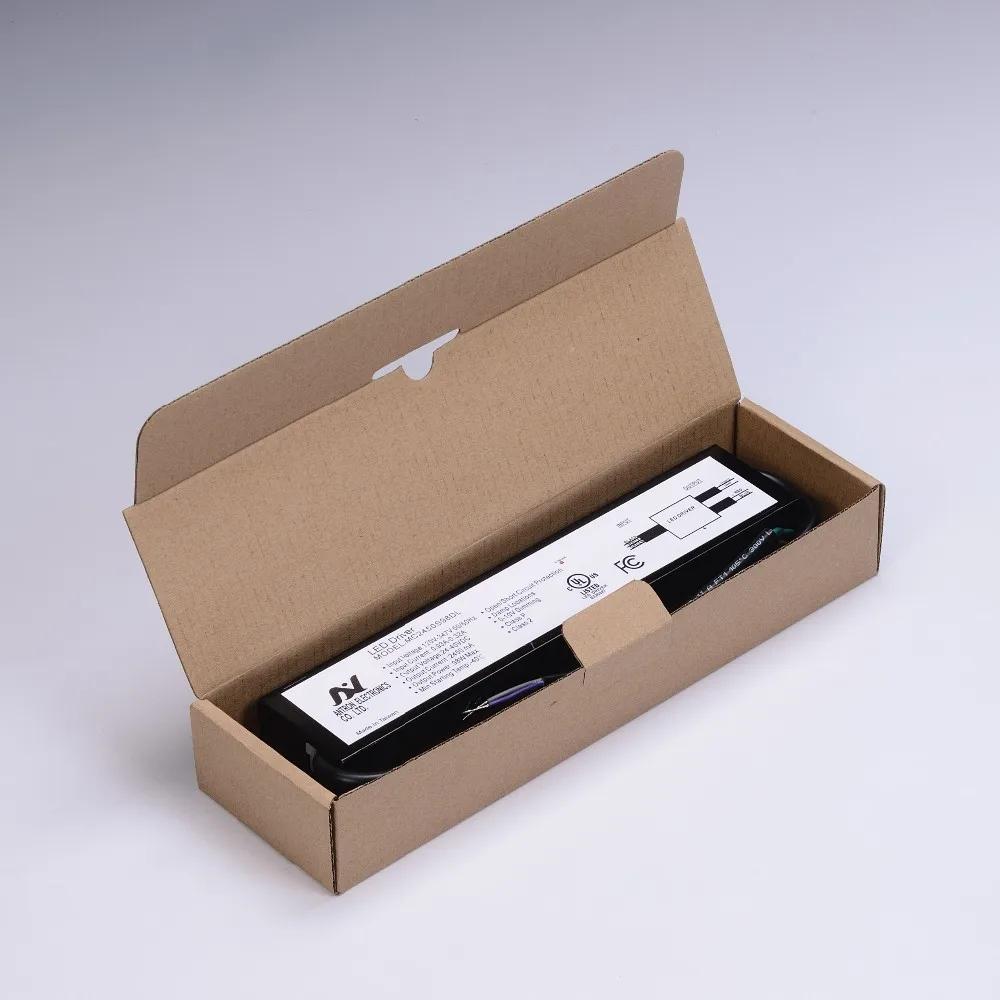

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 2000 2001 - 5000 >5000 Est. Time(days) 7 30 45 To be negotiated
Product Features
- Universal input voltage 120-277Vac
- At least 90 minutes in emergency mode
- All-in-One solution available (Driver/Inverter/Battery)
- High quality LiFePO4 battery inside
- Easy diagnose design via test switch
- Open/Short/Over-Voltage/Over-Temperature protection
- Suitable for UL dry and damp location
- UL listed certified
- 5 years warranty
Electrical Spec
Model Series | EMAC1150S50D6.4 | ||
AC Input | Input Voltage | 120-277Vac | |
Input Frequency | 60Hz | ||
Leakage Current | <0.75mA | ||
Turn On Time | <1s | ||
Inrush Current | <35A | ||
Power Factor | >0.9 | ||
THD | <20% | ||
DC Output | Output Current | 1.15A | |
Output Voltage | 26-43V | ||
Output Power | 40W | ||
Output Current Tolerance | ±5% | ||
Output Current Ripple | <10% | ||
Efficiency @Highest Vin | 84% | ||
Emergency | Output Current | 0.19A | |
Output Voltage | 15-55V | ||
Output Power | 10W | ||
Battery | LiFePO4 | ||
Battery Charge Current | 0.185A | ||
Battery Voltage | 6.4V | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over-Voltage | Output current decade mode, recovers automatically after fault condition is removed. | ||
Over-Temperature | Shut down o/p voltage, re-power on to recover. | ||
Surge | 3kV | ||
Environment | Operation Temperature | Tcase=0°C~80°C | |
Storage Temperature | Tcase=0°C~80°C | ||
Humidity | 10%~90% | ||
Safety | Safety Approval | UL8750, UL1310, UL924 | |
UL/cUL Class 2 | V | ||
UL/cUL Class P | V | ||
Withstand Voltage | I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD | ||
Noise | Sound Rating Class A | ||
EMC | EMI | FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4 | |
EMS | FCC Part 15 class A, UL 8750, ICES-005 Issue 4 | ||
All-in-One Series
Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Emergency Output Power | Emergency Output Current | Emergency Output Voltage |
EMAC1050S40D6.4 | 120-277Vac | 40W | 1050mA | 22-38V | 10W | 190mA | 15-55V |
EMAC1150S50D6.4 | 120-277Vac | 50W | 1150mA | 26-43V | 10W | 190mA | 15-55V |
EMAC1500S60D6.4 | 120-277Vac | 60W | 1500mA | 24-40V | 10W | 190mA | 15-55V |
Note: The output current can be customized in factory
Mechanical Spec
Model Series | Case Code | L | W | H | Unit |
EMAC1500S60D6.4 | AM178 | 261 | 61 | 37 | mm |
