Our LED drivers and ballasts are highly reliable with overall return rate below 0.3%. Antron promise we can return two placements for one fail with the new order. We are confident our products is reliable and you can enjoy the high quality of powered by Antron.
Note:
1. The policy is exclusive for Alibaba customers.
2. OEM/ODM is not applicable.
Overview
Quick Details
- Place of Origin:
- Taiwan, China
- Brand Name:
- Antron
- Model Number:
- P3C3100S130D
- Output Power:
- 130W
- Output Type:
- Single
- Input Voltage:
- 347V
- Output Frequency:
- N/A
- Output Current:
- 2500-3100mA
- Product Series:
- Programmable LED Driver
- Warranty:
- 5 Years
- Dimming Ability:
- Dim to cool, Dim to OFF, Dim to 1%
- Type:
- Constant Current
- Certification:
- UL, cUL, Title 24
- Feature:
- Programming output current and dimming speed
- Case Code:
- AM102
- K1:
- 28v led driver up to 42v
- K2:
- driver for led panel
- K3:
- 90w led driver to 130w
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 5 to 40 pieces per carton depends on model.
Individual packing is optional.
- Port
- Kaohsiung port, Taiwan / Shenzhen port, China

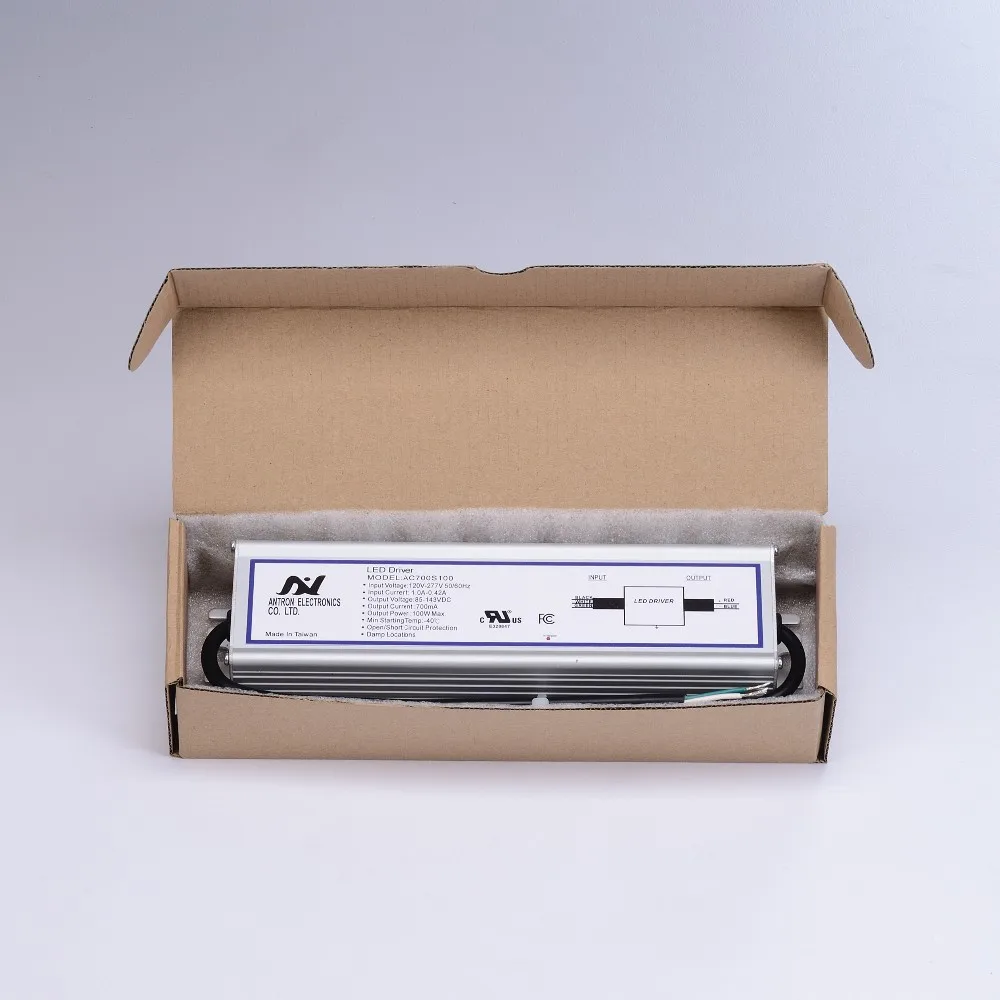

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 2000 2001 - 5000 >5000 Est. Time(days) 7 30 45 To be negotiated
Product Features
- Universal input voltage 347Vac
- PFC, Flicker Free and Isolated design
- Programming output current step with 50mA precision via cellphone or wand
- 3-in-1 dimming (PWM/1-10V/Resistor)
- Dimming speed programmable available
- Program with Dim to cool, Dim to OFF and Dim to 1% options
- Open/Short/Over-Voltage/Over-Temperature protection
- Suitable for UL dry and damp location
- 5 years warranty
Electrical Spec
Model Series | P3C3100S130D | ||
AC Input | Input Voltage | 347 Vac | |
Input Frequency | 60Hz | ||
Leakage Current | <0.75mA | ||
Turn On Time | <1s | ||
Inrush Current | <40A | ||
Power Factor | >0.9 | ||
THD | <20% | ||
DC Output | Output Current | 2.5-3.1A | |
Output Voltage | 25-42V | ||
Output Power | 130W | ||
Output Current Tolerance | <5% | ||
Output Current Ripple | <10% | ||
Efficiency @Highest Vin | 87% | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over-Voltage | Output current decade mode, recovers automatically after fault condition is removed. | ||
Over-Temperature | Shut down o/p voltage, re-power on to recover. | ||
Surge | 3kV | ||
Environment | Operation Temperature | Tcase 0°C~90°C | |
Storage Temperature | Tcase -40°C~90°C | ||
Humidity | 10%~90% | ||
Safety | Safety Approval | UL8750 UL1310 | |
UL/cUL Class 2 | - | ||
Withstand Voltage | I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD | ||
Noise | Sound Rating Class A | ||
EMC | EMI | FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4 | |
EMS | FCC Part 15 class A, UL 8750, ICES-005 Issue 4 | ||
NFC Programmable Series Overview (25W-60W)
Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Efficiency |
PAC1250S25DL | 120-277Vac | 25W | 350-1250mA | 15-55V | 80% |
PAC1250S30DL | 120-277Vac | 30W | 350-1250mA | 15-55V | 85% |
PAC1400S40DL | 120-277Vac | 40W | 400-1400mA | 15-55V | 85% |
PAC1400S50DL | 120-277Vac | 50W | 400-1400mA | 15-55V | 85% |
PAC1400S60DL | 120-277Vac | 60W | 700-1400mA | 27-55V | 87% |
P3C1250S25DL | 347Vac | 25W | 350-1250mA | 15-55V | 80% |
P3C1250S30DL | 347Vac | 30W | 350-1250mA | 15-55V | 85% |
P3C1400S40DL | 347Vac | 40W | 400-1400mA | 15-55V | 85% |
P3C1400S50DL | 347Vac | 50W | 400-1400mA | 15-55V | 85% |
P3C1400S60DL | 347Vac | 60W | 700-1400mA | 27-55V | 87% |
Note: The output current can be customized in factory
NFC Programmable Series Overview (80W-149W)
Model Name | Input Voltage | Output Power | Output Current | Output Voltage | Efficiency |
PAC2100S80DL | 120-277Vac | 80W | 1050-2100mA | 27-55V | 87% |
PAC2750S98DL | 120-277Vac | 98W | 1400-2750mA | 27-55V | 87% |
PAC1200S110D | 120-277Vac | 110W | 600-1200mA | 62-122V | 87% |
PAC3100S130D | 120-277Vac | 130W | 2500-3100mA | 25-42V | 87% |
PAC3300S149D | 120-277Vac | 149W | 1400-3300mA | 30-45V | 87% |
P3C2100S80DL | 347Vac | 80W | 1050-2100mA | 27-55V | 87% |
P3C2750S98DL | 347Vac | 98W | 1400-2750mA | 27-55V | 87% |
P3C1200S110D | 347Vac | 110W | 600-1200mA | 62-122V | 87% |
P3C3100S130D | 347Vac | 130W | 2500-3100mA | 25-42V | 87% |
P3C3300S149D | 347Vac | 149W | 1400-3300mA | 30-45V | 87% |
Note: The output current can be customized in factory
Mechanical Spec
Model Series | Case Code | L | W | H | Unit |
P3C3100S130D | AM102 | 174 | 91 | 44 | mm |
Packing & Delivery
Packing Information
5 to 40 pieces per carton depends on model.
Individual packing is optional.
Our Company
Why Choose Antron
Excellent Quality
Flicker Free LED Driver
Most modern light sources include an element of flicker, which can have serious health implications for all living things, and LED light sources are certainly no exception. Therefore, Antron provide full series of LED drivers with flicker free feature which ripple current is less than 10%. We believe this driver solution can highly improve the value of your products.
Full Range of Input Voltage
Antron's power supplies can be used anywhere in the world without adjusting a select switch for the input power. These power supplies are designed to accommodate a wide range of ac sources while supplying the same output.
We provide LED driver solution with worldwide input voltage on 120-277V, 120-347V, 347V and 347-480V which can help your lighting product to explore the global market without any obstacles.
We provide LED driver solution with worldwide input voltage on 120-277V, 120-347V, 347V and 347-480V which can help your lighting product to explore the global market without any obstacles.
We can do more.
In addition to our current products, Antron specializes in adapting our products to meet individual specifications that represented by the rapid mass market. If our existing products assortment does not meet your exact needs, we can quickly and economically modify, adapt and design.
Certifications
FAQ
Why should I choose Antron?
We are a professional LED driver manufacturer with more than 32 years experience. We have an experienced R&D team, high-quality production line, mature QC control process. Quality, Service and Innovation are the core value of Antron.
We are actively looking for long term partner and welcome you to join us.
What is your minimum order quantity (MOQ)?
There is no minimum order restriction.
What is your lead time?
The delivery time will be 1~45 days depends on the product and quantity.
Can we be your distributor?
We are very welcome you can become our family.
Can you provide OEM/ODM service?
OEM and ODM are welcome.
We have a strong R&D team can quickly design and modify what you need.
