Home > Products > Taiwan Direct 200W led driver Driver UL FCC
Taiwan Direct 200W led driver Driver UL FCC
Click on the image to view the original image
Product: views:7Taiwan Direct 200W led driver Driver UL FCC
Branch: Antron
Type: Constant Voltage
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 00:16
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
Antron
Model Number:
AM168
Output Power:
200W
Output Type:
Single
Input Voltage:
120-277V, 347V
Output Frequency:
N/A
Output Current:
0.42-8.3V
Product Series:
Linear LED Drivers
Warranty:
5 Years
Dimming:
3 in 1 dimming (PWM, 1-10V, Rx)
Dimming ability:
Dimming down to 1%
Type:
Constant Voltage
Protection:
Short Circuit, Over Voltage, Over Temp
Feature:
Output current adjust via resistor orpotentiometer
Keyword1:
24w 36w 48w led driver module constant volatage
Keyword2:
led lighting power supply 120v 220v 277v 347v
Keyword3:
Taiwan direct top brand led bulb driver
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10-20 pieces per carton.
Individual packing is optional.
Port
Kaohsiung port, Taiwan / Shenzhen port, China

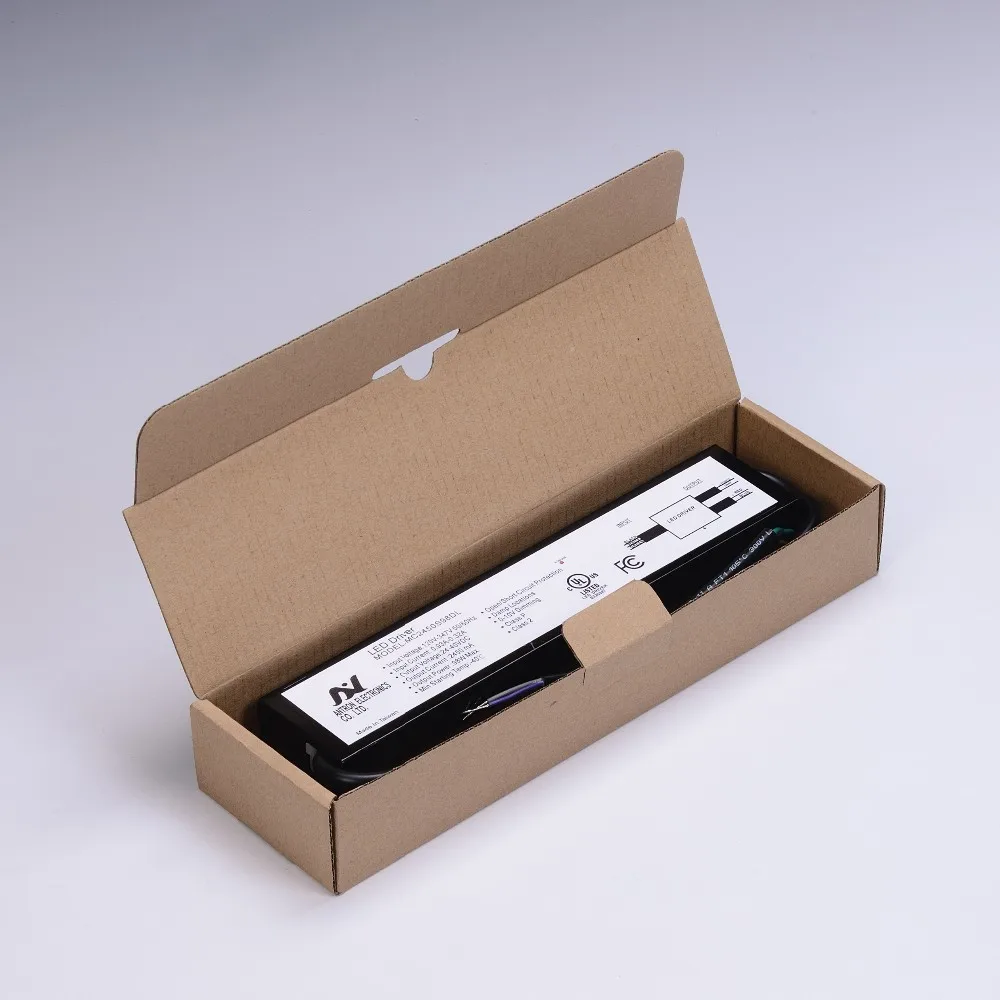

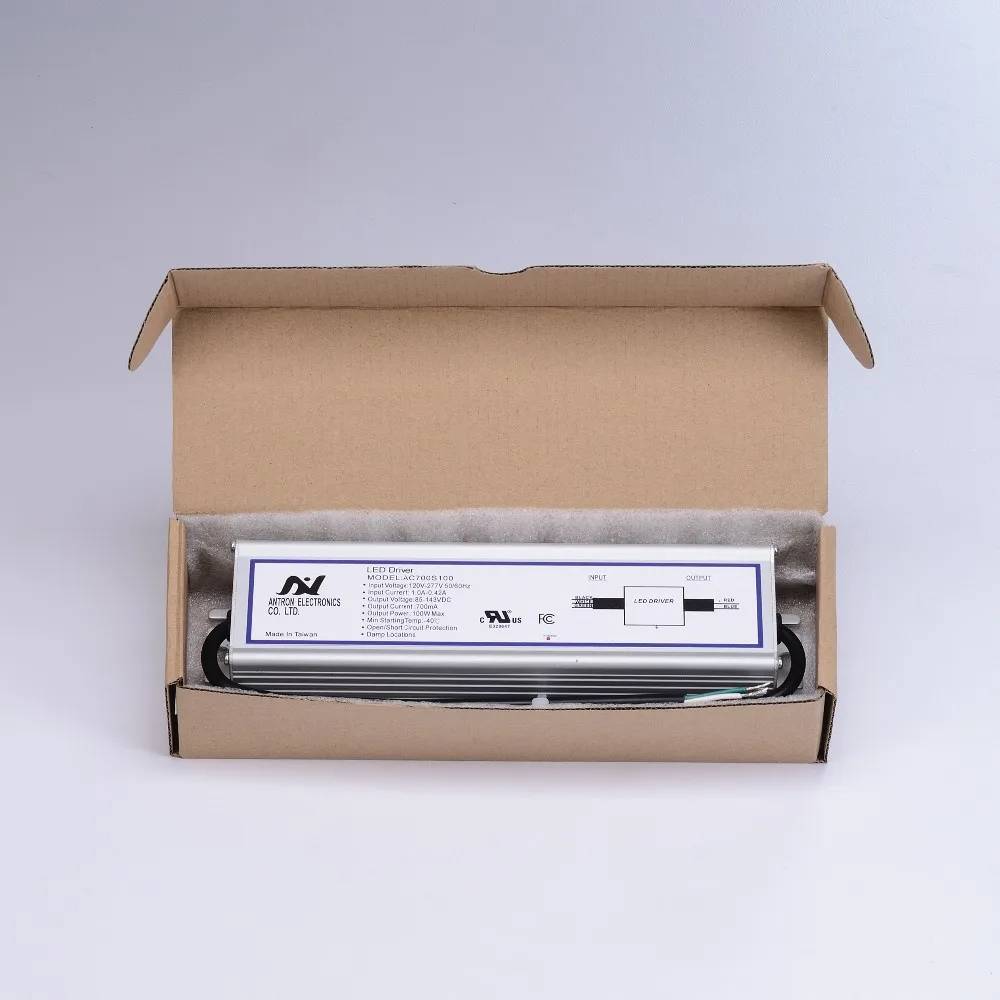

Picture Example:
package-img
package-img
Lead Time:
Quantity(Pieces)1 - 56 - 20002001 - 5000 >5000
Est. Time(days)73045To be negotiated
Product Features

- Universal input voltage 120-277 and 347 Vac
- Flicker Free, PFC and Isolated design
- Adjust output current with two options via resistor or potentiometer
- High efficiency up to 90%
- 3-in-1 dimming (PWM/1-10V/Resistor)

- Dimming down to 1%
- Open/Short/Over-Voltage/Over-Temperature protection

- Suitable for UL dry and damp location

- 5 years warranty

Electrical Spec
Model Series
SIN-200W






AC Input
Input Voltage
120-277 Vac
347 Vac
Input Frequency
60Hz
Leakage Current
<0.75mA
Turn On Time
<1s
Inrush Current
<35A
Power Factor
>0.9
THD
<20%




DC Output
Output Current
8.3-4.16A
Output Voltage
24V, 36V, 48V
Output Power
200W
Output Current Tolerance
±5%
Output Current Ripple
<5%
Efficiency
@Highest Vin
90%



Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over-Voltage
Output current decade mode, recovers automatically after fault condition is removed.
Over-Temperature
Shut down o/p voltage, re-power on to recover.
Surge
4kV


Environment
Operation Temperature
Tcase
-40°C~90°C
Storage Temperature
Tcase
-40°C~90°C
Humidity
 10%~90%






Safety
Safety Approval
UL8750
UL1310
UL/cUL Class 2
V
UL/cUL Class P

UL/cUL Type HL
V
CE
V
Withstand Voltage
I/P-O/P: 2.0K Vac, I/P-FG: 2.0K Vac, O/P-FG: 0.5K Vac
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG:100Mohm/500VD
Noise
Sound Rating Class A

EMC
EMI
FCC Part 15 class A, UL8750, CSA C22.2 No. 250.13-14, ICES-005 Issue 4
EMS
FCC Part 15 class A, UL 8750, ICES-005 Issue 4
Mechanical Spec
Model Series
Case Code
L
W
H
Unit
SIN-200W
AM168
241
68
40.5
mm
Packing & Delivery

Packing Information

10-20 pieces per carton.
Individual packing is optional.

Our Company
Our Service

We can do more.

In addition to our current products, Antron specializes in adapting our products to meet individual specifications that represented by the rapid mass market. If our existing products assortment does not  meet your exact needs, we can quickly and economically modify, adapt and design.

Certifications
FAQ

Why should I choose Antron?

We are a professional LED driver manufacturer with more than 32 years experience. We have an experienced R&D team, high-quality production line, mature QC control process. Quality, Service and Innovation are the core value of Antron.


We are actively looking for long term partner and welcome you to join us.

What is your minimum order quantity (MOQ)?

There is no minimum order restriction.

What is your lead time?

The delivery time will be 1~45 days depends on the product and quantity.

Can we be your distributor?

We are very welcome you can become our family.

Can you provide OEM/ODM service?

OEM and ODM are welcome.

We have a strong R&D team can quickly design and modify what you need.
