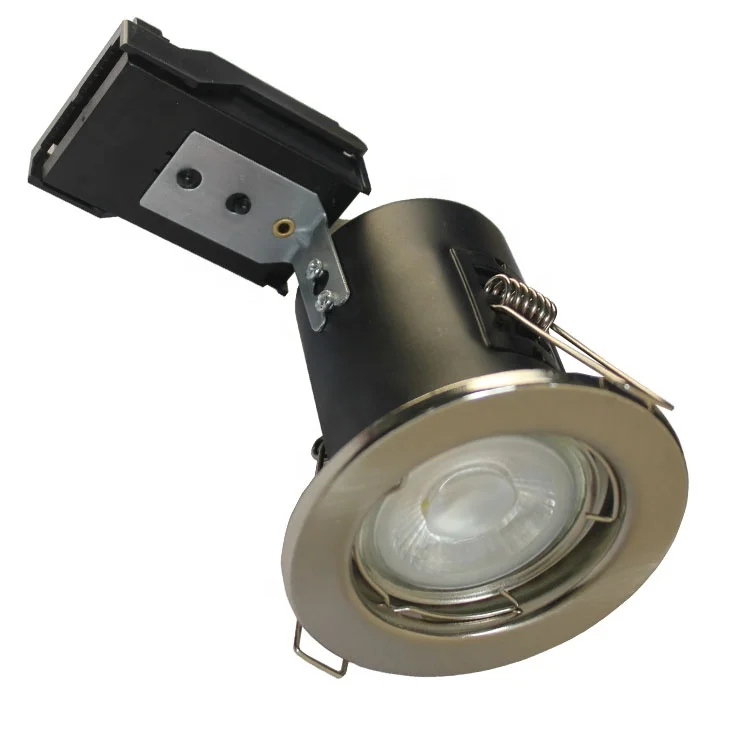

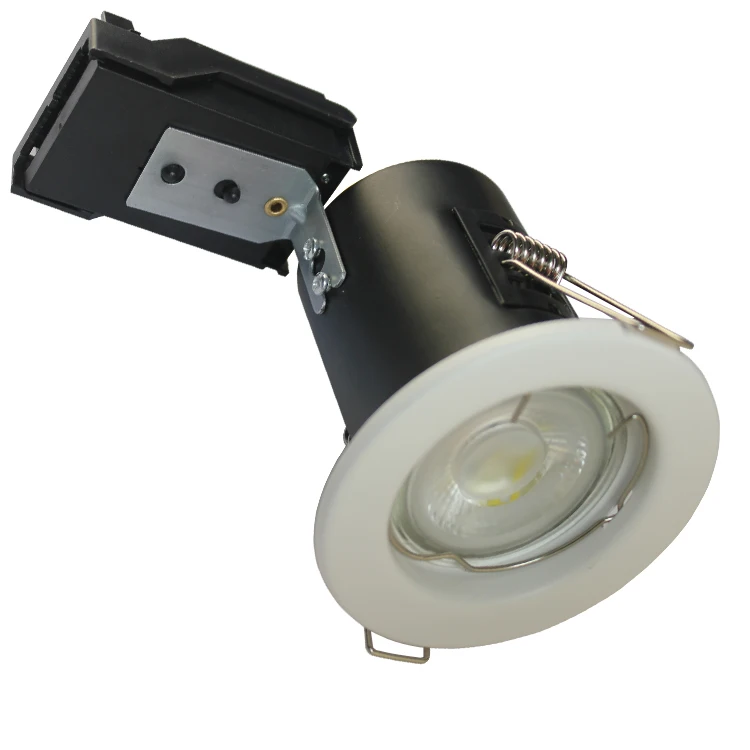

Metal IP20 Fixed gu10 Fire-rated downlight

Click on the image to view the original image

Product：	views：3Metal IP20 Fixed gu10 Fire-rated downlight
Branch：	TUOHUI
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 18:04

Product Details

Overview

Quick Details

Input Voltage(V):: 230Vac

Lamp Luminous Flux(lm):: 500

CRI (Ra>):: 100

Working Lifetime(Hour):: 5000

Place of Origin:: Guangdong, China

Brand Name:: TUOHUI

Switch Type:: Touch On/Off Switch

Teflong insulated lampholder:: Optimise performance against heat

Large termination block with cable clamp:: easy for the cables loop in and loop out

Shallow depthof 100mm:: Suitable for installation into very smallceilling voids

Shape:: Round

Light Source:: Halogen, Halogen Bulbs

Model Number:: Metal Fire rated downlights

Color:: Chrome

Item Type:: Downlights

Certification:: ce, EMC, LVD, RoHS

Color Temperature(CCT):: Warm White

Lamp Body Material:: Iron

Shade Type:: Clear Glass

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pcs in one box 50pcs in one carton

Port: Guangdong

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 3000	>3000
Est. Time(days)	30	To be negotiated

Specifications

Model	Version	Material	Max Watt	Cap Type	Size	Cutout	IP	Class	Finish
AF201P	Fixed	Steel	50	GU10/MR16	80mm*100mm	65	20	II	White/chrome/satin nicek/gold/antique/matt chrome
AF202P	Tilted	Steel	50	GU10/MR16	83mm*110mm	65	20	II
AF203PIP65	IP65	Steel	50	GU10/MR16	85mm*110mm	70	65	I
AF201D	Fixed	Die-casting	50	GU10/MR16	92mm*110mm	75	20	I
AF202D	Tilted	Die-casting	50	GU10/MR16	100mm*110mm	85	20	I
AF203DIP65	IP65	Die-casting	50	GU10/MR16	85mm*110mm	70	65	I

Complies with BS EN60598,BS5250 BS476 PART20, 21,23
Suitable for mounting on normally flammable.

Minimum distance from illminated object is 0.5 meter.

Mounting: Recessed

Main Material: Steel or Die-casting

Installation Accessories: Single action spring

Application :

1. Commercial using: Office buildings, Factory, Hotel, Supermarket, Hospital, Restaurant, Exhibition, Advertising board, Show room, Jewelry shop, Amusement park, theater lighting , meeting room Etc.

2. Home using: Living room, Bathroom, Bedroom, Villa, Gym, hallway
