Overview
Quick Details
- Input Voltage(V):
- 230
- Lamp Luminous Flux(lm):
- 600
- CRI (Ra>):
- 100
- Working Lifetime(Hour):
- 3000
- Place of Origin:
- Hong Kong S.A.R.
- Brand Name:
- ART LED
- Install Style:
- Downlights
- Switch Type:
- Touch On/Off Switch
- Teflong insulated lampholder:
- Optimise performance against heat
- Large termination block with cable clamp:
- easy for the cables loop in and loop out
- Shallow depthof 100mm:
- Suitable for installation into very smallceilling voids
- Light Source:
- Halogen, Halogen Bulbs
- IP:
- IP65
- Load:
- 50w halogen or 5w LED GU10 lamp
- Fire rated:
- 30, 60, 90min.
- Item Type:
- Downlights
- Certification:
- ce, EMC, Energy Star, LVD, RoHS
- Color Temperature(CCT):
- Warm White
- Lamp Body Material:
- Aluminum Alloy
- Shade Type:
- Temper Glass
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 1pcs in one box 50pcs in one carton
- Port
- Guangdong

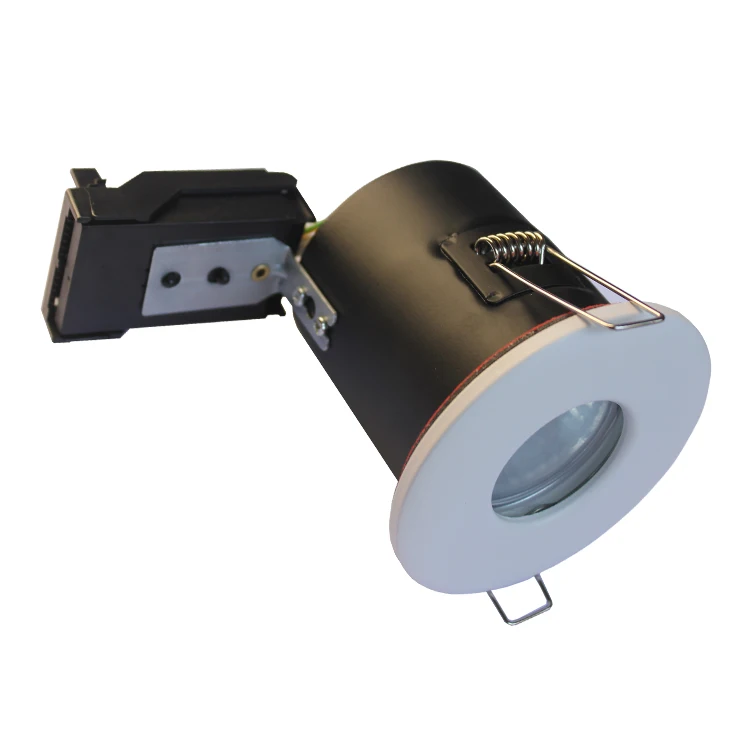

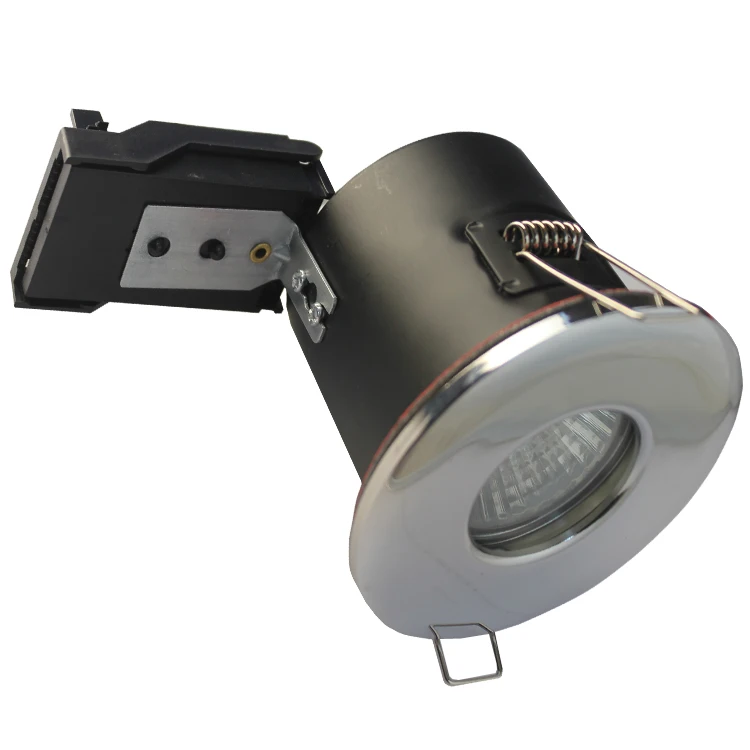

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 35 To be negotiated
Specifications
| Model | Version | Material | Max Watt | Cap Type | Size | Cutout | IP | Class | Finish |
| AF201P | Fixed | Steel | 50 | GU10/MR16 | 80mm*100mm | 65 | 20 | II | White/chrome/satin nicek/gold/antique/matt chrome |
| AF202P | Tilted | Steel | 50 | GU10/MR16 | 83mm*110mm | 65 | 20 | II | |
| AF203PIP65 | IP65 | Steel | 50 | GU10/MR16 | 85mm*135mm | 70 | 65 | I | |
| AF201D | Fixed | Die-casting | 50 | GU10/MR16 | 92mm*125mm | 75 | 20 | I | |
| AF202D | Tilted | Die-casting | 50 | GU10/MR16 | 103mm*125mm | 85 | 20 | I | |
| AF203DIP65 | IP65 | Die-casting | 50 | GU10/MR16 | 85mm*135mm | 70 | 65 | I |
Complies with BS EN60598,BS5250 BS476 PART20, 21,23
Suitable for mounting on normally flammable.
Minimum distance from illminated object is 0.5 meter.
Mounting: Recessed
Main Material: Steel or Die-casting
Installation Accessories: Single action spring
Side holes are more helpful for cut down LED GU10 lamp temperature, extend the led lamp lifespan
Application :
1. Commercial using: Office buildings, Factory, Hotel, Supermarket, Hospital, Restaurant, Exhibition, Advertising board, Show room, Jewelry shop, Amusement park, theater lighting , meeting room Etc.
2. Home using: Living room, Bathroom, Bedroom, Villa, Gym, hallway
More photos
