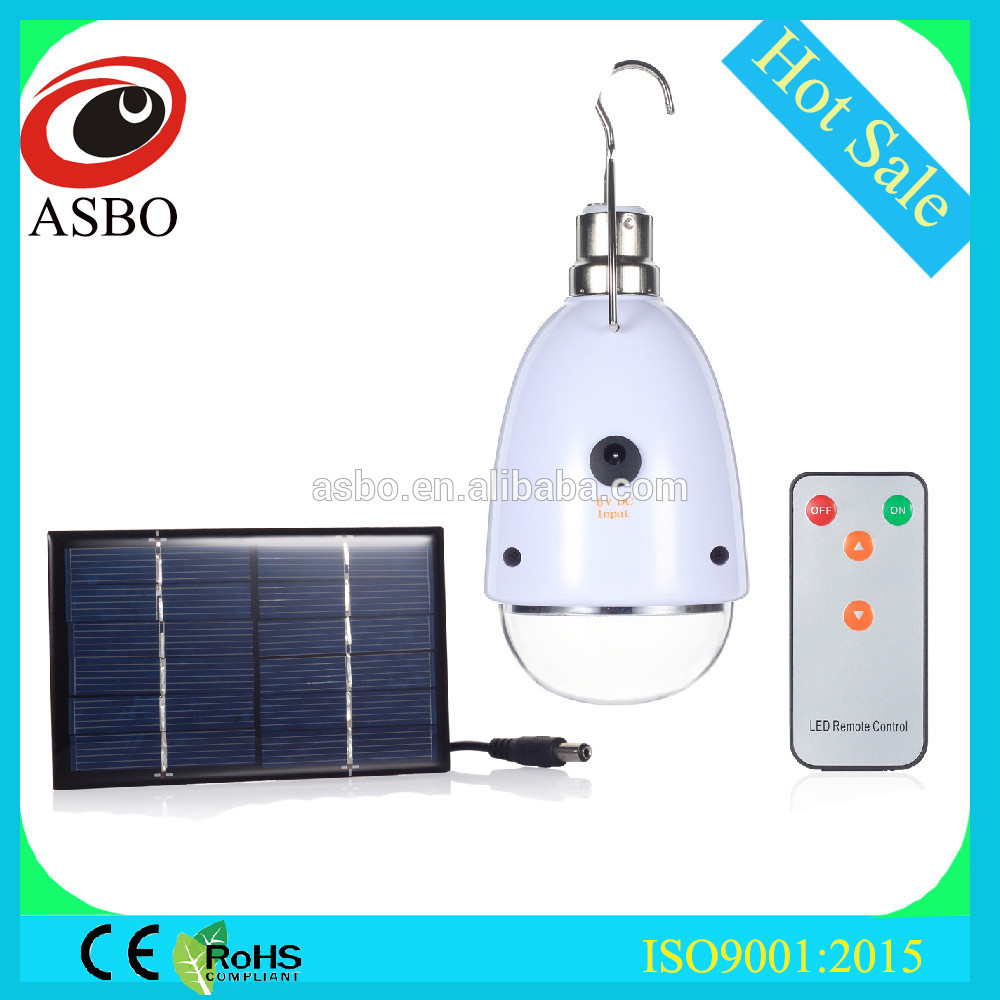

Portable Home Use Kit Solar Energy LED Lighting
Brief Introduction:
*An emergency lamp suitable for using in the power outage situation, or in the remote areas etc.
*High brightness, suitable for the reading, studying, or lighting indoor etc;
*When there is no solar, it can be charge by AC, when there is no AC, it can be charged by solar;
*Works on its own battery when power cuts off.
General Specification:
*Solar Panel:2.0W/6V monocrystalline solar panel with 2m cable;
*Internal battery: Rechargeable 4V 800mAh Lead-acid batteries or 3.7V 1200mAh/2000mAh Li-ion battery;
*Can charge mobile phones, mp3,mp4 etc 5V Mini USB output to charge. Include USB rechargebable cable;
*Fully charging: About 6-7hours;
*Lighting time:
a. 1W/h with 80Lm lighting ,more than 9 hours
b. 2W/h with 160Lm lighting ,more than 8 hours
c. 3W/h with 240Lm lighting ,more than 7 hours
Detail description:
ITEM NO | Solar panel 2.0W/6V |
MONO or POLY | MONO |
Maximum power (Wp) | 2.0wp |
Maximum power voltage(V) | 6 |
Maximum power current(A) | 0.34 |
Open circuit voltage (V) | 21 |
Short circuit current(A) | 0.16 |
Number of cells (Pcs) | 12 |
Size of module (mm) | 195* 192 |
Maximum system voltage(V) | 7.15 |
Temperature coefficients of Isc(%) | 0.065+/-0.015%/°C |
Temperature coefficients of Voc(%) | -(2.23+/-0.1)mv/°C |
Temperature coefficients of Pm(%) | -(0.5+-0.05)/°C |
Temperature coefficients of Im(%) | +0.1/°C |
Temperature coefficients of Vm(%) | -0.38/°C |
Temperature Range | -40/°C~+85/°C |
Tolerance Wattage (e.g. +/-5%) | +/-5% |
Allowable Hail Load | steel ball fall down from 1m height |
Weight per piece (kg) | 0.2kg |
Surface Maximum Load Capacity | 60m/s (200kg/sq.m) |
Cell Efficiency (%) | > 16% |
Output tolerance (%) | +/-5% |
Standard Test Conditions | AM1.5 100mw/cm² 25°C |
FF (%) | 80% |
Warranty | 2 years product warranty and 25
years 80% of power |
Solar Panel Parameter Sheet
| Model: Portable Home Use Kit Solar Energy LED Lighting | ||
| No | Index | Parameter |
1 | Power Applied | DC/AC |
| 2 | AC | 220V/50-60HZ |
| 3 | Maximun AC power | 2.3W/1.7W |
| 4 | Battery Capacity A | 800MAH Lead-acid Battery |
| 5 | Lighting time with DC Volts A | 2.5-3 Hours |
| 6 | Battery Capacity B | 2000MAH Lithium Battery |
| 7 | Lighting time with DC Volts B | 6-7 Hours |
| 8 | DC Recharge Current | 175-185MA |
| 9 | AC Recharge time | 8-12Hours |
| 10 | Working Temperature | -30℃ to 50℃ |
| 11 | LED Life Time | 50,000 Hours |
| 12 | Bead type | High power 1W /SMD5050/SMD3528 beads |
| 13 | Bead quantity | 1/5/22 pieces |
| 14 | Lamp holder | B22/E27/DC Lamp holder |
| 15 | Shell material | ABS+PS |
| 16 | Colour Temperature | 5700-6500K Cool white |
| 17 | Lead-acid battery life time | 250 Charge-Discharge Time |
| 18 | Lithium battery life time | 500 Charge-Discharge Time |
LED Lamp Parameter Sheet
Portable Home Use Kit Solar Energy LED Lighting
Advantages:
*An independent movable lighting system with inbuilt battery of high capacity and long life, convenient to use as home lighting, camping lighting and outdoor actitivities.
*The lamp with 300 lumen equivalent to 30W electric incandescent lamp or 15W Energy saving lamp.
*Also as a movable power supply to charge for all kinds of mobiles etc.
*It is light, modern, environment friendly and low-cost.

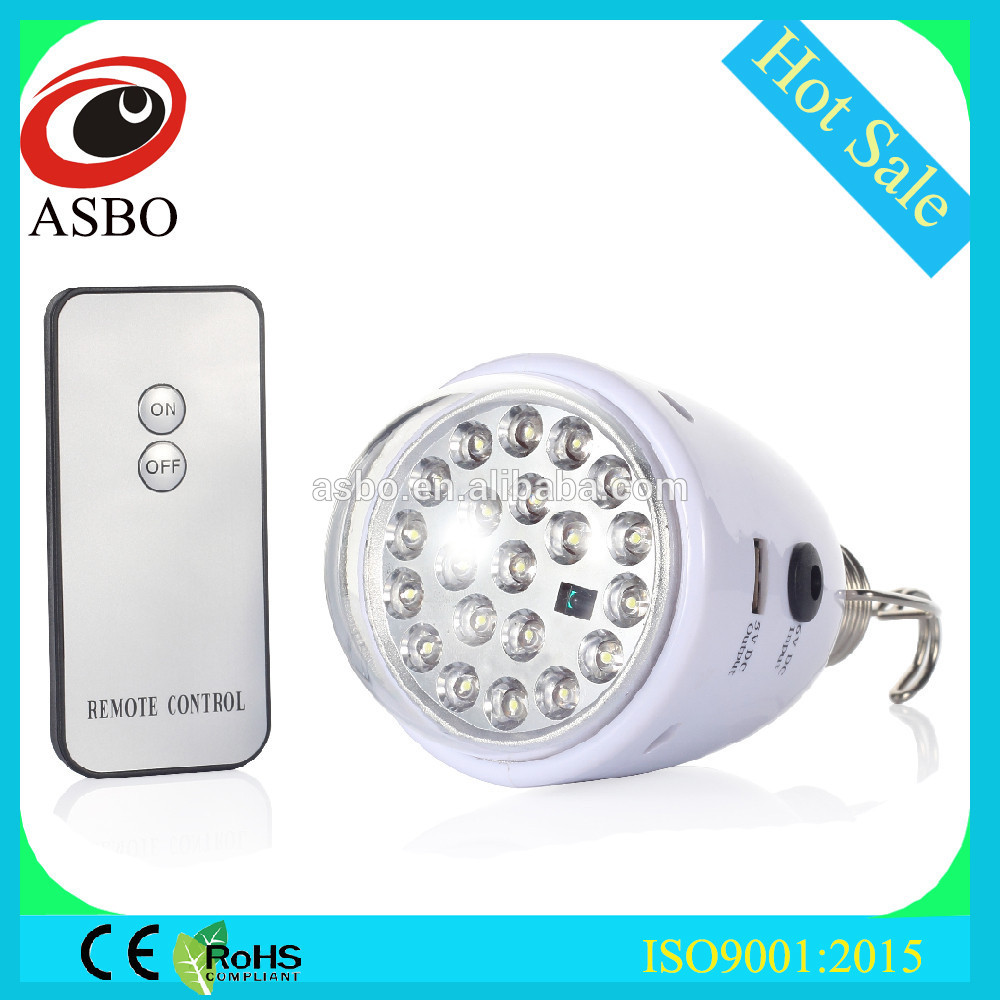

Portable Home Use Kit Solar Energy LED Lighting
More photos:
Portable Home Use Kit Solar Energy LED Lighting
Portable Home Use Kit Solar Energy LED Lighting
Portable Home Use Kit Solar Energy LED Lighting
Portable Home Use Kit Solar Energy LED Lighting
Color Box Packaging
Carton Packaging
Pallet Packaging
Packaging Information:
| Product name: Portable Home Use Kit Solar Energy LED Lighting | |
| Unit size: | 80*80*137mm; |
| Color box size: | 83*83*140mm; |
| Carton size: | 445*356*584mm; |
| Quantity per Carton: | 80pcs; |
| Gross weight: | 24.7kg; |
| Net weight: | 23.8kg; |
| Package type: | Color box, or customized; |
| Lamp head: | B22 or E27; |
