Click on the image to view the original image
- Place of Origin:
- China
- Brand Name:
- Asenware
- Model Number:
- AW-GEC2169
- Product name:
- Fire Suppression Contol Panel
- Model:
- AW-GEC2169
- Usage:
- Fire Fighting
- AC input:
- 220VAC 50Hz
- Voltage for MCU:
- 5V for power board MCU, 3.3V for other MCU
- Batteries:
- Two 12V/ 2.3AH maintenance-free lead-acid batteries series connection
- Temperature range:
- -5 to 40°C (23~104°F)
- Humidity:
- 5 to 95% RH, non-condensing
- Dimension:
- (L)350*(W)280*(T)112.5mm
- Packing size:
- (L)375*(W)305*(H)130mm
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- By carton
- Port
- ZHONGSHAN PORT
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 20 To be negotiated
Overview

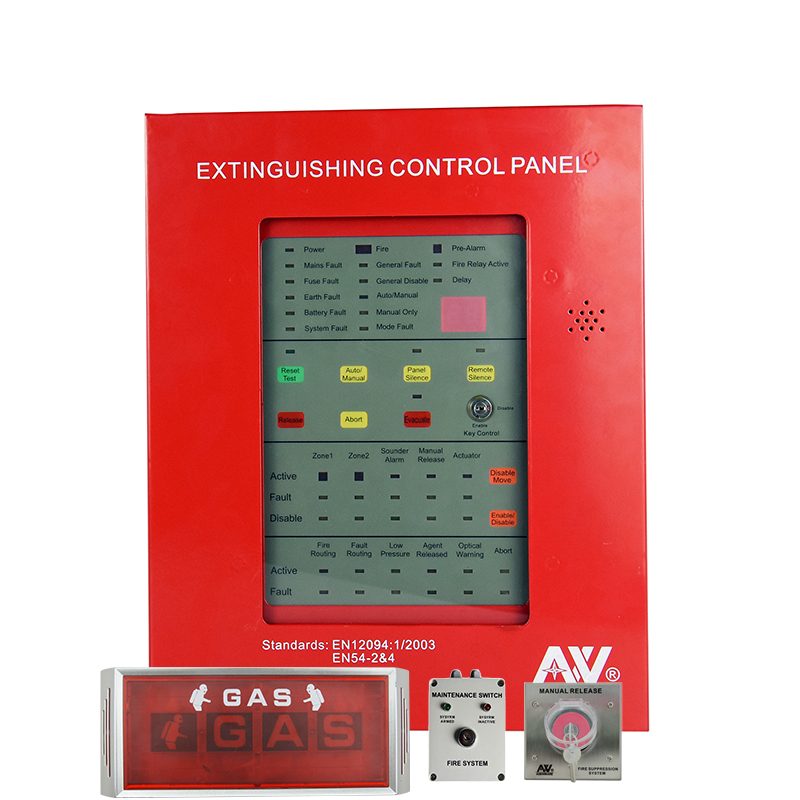

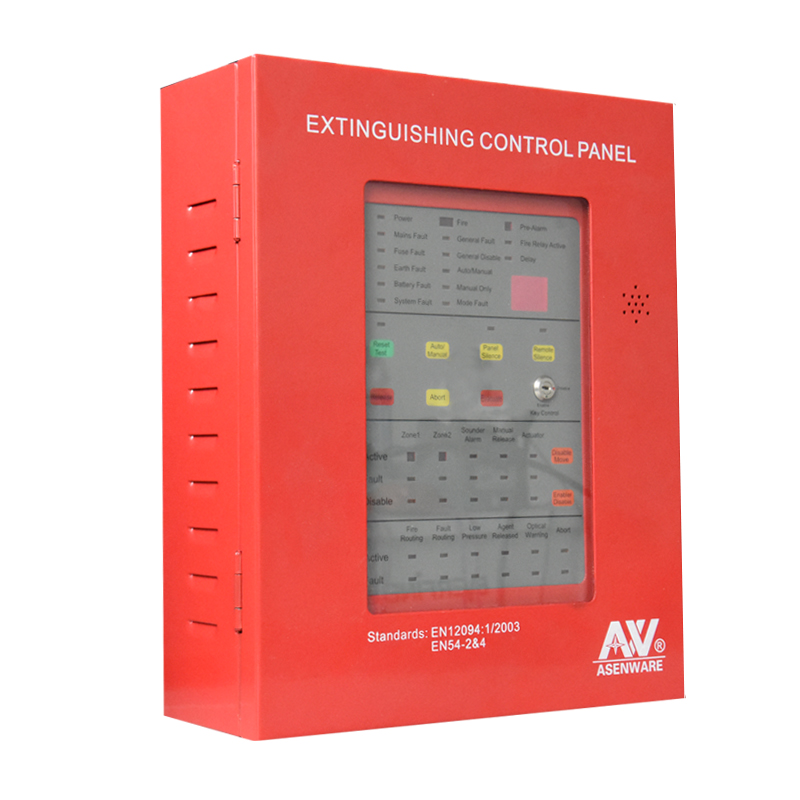

AW-GEC2169 extinguishing control panel is designed in compliance with the requirements of European standards of EN54-2, EN54-4 and EN12094-1. This panel can be used in FM200, CO2, IG541, Novec1230 and other gas fire extinguishing systems.
Executed clause of standards
1.EN54-2 Fire detection and fire alarm systemspart 2: control and indicating equipment
2.EN54-4 Fire detection and fire alarm systemspart 4: power supply equipment
3.EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems - Part 1: Requirements and test methods for electrical automatic control and delay devices
Installation
1. The panel shall be mounted on a dry, flat wall, maintained at sight height to ensure external chassis balance. The panel should be fixed by 3 pcs of M6mm screws properly.
2. The panel should not be installed in a sealed environment or near an over heat source. Suitable insulated cables should be used in the corresponding position. If additional cable entry points are required, all chips and debris generated by drilling must be removed before the panel is energized.
3. Preparation: ensure that the installation site is free of construction dust, debris, extreme temperature ranges and humidity.
4. The ground wire shall connect to the AC power supply. We recommend using 16AWG (1.3mm2) wire to wiring.
5.Make sure the AC circuit breaker is disconnect before wiring from the AC circuit (220-240 VAC) to the power terminal.
