Click on the image to view the original image
- Place of Origin:
- China
- Brand Name:
- Asenware
- Model Number:
- AW-STD606A
- Product name:
- Standalone Heat Alarm Detector
- Color:
- White
- Usage:
- Detect Smoke
- Diameter:
- 126.7mm
- Alarm sound:
- 85dB Sounder
- Height:
- 54.5mm
- Working Voltage:
- 3V DC
- Installation:
- Celling Mounted
- Battery life:
- 1-3 Years
- Application:
- Commercial Area
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- By carton
- Port
- ZhongShan
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 30 To be negotiated

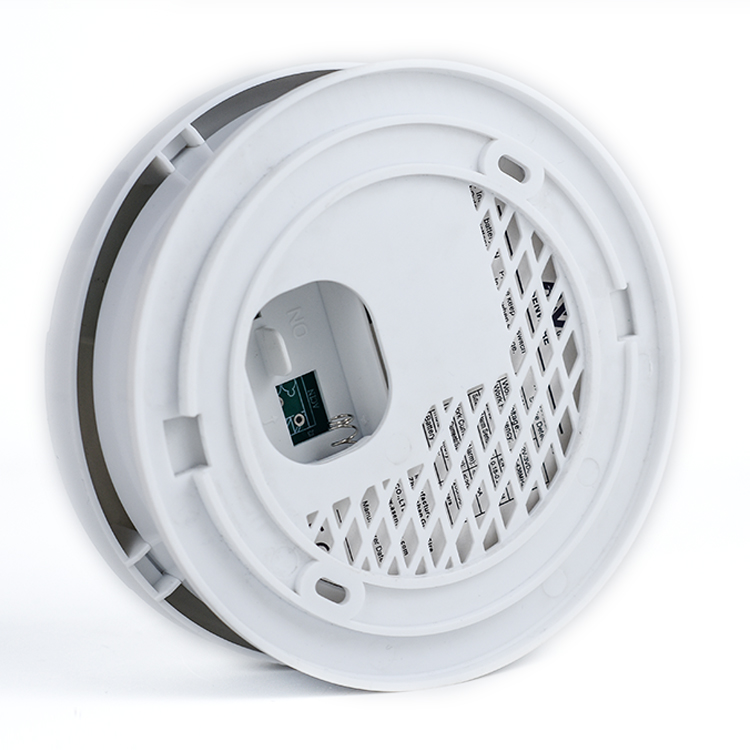

AW-STD606A Wireless Heat detector
The detector is a photodetector that uses the most advanced optical sensing chamber.
The detector is designed to provide open area protection and can be used with the AW-FP100 Series Addressable Fire Alarm Panel.
It has a wireless network alarm function; it can form a wireless LAN alarm system through the host; wireless
connection, no wiring, easy installation and construction.
>>Specifications<<
※Working power : A -CR17335/17450 lithium manganese batteryB- 2* AA alkaline battery
※Current :≤8µA@3VDC
※Maximum Alarm Current (LED on) :≤100mA@3VDC
※Operating Humidity Range : ≤95%RH(40°C±2°C) Relative
Humidity, Non-condensing
※Operating Temperature Range : -10°C to 50°C
(14°F to 122°F)
※Wireless working frequency band : 428-438MHZ
※Wireless transmit power : +20DB
※Alarm level : ≥85db /3m
※Height : 54.5mm installed in Base
※Diameter : 126.7 mm
>>Installation<<
A. Write the probe address through the programming address interface.
B. Switch to IN position(If using an externally mounted AA battery, pull the power switch to OUT).
>>About us<<
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and gas suppression system.
>>Factory<<
>>Exhibition<<
Thailand Exhibition
Philippine Exhibition
* Over 10 years" experience.
* Prompt response.
* OEM & ODM is available.
* Support factory inspection.
* Standard quality control system.
* Different choices of payment and delivery.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better production control.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
AW-SSD606A
Addressable standalone smoke detector
AW-FP100
AW-FP300
Please feel free to contact me for more details!
Contact: Rella Liang
Whatsapp/wechat/Tel: 0086 13670150613
Email: sales15 "@" asenware.com
