Asenware EN54 standard digital wireless smoke detector for shopping mall
Click on the image to view the original image
Product： views：5Asenware EN54 standard digital wireless smoke detector for shopping mall
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
China
Brand Name:
Asenware
Model Number:
AW-SSD606A
Product name:
Standalone Smoke Alarm Detector
Color:
White
Usage:
Detect Smoke
Diameter:
126.7mm
Alarm sound:
85dB Sounder
Height:
54.5mm
Feature:
2 Wire Conventional
Working Voltage:
3V DC
Installation:
Celling Mounted
Battery life:
1-3 Years
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
By carton
Port
ZhongShan
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 100 >100
Est. Time(days)30To be negotiated
Product Overviews

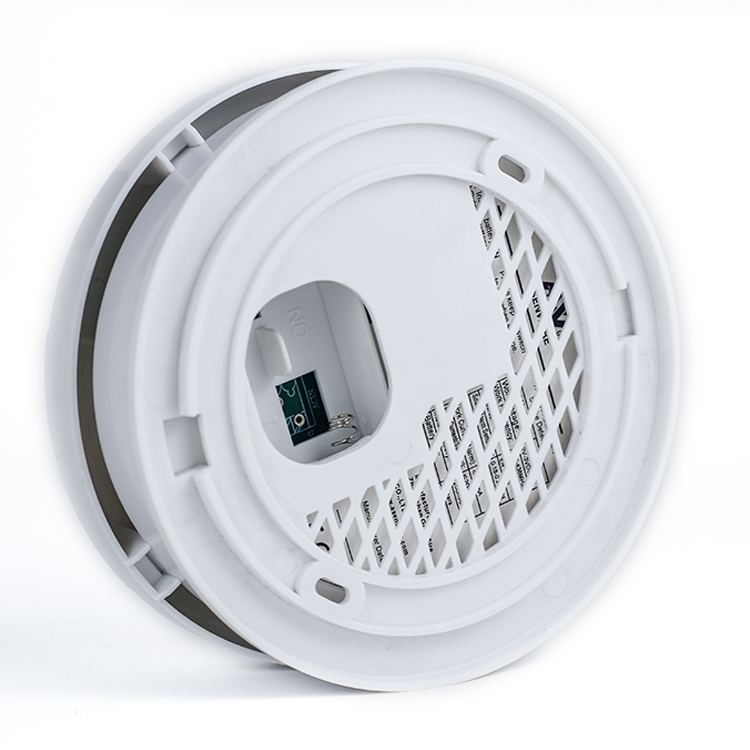

AW-SSD606A Battery smoke detector

The detector is a photodetector that uses the most advanced optical sensing chamber.

The detector is designed to provide open area protection and can be used with the AW-FP100 Series Addressable Fire Alarm Panel.

It has a wireless network alarm function; it can form a wireless LAN alarm system through the host; wireless
connection, no wiring, easy installation and construction.

>>Specifications<<

※Working power : A -CR17335/17450 lithium manganese                                  batteryB- 2* AA alkaline battery
※Current :≤8µA@3VDC
※Maximum Alarm Current (LED on) :≤100mA@3VDC
※Operating Humidity Range : ≤95%RH(40°C±2°C) Relative
                                                  Humidity, Non-condensing
※Operating Temperature Range : -10°C to 50°C
                                                         (14°F to 122°F)

※Wireless working frequency band : 428-438MHZ
※Wireless transmit power : +20DB

※Alarm level : ≥85db /3m
※Height : 54.5mm installed in Base

※Diameter : 126.7 mm

>>Installation<<

INSTALL THE DETECTOR BASE
A. Open area smoke or heat detectors are intendedfor mounting on a ceiling or a wall in accordance with the fire           standard in your country.
B. Attach mounting base to ceiling or wall.
INSTALL THE DETECTOR HEAD
A. Align detector head alignment mark line with the base"s start alignment mark line.
B. Push the detector head into the base while turning it clockwise to secure it in place.
C. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts, etc.
D. Test the detector(s) as described in the TESTING section of this manual.
                                                                                           >>User manual<<

A. Write the probe address through the programming address interface.
B. Switch to IN position(If using an externally mounted AA battery, pull the power switch to OUT).

Packing & Delivery
Company Information

>>About us<<

ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and gas suppression system.

>>Factory<<


>>Exhibition<<

Thailand Exhibition

Philippine Exhibition

Certifications
Our Service

* Over 10 years" experience.

* Prompt response.


* OEM & ODM is available.

* Support factory inspection.

* Standard quality control system.

* Different choices of payment and delivery.




* Whole set of technical supports and with abroad projects experience.

* We are manufacturer, offer better price better production control.

* Sample order, customized order, bulk order are supported.

* Reliable after-sales service, with one year waranty.
