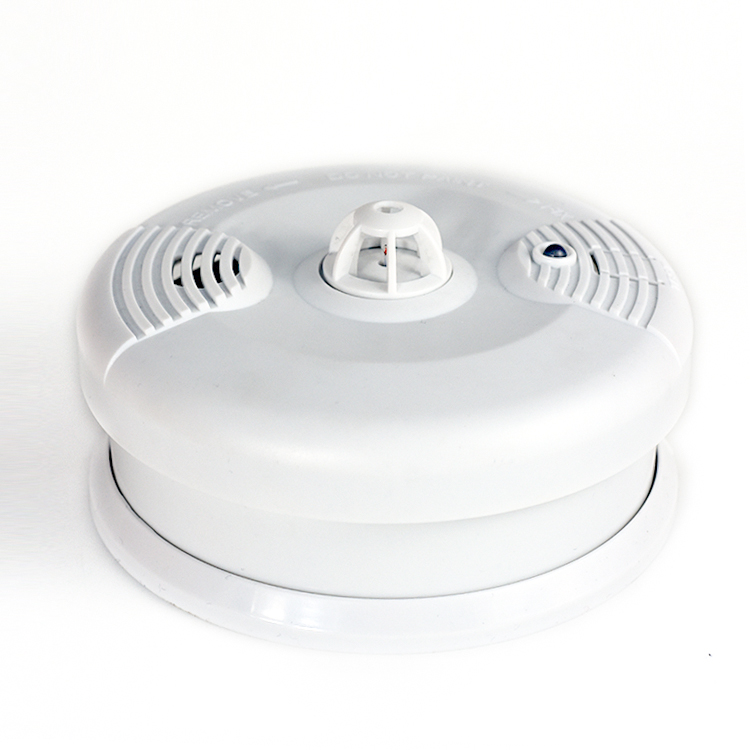

Asenware Wireless Smoke Detector with External Battery
Click on the image to view the original image
Product： views：5Asenware Wireless Smoke Detector with External Battery
Branch： Asenware
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:52
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Asenware
Model Number:
AW-SSD606D
Product name:
standalone smoke detector
Working power:
A CR17335/17450 lithium manganese batteryB 2* AA alkaline battery
Current:
≤8uA@3VDC
Maximum Alarm Current (LED on):
≤100mA@3VDC
Operating Humidity Range:
≤95%RH(40°C±2°C)
Operating Temperature Range:
-10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity:
0.18-0.26dBM
Alarm level:
≥85db
Certificate:
EN54
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton Box
Port
Zhongshan Port
Lead Time:
Quantity(Pieces)1 - 1000 >1000
Est. Time(days)7To be negotiated
Product Description

AA bi-color LED on each detector provides a local 360° visible alarm indication. They flash once every minute to indicate that power is on and the detector is working properly. The red LED flashes when the alarm occurs. When there is a fault condition indicating that the detector sensitivity is outside the listed limits or the battery is low, the yellow LED will flash. The alarm can be reset by pressing the button or when the fire alarm is not collected for a long time.


The test button is used to test whether the detector works normally; each time the buzzer is pressed, the buzzer will respond with a drop, while the yellow LED flashes; This button can be used for local silence during fire alarms;
Product Features

1.faster to test smoke

2.High DB can better inform people

3..High alarm sensitivity: test smoke within 10s

4.Design based on EN54 standards

5.Have test button: test and mute

6.Automatic reset

7.Protection without wiring, easy to install


8. Have internal and external battery for options

Technical Parameters
Working power
A CR17335/17450 lithium manganese batteryB 2* AA alkaline battery
Current
≤8µA@3VDC
Maximum Alarm Current (LED on)
≤100mA@3VDC
Operating Humidity Range
≤95%RH(40°C±2°C)
Operating Temperature Range
-10°C to 50°C (14°F to 122°F)
Smoke Alarm Sensitivity
0.18-0.26dBM
Alarm level
≥85db /3m
