- Place of Origin:
- China
- Brand Name:
- Asenware
- Model Number:
- AW-STD606A
- Product name:
- Wireless Heat Alarm Detector
- Color:
- White
- Usage:
- Detect Smoke
- Diameter:
- 126.7mm
- Alarm sound:
- 85dB Sounder
- Height:
- 54.5mm
- Feature:
- 2 Wire Conventional
- Working Voltage:
- 3V DC
- Installation:
- Celling Mounted
- Battery life:
- 1-3 Years
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- By carton
- Port
- ZhongShan
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 30 To be negotiated

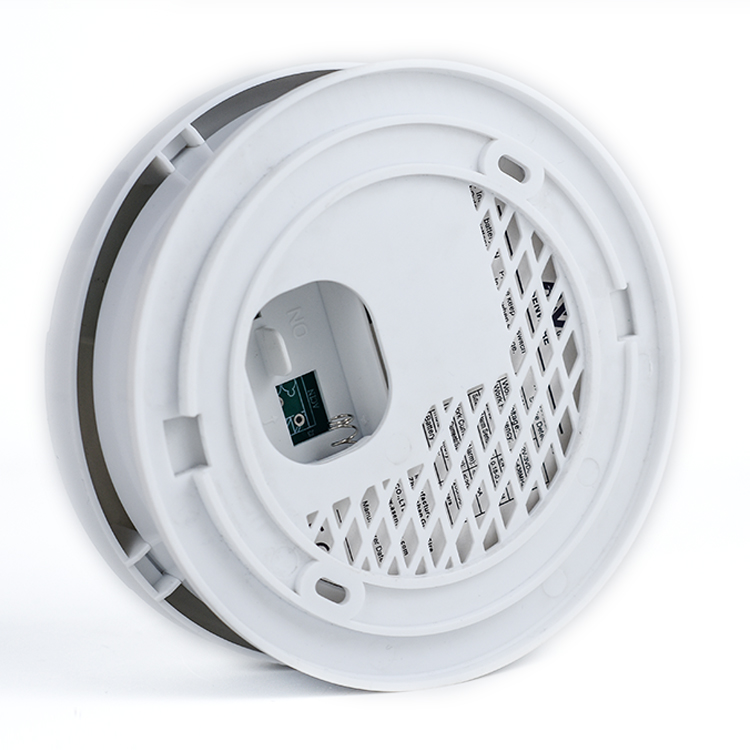

AW-STD606A Battery heat detector
The detector is a photodetector that uses the most advanced optical sensing chamber.
The detector is designed to provide open area protection and can be used with the AW-FP100 Series Addressable Fire Alarm Panel.
It has a wireless network alarm function; it can form a wireless LAN alarm system through the host; wireless
connection, no wiring, easy installation and construction.
>>Specifications<<
※Working power : A -CR17335/17450 lithium manganese batteryB- 2* AA alkaline battery
※Current :≤8µA@3VDC
※Maximum Alarm Current (LED on) :≤100mA@3VDC
※Operating Humidity Range : ≤95%RH(40°C±2°C) Relative
Humidity, Non-condensing
※Operating Temperature Range : -10°C to 50°C
(14°F to 122°F)
※Wireless working frequency band : 428-438MHZ
※Wireless transmit power : +20DB
※Alarm level : ≥85db /3m
※Height : 54.5mm installed in Base
※Diameter : 126.7 mm
>>Installation<<
INSTALL THE DETECTOR BASE
A. Open area smoke or heat detectors are intended for mounting on a ceiling or a wall in accordance with the fire standard in your country.
B. Attach mounting base to ceiling or wall.
INSTALL THE DETECTOR HEAD
A. Align detector head alignment mark line with the base"s start alignment mark line.
B. Push the detector head into the base while turning it clockwise to secure it in place.
C. Do not install the detector head until the area is thoroughly cleaned of construction debris, dusts, etc.
D. Test the detector(s) as described in the TESTING section of this manual.
A. Write the probe address through the programming address interface.
B. Switch to IN position(If using an externally mounted AA battery, pull the power switch to OUT).
