HIgh Quality Gas Extinguisher Control Panel
Click on the image to view the original image
Product： views：5HIgh Quality Gas Extinguisher Control Panel
Branch： ASENWARE
Type： Fire Fighting Equipment
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 02:53
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ASENWARE
Color:
Red
Type:
Fire Fighting Equipment
Material:
Stainless Steel
Keyword:
Fire extinguisher
Usage:
Fire Safety
Product name:
Gas Extinguisher Control Panel
Functions:
Fire Fighting Safety Emergency
Model:
AW-GEC2169
Packing:
Carton Packing
Use:
Produce Fire Extinguisher
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
CARTON PACKAGE
Port
ZHONGSHAN
Picture Example:
package-img
Lead Time:
Quantity(Pieces)1 - 100101 - 500501 - 1000 >1000
Est. Time(days)5710To be negotiated
Product Description

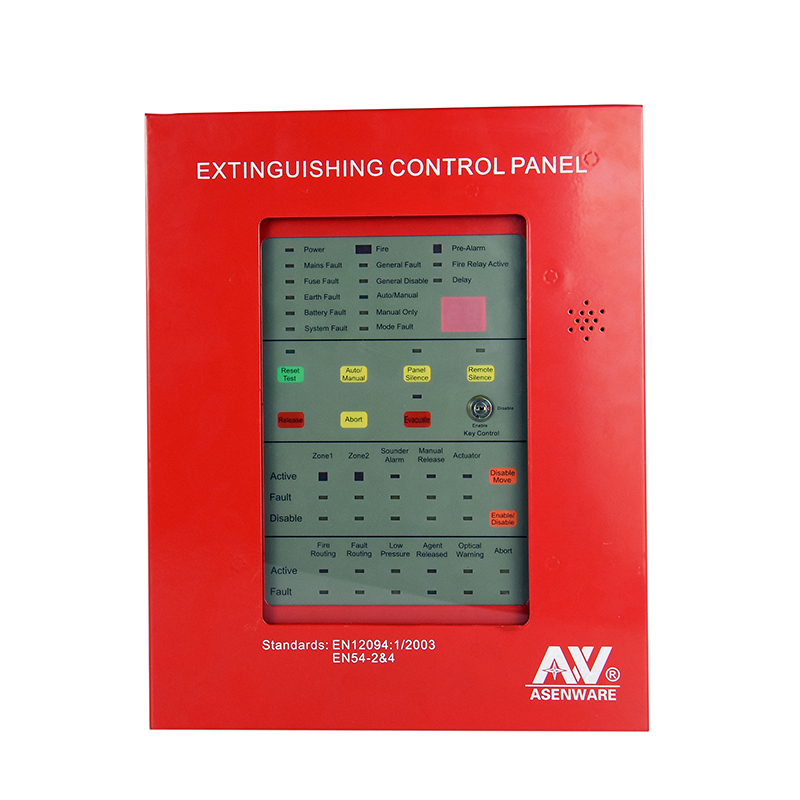

Automatic Gas Extinguisher Control Panel

The automatic extinguisher control panel AW-GEC2169 is designed execute European standards of EN54-2 and EN54-4 Fire Detection and Fire Alarm systems clause,and Control and Indicating Equipment EN12094-1 firefighting system standards.
EN54-2 Fire detection and fire alarm systemspart 2: control and indicating equipment
EN54-4 Fire detection and fire alarm systemspart 4: power supply equipment
EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems
Requirements and test methods for electrical automatic control and delay devices

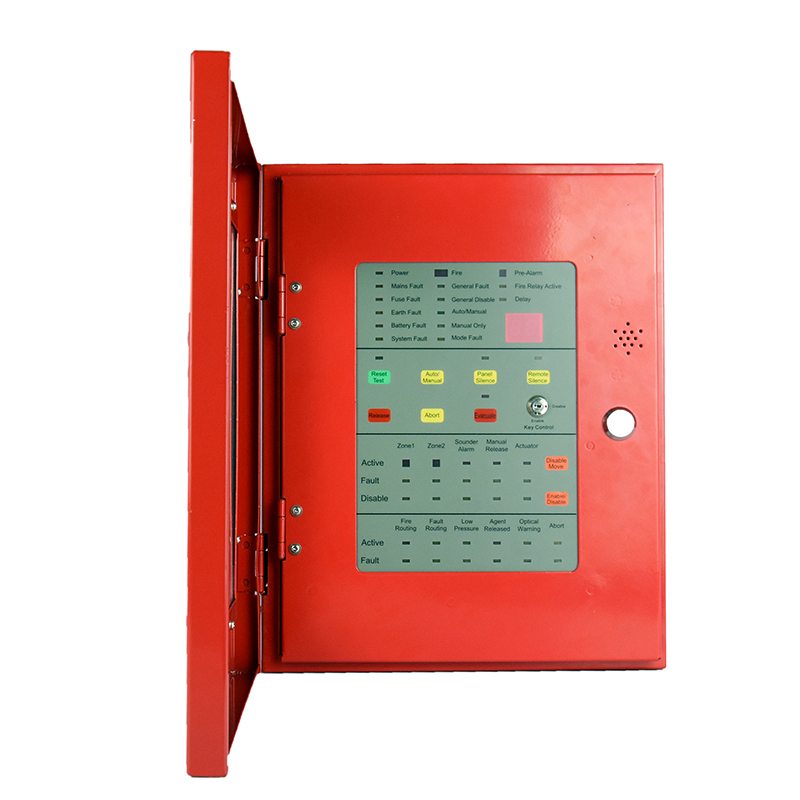

AW-GEC2169 with a new design, easy to operate, metal box opening and closing door with visible glass window, make the Panel running more safe.


Detailed Images
Packing & Delivery
AC INPUT
24VDC (19V-28V) and 5VDC (4.9V-5.1V)
DC OUTPUT at Power Board
5V for power board MCU, 3.3V for others
Voltage for MCU
<450mA standby current
Current at 24VDC from PSE
1.4A except batteries charge
Maximum current from PSE
1.85A maximum, current limited
Batteries current
24VDC, 200 mA max, current limited
Auxiliary output
Adjustable 0 to 60seconds(5 second steps)
Extinguishant release delay time
Imin=340mA, Imax.a=424mA, Imax.b=1.4A
Imin, Imax.a and Imax.b according to EN54-2
2*12V/ 2.3Ah sealed lead acid gel, self-regulated
Batteries
1.6Ω±10% if needed
Battery replace Resistance
21V
Battery low-voltage protection
Detectots / zone lines: 15.2V-28V Sounder lines:19-28V
The maximum and minimum electrical ratings
for each input and output
Fire protection/Fire routing lines:19-28VFault routing lines:18-28V
Detectors wiring allowed each zone
16 points
Max points (detector and MCP) per CIE
32 points
Zone alarm current
6mA minimum/ 27mA maximum
Sounder output
200mA maximum
Fire routing/ Fault routing
200mA maximum each terminal
Communication protocol
2 wires RS485 bus system
EOL resistor for zone, inputs(Except for main power) and outputs
6.8K 1W
Wires for 220V AC IN (recommended)
16AWG
Wires connect power board to interface board (recommended)
20AWG
Wire for main board wiring with interface board (recommended)
28AWG
Fuse on power board
3A/ 250V Glass tube fuse 5*20(mm) Fast/quick blow
Fuses on interface board(general outputs)
0.2A /250V Glass tube fuse 5*20(mm) Fast/quick blow [*5pcs]
Fuse on interface board(Main Power)
2A/ 250V Ceramic tube fuse 5*20(mm) Slowly blow
Fuse on interface board(EM valve)
1.5A/ 250V Glass tube fuse 5*20(mm) Fast/quick blow
Environmental
Class A temperature range: -5 to 40°C (23~104°F)
Terminal blocks rating
Humidity: 5 to 95% RH, non-condensing
Wires between interface board (Panel)and Detector(recommended)
All terminals rated for 12 to18 AWG
