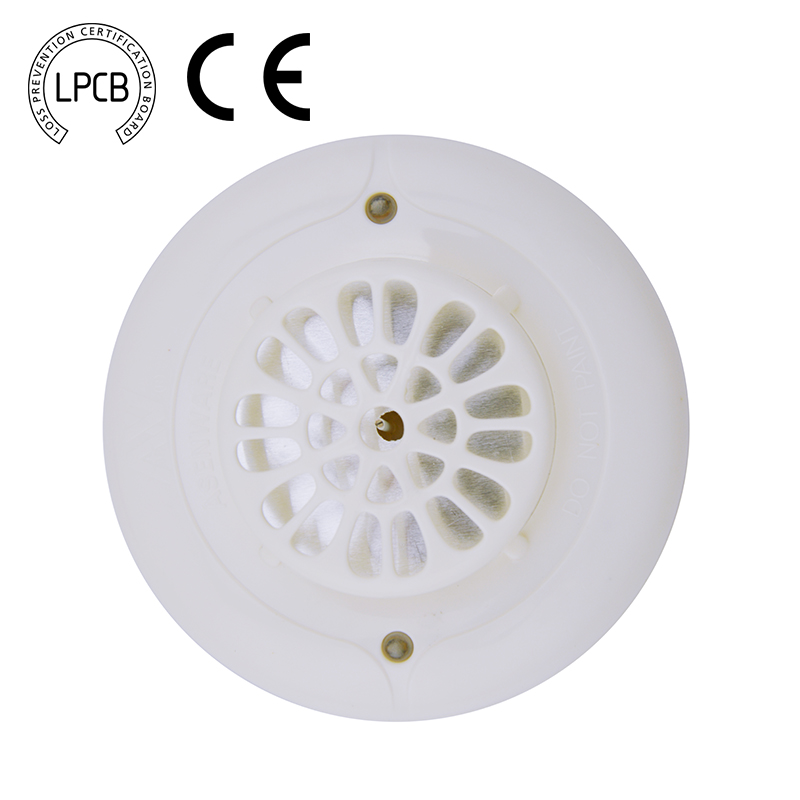

AW-CTD382 is conventional photo-electronic heat detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
The conventional rate of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value. It can also enable fire alarm when the absolute temperature value reach the setting fixed value. It has a stable and reliable working performance.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until rest by panel.
Operating Voltage Range: 9 to 28 VDC Volts Non-polarized
Standby Current: ≤120uA@24VDC
Maximum Alarm Current(LED on): ≤15mA@24VDC(1K Ohm current-limiting resistance)
Operating Humidity Range: ≤95%RH(40℃±2℃)RelativeHumidity,Non-condensing
Operating Temperature Range:-10℃ to 50℃(14ºF to 122ºF)
Fix Temperature Alarm:57℃(135ºF)A2R
Rate of rise Alarm: 7.1℃/5S A2R

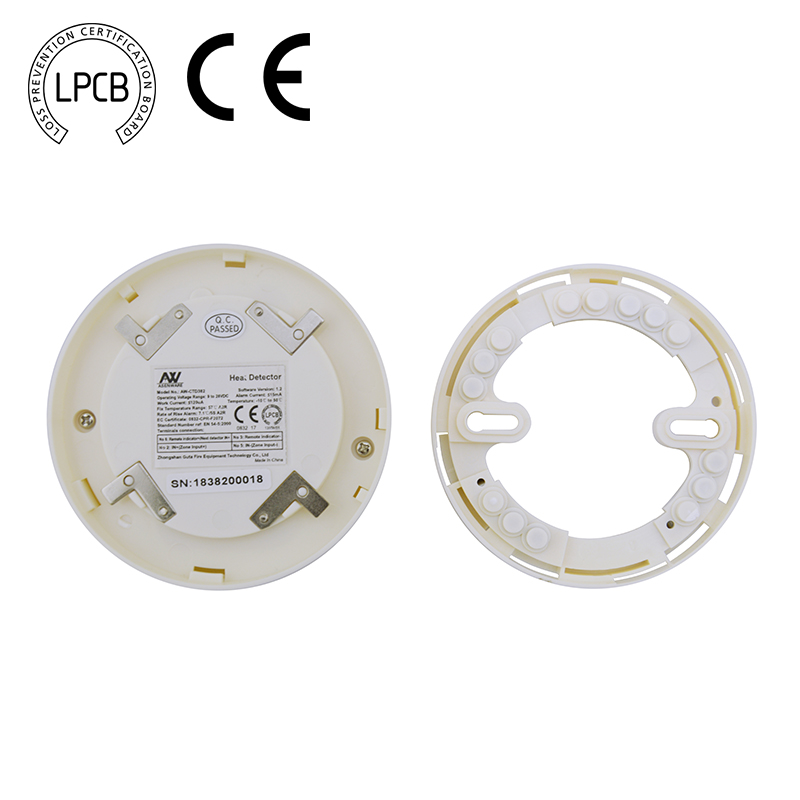

Height:48.2mm installed in Base
Diameter: 99.45mm
Standard Number ref: EN 54-7:2000
EC certificate: 0832-CPR-F2072
Terminal 6: IN+(Zone Input+)
Terminal 5: IN-(Zone Input-)
Terminal 2: Out+(Zone Output+)
Terminal 5: Out-(Zone Output-)
Terminal 6: Remote Indicator+
Terminal 3: Remote Indicator-
ASENWARE is the fire alarm system and fire suppression system manufacturer and whole fire safety solution provider since 2005.
Driven by a commitment to sound operations, ongoing innovation, and open collaboration, we have established a competitive fire safety products line include addressable fire alarm system, conventional fire alarm system, central monitoring emergency light system, fire telephone and emergency audio system, fire pump, fire hose and gas suppression system.
1. OEM/ODM services.
2. Professional technical team.
3. Offer Free technical support whenever you need.
4. One year warranty and technical maintenance.
1. Packaging Details: EPE inside, carton outside.
2. Shipping:delivered by air,ship or express for your order.
3. Delivery Time: 3-5 days after payment received.
