Intelligent fire alarm systems for building
Introduction:

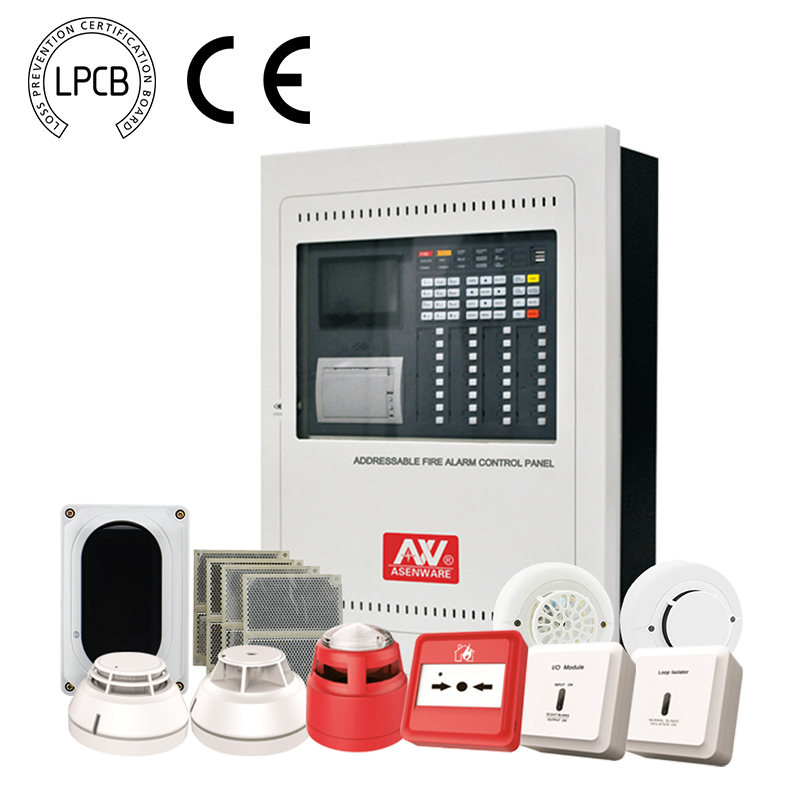

The purpose of the AW-FP300 FACP is to monitor input signals, give indications and possibly
activate outputs as programmed. AW-FP300 is designed to comply with EN 54-2 with
qualities of simple installation, operation and easy maintenance.
The AW-FP300 single loop 32 zone fire alarm control panel offers the following features:
* Up to 324 addresses on one loop
* An easy to read, 4.3’’ color screen LCD with a resolution of 480×272
* Zone indication and control panel (ZCP) for 32 zones gives a quick indication of the
location of an alarm
* Record capacity of 1000 historical events for each of historical fire, historical fault and
historical operation
* An independently programmable conventional sounder circuit output
* Integral power supply and battery
* Integral printer
* Flexible and intuitive cause and effect programming on front panel
* Zone test, point test and module start/stop testing facilitate the commissioning
* U-disk interface makes the load and save of configuration or historical data convenient
for system commissioning and maintenance
* Hierarchy management with three access levels
* Anti-tamper protection by a key lock
* CAN bus for interconnection of up to 20 FACPs and RS-485 for connection with up to 30 fire indicating panels per FACP
* Over 10 years" experience.
* Prompt response.
* OEM & ODM available.
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better service.
* Direct control on materials, production status, quality checking.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
