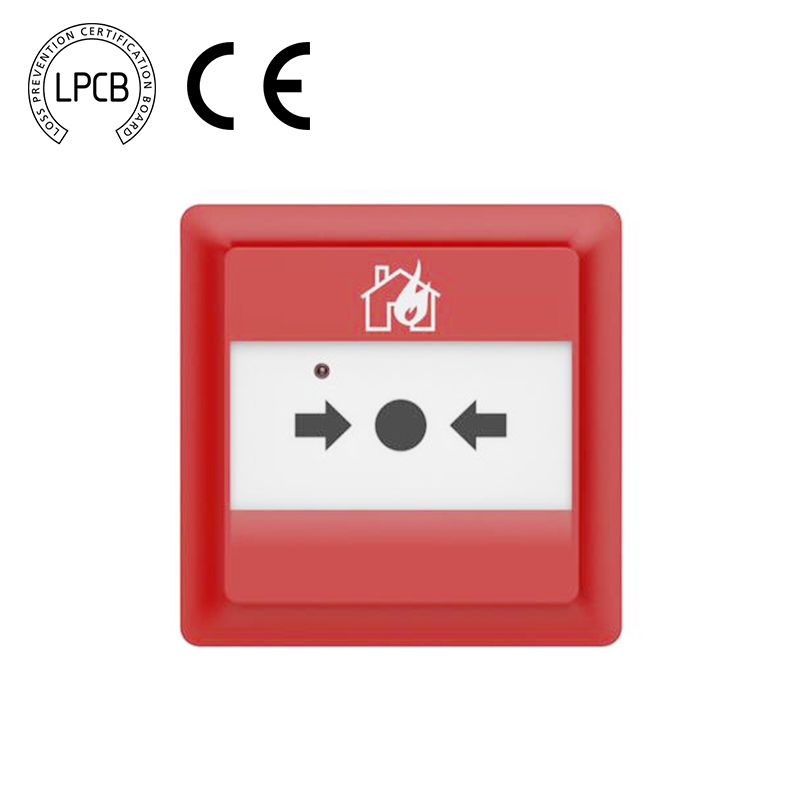

LPCB Addressable Fire Alarm Manual Call Point
Introduction:
The AW-D305 Addressable manual call point(hereinafter referred to AW-D305 Addressable) is mainly designed to be used with an intelligent two-bus control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual fire call points. When the manual fire call points is operating normally, the red indicator will blink; when there is a fire alarm, it will remain lit. The AW-D305 Addressable supports electronic coding, more suitable for engineering application convenient.
Features:
1) Semi-flush or surface mounting.
2) Compatible with the latest EN standards.
3) Lever reusable (non-glass break).
4) LED indicator.
5) Full electronic coding, through CODER-9001 encoder scene rewrite.
Parameters:
1) Executive Standard:EN54-11
2) Protection class:IP43
3) Operating voltage:24V (pulse modulation)
4) Operating Current:monitoring status <0.3mA, alarm status <2mA
5) Application:For indoor use
6) Operating temperature: -10 ℃ ~ 55 ℃,Relative humidity:≤ 95% (non-condensing)
7) Indicator:Red alarm indicator flashes when data logging, press the manual button lit work
8) Encoding:coded by the encoder, the address range from 1 to 324 optional
9) Materials and colors:ABS, red
10) Wiring:The Promise of two bus system (L1, L2)
11) Size:90mm×90mm×42mm (overall height) / 90mm×90mm×23mm (exposed after installation
dimensions)
12) Mating Host:AW-FP300 fire alarm control panel
13) Weight:about 95g
Appearance and dimensions:
Mounting base:
ADDRESSABLE FIRE ALARM SYSTEM DEVICE:
