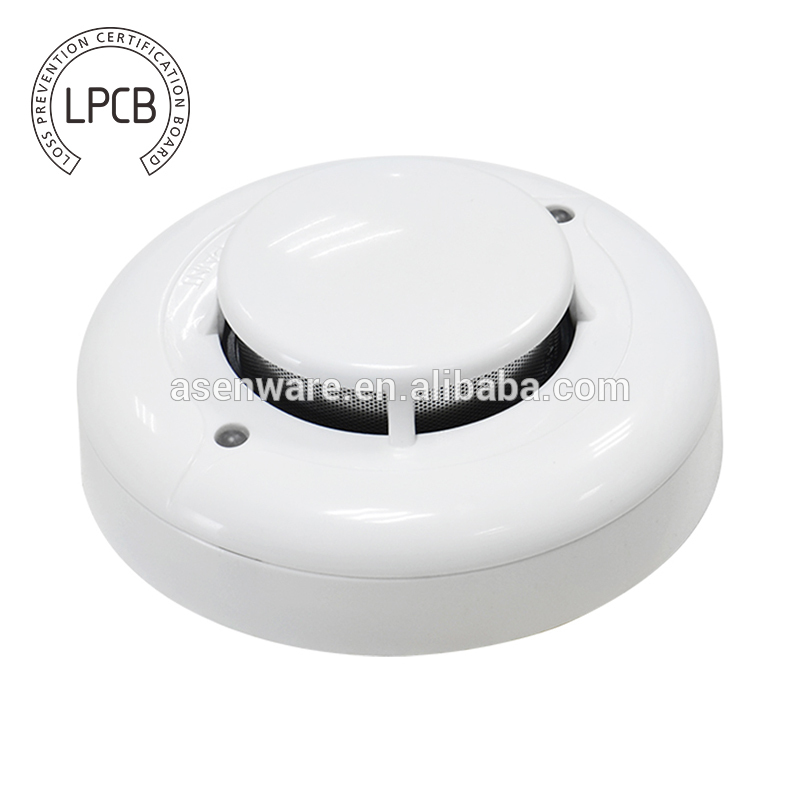

AW-CSD381 is conventional photo-electronic smoke detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
The conventional rate of rise of rise heat detector uses thermal component to detect the temperature changing in the environment. It can enable fire alam when the temperature difference achieved the setting rate of rise temperature value reach the setting fixed ualue. It has a stable and reliable working performance.
Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Features
Operating Voltage Range: 9 to 28 VDC Non-polarized
Standby Current: ≤120uA@24VDC
Maximum Alarm Current(LED on): ≤15mA@24VDC
(1K Ohm current-limiting resistance)
Operating Humidity Range: ≤95%RH(40℃±2℃)RelativeHumidity,Non-condensing
Operating Temperature Range: -10℃ to 50℃(14oF to 122oF)
Smoke Alarm Sensitivity: 0.1-0.15dB/m
Height: 48.2mm installed in Base
Diameter: 99.45mm
Standard Number ref: EN 54-7:2000
EC certificate: 0832-CPR-F2071
Packaging : Cigarette Smoke Detector: PP Bag per Set to protect/Carton Box outside .
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
Ø Payment terms :T/T L/C Western union
Ø Certificate :CE LPCB ISO9001
