Asenware Voice Evacuation System with Water Proof Speaker
Introduction
AW-VP350 Voice Evacuation Control Panel and speakers is a standalone public audio system for emergency evacuation. When get alarm input from other fire alarm system or security alarm system, it can play the pre-recorded audio track to the speakers automatically. It also can broadcast the microphone real time sound, or other line in sound. It also support RS485 communication with ASENWARE AW-FP300 series addressable fire alarm control panel.
Product features
2.1 Maximum power output: 350Watt.
2.2 Speaker driving mode: constant voltage.
2.3 Evacuate message up to 1 minute.
2.4 Background audio: USB2.0.
2.5 Complies with EN54 part 16.
2.6 Network function (work with AW-FP300 series addressable fire alarm control panel)
2.6.1 Maximum 15 pcs AW-VP350 can be connected with 1 pcs AW-FP300 addressable fire alarm control panel.
2.6.2 Each AW-VP350 panel can be programmed to maximum 20 channels and controlled by AW-FP300 addressable fire alarm control panel.
Parameters
Item | Value |
Panel Name: | Voice Evacuation Control Panel |
Model No.: | AW-VP350 |
Power supply | AC 220V (+10%,-15%, 50Hz) |
Remote control trigger mode: | 24VDC |
Line input sensitivity (rms): | 200mV (external line 1), 900mV (external line 2) |
Frequency response range: | 80Hz ~ 8kHz |
Total harmonic distortion: | <5% |
SNR: | 70dB |
Monitoring power: | 1 W |
Rated output voltage: | 120V (constant voltage mode) |
Rated output power: | 350W |
Operating environment: | Temperature 0 ~ + 40 ℃ relative humidity 95% |
Insulation strength: | AC input to the chassis greater than 50M (DC500 V) Constant voltage output to the chassis greater than 50M (DC500 V) |
Electrical strength: | AC input to the chassis leakage less than 10mA (AC 1250V) |
Product Size: | 406(H) X331(W)X123(T) |
Product net weight: | 13kg |
System wire diagram
Standalone mode
Network mode
Types of Speakers:

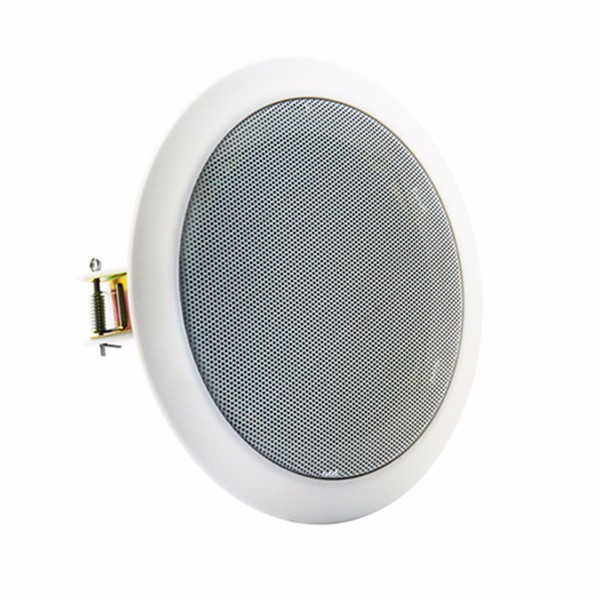

| AW-SP01 | Small ceiling speaker |
| AW-SP02 | Big ceiling speaker big |
| AW-SP03 | Wall mounted speaker |
| AW-SP04 | 15W water proof speaker |
| AW-SP05 | 30W water proof speaker |
