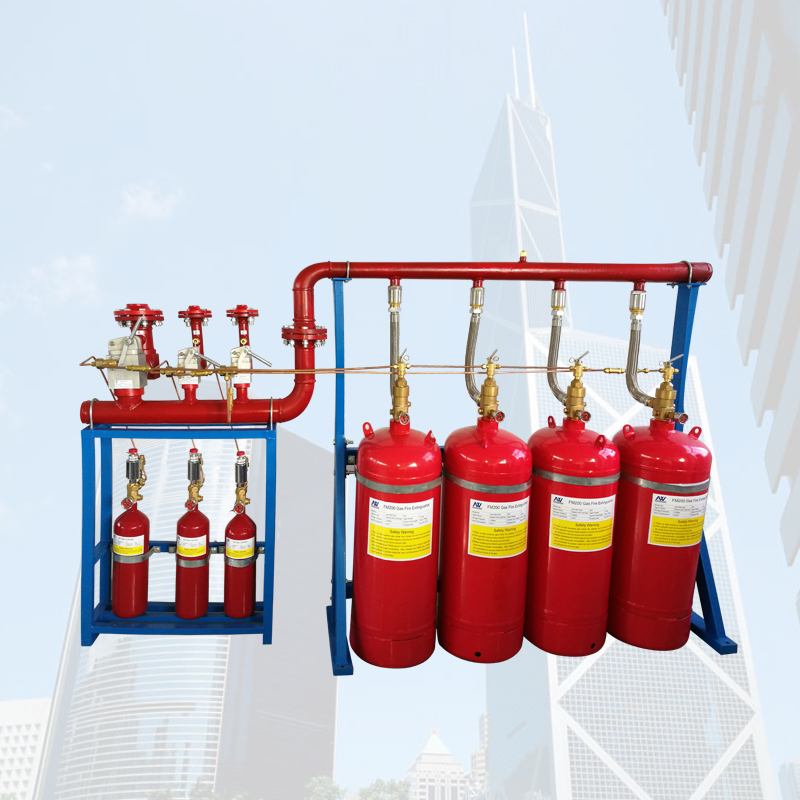

Automatic fm200 cylinder fire suppression system
Desription of fm200 fire system
FM200 Fire Suppression System is a clean, colorless, and environmentally friendly fire suppression agent that is electrically non-conductive and safe for humans. It extinguishes flames primarily through heat absorption, leaving no residue, thus minimizing downtime after a fire and making FM-200 suppression systems accepted and respected worldwide with over one hundred thousand installations in more than seventy countries.
Components and accessories of fm200 fire system
- FM-200 Storage Components – Storage components consist of the cylinder assembly(s), which contains the FM-200 chemical agent, and the cylinder bracket(s), which holds the cylinder assembly securely in place.
- FM-200 Distribution Components – Distribution components consist of the discharge nozzles used to introduce the FM-200 into a protected hazard along with the associated piping system used to connect the nozzles to the cylinder assembly.
- Trim Components – Trim components complete the installation of the FM-200 system and consist of connection fittings, pressure gauge, low-pressure supervisory switch, electric valve actuator, and manual valve actuator.
- Slave Arrangement Components – Slave arrangement components consist of the pneumatic valve actuator(s), actuation check valve, vent check, actuation hose, and fittings required for a multiple cylinder (slave) arrangement.
- Supplemental Components – Supplemental components include the discharge pressure switch and manifold check valve. They supplement the core equipment or complete a specific multi-cylinder configuration.
- Control Panel – This device monitors the condition of the electric actuator, detectors, warning devices, cylinder pressure, and any manual release and abort stations. All electric or electronic devices must connect to the control panel in order to function.
- Early Warning Detection and Alarm Devices – Early warning detection devices coupled with manual release and abort stations maximize system efficiency while audible and visual alarm devices alert staff of alarm conditions.
Applications of fm200 fire system
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing / imaging equipment
- Reference material
- Chemical laboratories
- Clean rooms
- Control rooms
- Flammable liquid storage
- Offshore drilling rigs
- Robotic equipment
- Textile manufacturing
- Electric utility facilities
- Media storage
- Military vehicles
- Art / artifacts / historical collections
Parameters of fm200 fire system
| Filling pressure | 4.2 MPa | Extinguishing agent release time | ≤10s |
| Extinguishing agent filling density | ≤950kg/m3 | valve drive air pressure | 6.0±1.0 MPa(20℃) |
| System Power Supply | AC220V/DC24V/1A | System working environment temperature | -10℃~55℃ |
| System protection limits area | The largest single area 800m²; volume : the largest single area 3600m ³ | ||
| System start-up mode | Automatic system startup, electrical manual, mechanical emergency manual. | ||
| Storage bottle volume | 40L,70L,90L,120L,150L,180L | ||
Images of fm200 fire system
