Fire alarm audio system/voice evacuation system designed to provide notification for small to medium applications

Click on the image to view the original image

Product：	views：4Fire alarm audio system/voice evacuation system designed to provide notification for small to medium applications
Branch：	ASENWARE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 02:54

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ASENWARE

Model Number:: AW-VP350

Product Name:: Fire Alarm Voice Evacuation System

Power supply:: AC220V (+10%,-15%,50Hz)

Remote control trigger mode:: 24VDC

Frequency response range:: 80Hz-8kHz

Rated output voltage:: 120V(constant voltage mode)

Rated output power:: 350W

Communication protocol:: RS485

Network capacity:: Max. 15 panels in one RS485 network

Channel:: 20 channels for one control panel

Standards:: Complies with EN54-16

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Carton Box

Port: Shenzhen

Product Description

Introduction

AW-VP350 Series Voice Evacuation Control Panel and Speakers is a standalone public audio system for emergency evacuation. When get alarm input from other fire alarm system or security alarm system, it can play the pre-recorded audio track to the speakers automatically. It also can broadcast the microphone real time sound, or other line in sound. It also support RS485 communication with ASENWARE AW-FP300 series addressable fire alarm control panel.

Product Features

*Maximum power output: 350Watt.
*Speaker driving mode: 120V constant voltage.
*Evacuate message up to 1 minute.
*Background audio: USB2.0.
*Complies with EN54 part 16.
*Network function （work with AW-FP300 series addressable fire alarm control panel）
*Maximum 15 pcs AW-VP350 can be connected with 1 pcs AW-FP300 addressable fire alarm control panel.
*Each AW-VP350 panel can be programmed to maximum 20 channels and controlled by AW-FP300 addressable fire alarm control panel.

Parameters
Product Name:	Voice Evacuation System Control Panel
Model No.:	AW-VP350
Power supply	AC 220V (+10%,-15%, 50Hz)
Remote control trigger mode:	24VDC
Line input sensitivity (rms):	200mV (external line 1), 900mV (external line 2)
Frequency response range:	80Hz ~ 8kHz
Total harmonic distortion:	<5%
SNR:	70dB
Monitoring power:	1 W
Rated output voltage:	120V (constant voltage mode)
Rated output power:	350W
Operating environment:	Temperature 0 ~ + 40 ℃,relative humidity 95%
Insulation strength:	AC input to the chassis greater than 50M (DC500 V)
Insulation strength:	Constant voltage output to the chassis greater than 50M (DC500 V)
Electrical strength:	AC input to the chassis leakage less than 10mA (AC 1250V)
Size and Weight	406mm331mm123mm,13kgs

AW-VP350

Voice Evacuation Control Panel

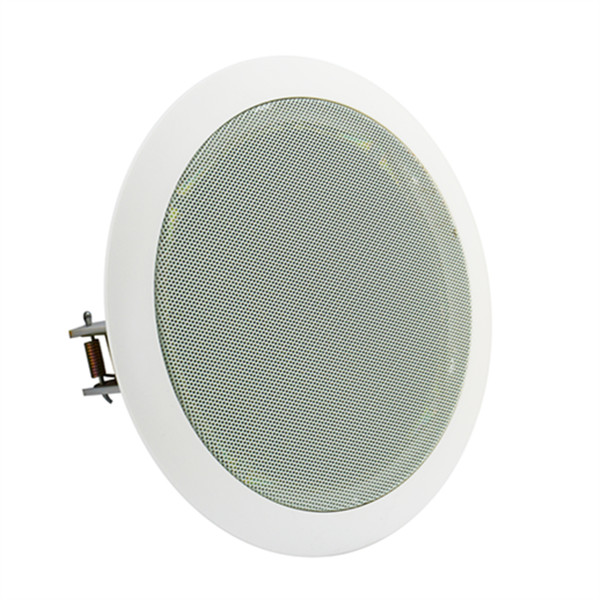

AW-SP01

3W Ceiling Speaker

AW-SP02

6W Ceiling Speaker

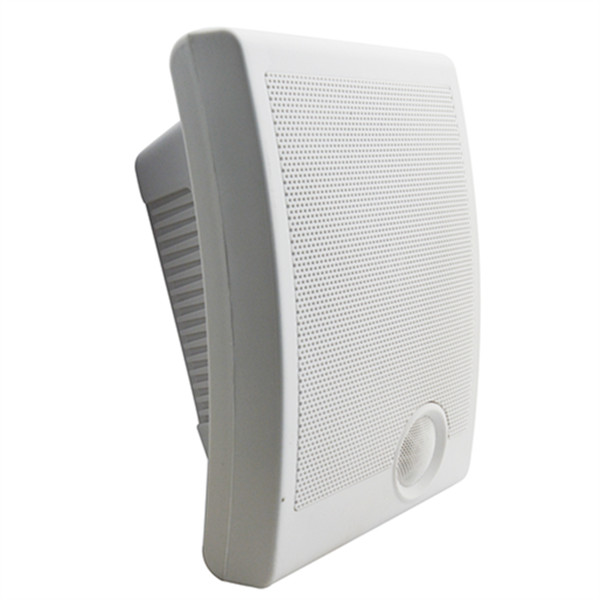

AW-SP03

10W Wall Mounted Speaker

AW-SP04

15W Waterproof Horn Speaker

AW-SP05

30W Waterproof Horn Speaker
