20 Zones/Channels Voice Evacuation System Control Panel

Click on the image to view the original image

Product：	views：520 Zones/Channels Voice Evacuation System Control Panel
Branch：	ASENWARE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 02:54

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ASENWARE

Model Number:: AW-VP350

Product Name:: Fire Alarm Voice Evacuation System

Power supply:: AC220V (+10%,-15%,50Hz)

Remote control trigger mode:: 24VDC

Frequency response range:: 80Hz-8kHz

Rated output voltage:: 120V(constant voltage mode)

Rated output power:: 350W

Communication protocol:: RS485

Network capacity:: Max. 15 panels in one RS485 network

Channel:: 20 channels for one control panel

Standards:: Complies with EN54-16

Supply Ability

Supply Ability:: 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details: Carton Box

Port: Shenzhen

Product Description

Introduction

AW-VP350 Series Voice Evacuation Control Panel and Speakers is a standalone public audio system for emergency evacuation. When get alarm input from other fire alarm system or security alarm system, it can play the pre-recorded audio track to the speakers automatically. It also can broadcast the microphone real time sound, or other line in sound. It also support RS485 communication with ASENWARE AW-FP300 series addressable fire alarm control panel.

Product Features

*Maximum power output: 350Watt.
*Speaker driving mode: 120V constant voltage.
*Evacuate message up to 1 minute.
*Background audio: USB2.0.
*Complies with EN54 part 16.
*Network function （work with AW-FP300 series addressable fire alarm control panel）
*Maximum 15 pcs AW-VP350 can be connected with 1 pcs AW-FP300 addressable fire alarm control panel.
*Each AW-VP350 panel can be programmed to maximum 20 channels and controlled by AW-FP300 addressable fire alarm control panel.

Parameters
Product Name:	Voice Evacuation System Control Panel
Model No.:	AW-VP350
Power supply	AC 220V (+10%,-15%, 50Hz)
Remote control trigger mode:	24VDC
Line input sensitivity (rms):	200mV (external line 1), 900mV (external line 2)
Frequency response range:	80Hz ~ 8kHz
Total harmonic distortion:	<5%
SNR:	70dB
Monitoring power:	1 W
Rated output voltage:	120V (constant voltage mode)
Rated output power:	350W
Operating environment:	Temperature 0 ~ + 40 ℃,relative humidity 95%
Insulation strength:	AC input to the chassis greater than 50M (DC500 V)
Insulation strength:	Constant voltage output to the chassis greater than 50M (DC500 V)
Electrical strength:	AC input to the chassis leakage less than 10mA (AC 1250V)
Size and Weight	406mm331mm123mm,13kgs

AW-VP350

Voice Evacuation Control Panel

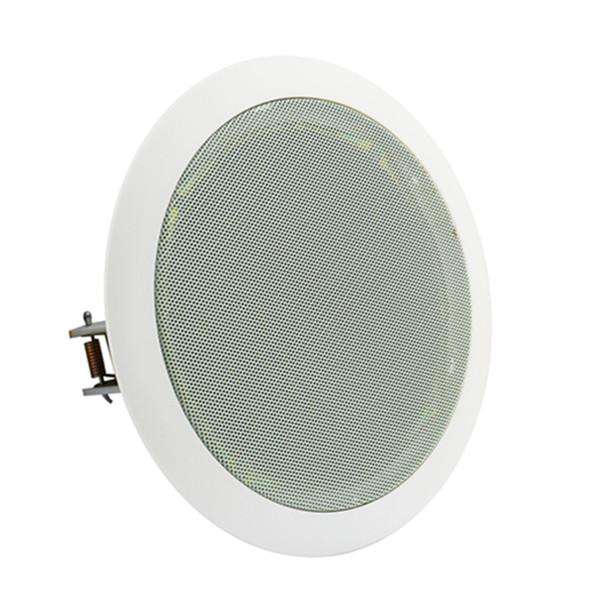

AW-SP01

3W Ceiling Speaker

AW-SP02

6W Ceiling Speaker

AW-SP03

10W Wall Mounted Speaker

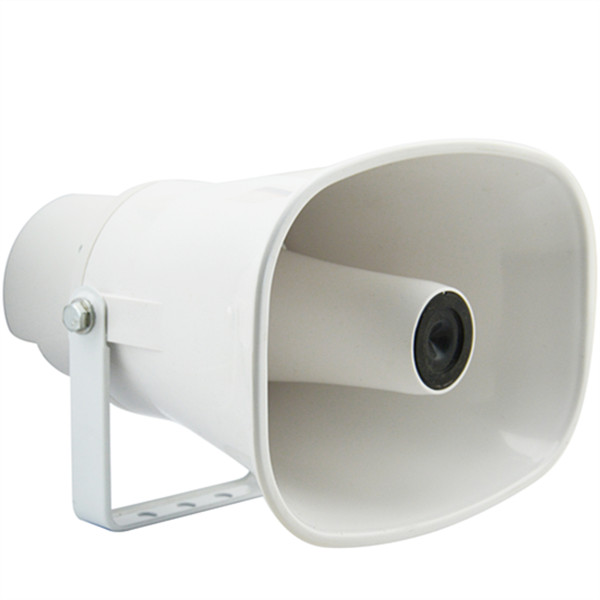

AW-SP04

15W Waterproof Horn Speaker

AW-SP05

30W Waterproof Horn Speaker
