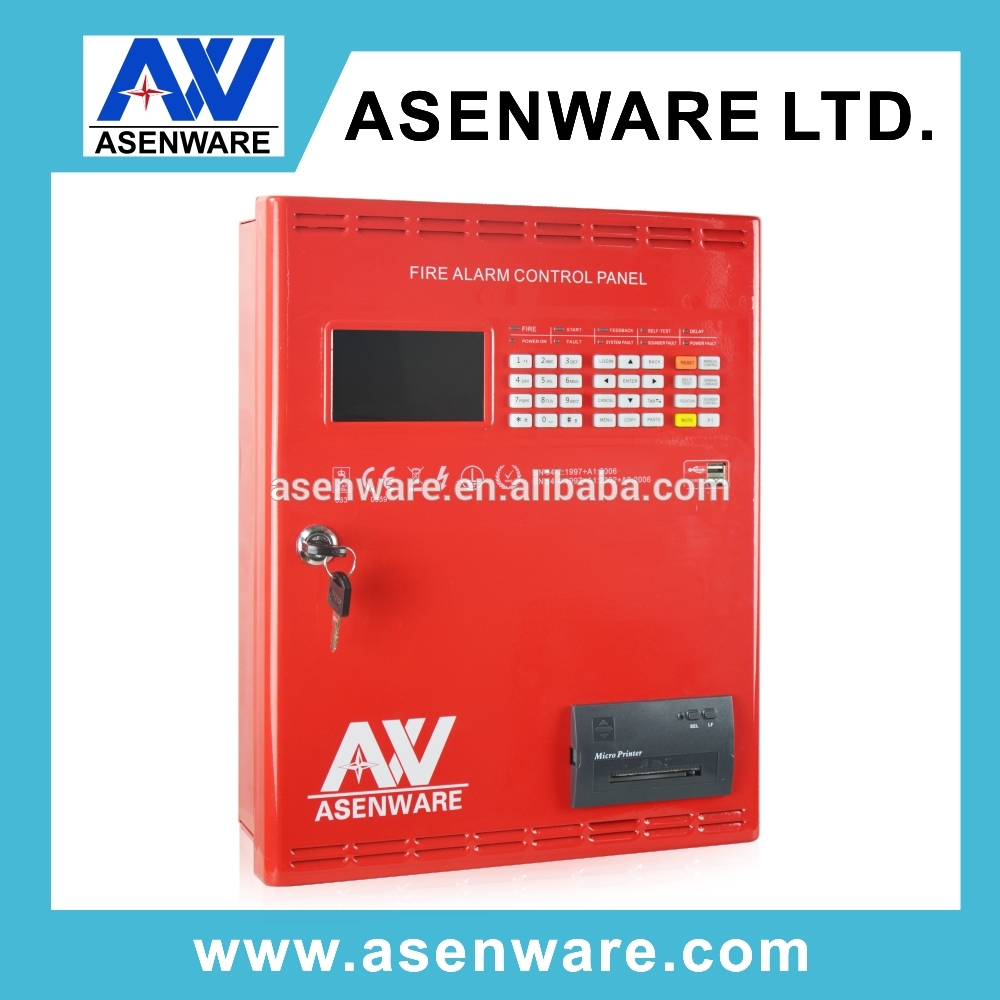

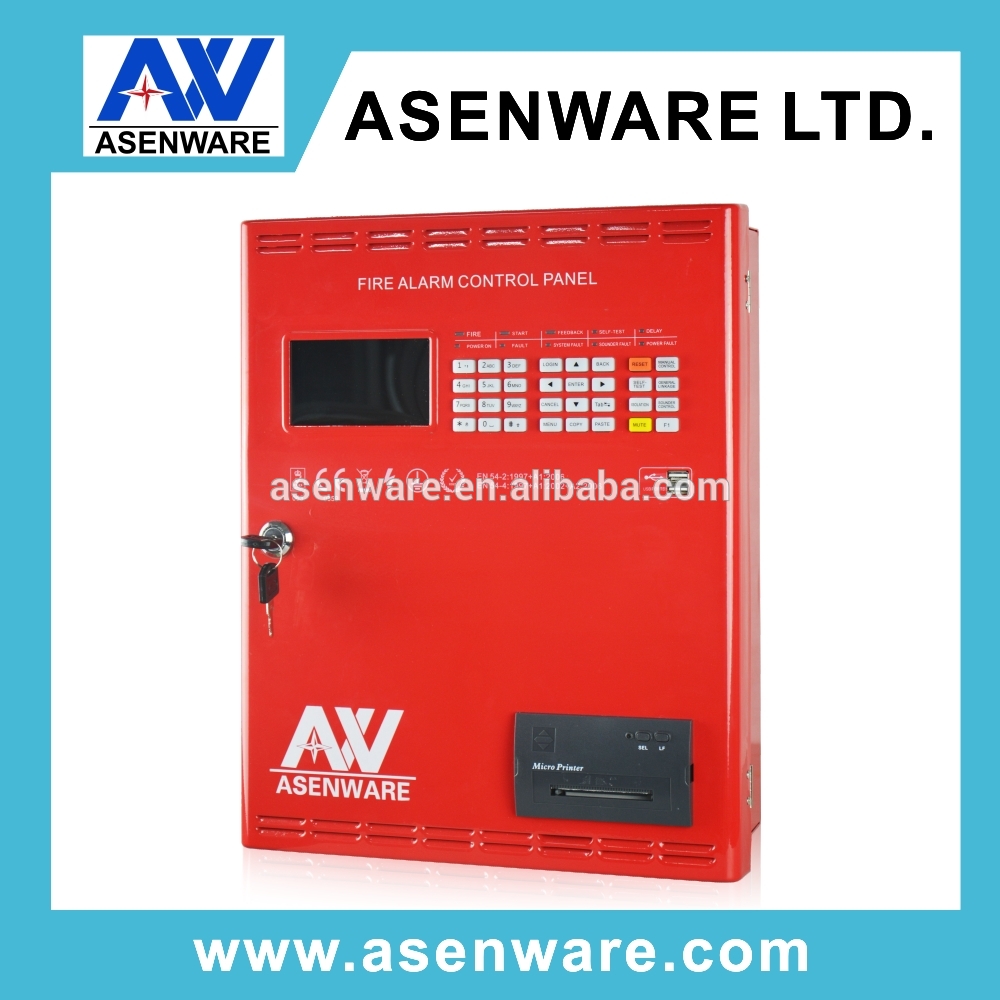

Smart BMS Fire Detection Fire Alarm Control System
1.Non-polarity 2-wire bus analog fire alarm control panel with optional 100/200/324 addresses.
2.Complies with the provisions of both Fire Alarm Control Units (GB4717-2005) & Automatic Control System for Fire Protection (GB16806-2006).
Optional Model | AW-AFP2188-100/AW-AFP2188-200 /AW-AFP2188-324 |
Data processing | Collect data:via the internal CPU in the intelligent detectors and modules to realize digital filtering and auto-compensation functions; Carry out data: based on fuzzy control theory & modern fire alarm theory to carry out data processing |
Power Supply | an AC-DC master-standby power supply system |
| Supports mini-printer |
| Supports ten multi-line linkage control/monitoring points to control and monitor important equipment. |
For Users | be equipped with eight bus manual control points, which makes it easy to control related equipment. |
| Industrial & Civil Buildings: factory, hospital, restaurant, hotel, school, etc. |
Advantage | Accurate & efficient feedback,humanized setting, economic, user friendly,etc.
|
Main technical parameters:
| |
AW-AFP2188 system capacity | 100/200/324 points (non-polarity, 2-wire bus, fully mixed coding) |
AC input voltage | AC 220V±20% 50Hz |
DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
AC input power | 120W |
Circuit bus | two-wire system |
Total length | ≤1500m |
Voltage of the circuit bus | +20V≤Voltage ≤+26V(when the DC power is operating) +24V≤Voltage ≤+26V(when the AC power is operating) |
System working conditions
| 1. Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ DC 24V 6A 4.Output contact capacity: AC 220V 1A DC 27.6V 3A |
Ex-works Configuration Parts:
1) AW-ASD2188:addr. optical smoke detector
2) AW-ATD2188:addr. thermal detector
3) AW-AMC2188:addr. manual call point
4) AW-ASS2188:addr. hooter
5) AW-AIO2188-IN:addr. input module
6) AW-AIO2188-OUT:addr. output module
7) AW-CODER2188:for setting address
Founded in 2006 with headquater in London,UK, Asenware grows up into an international group company in BMS & NDT sector.
BMS is mainly devoted to provide complete fire alarm & suppression solution globally.
To satisfy the requirement of clients lists our top consideration.
Payment Terms :T/T L/C
Lead Time :ASAP
Warranty :1 year
Certificate :CE,LPCB ISO9001
