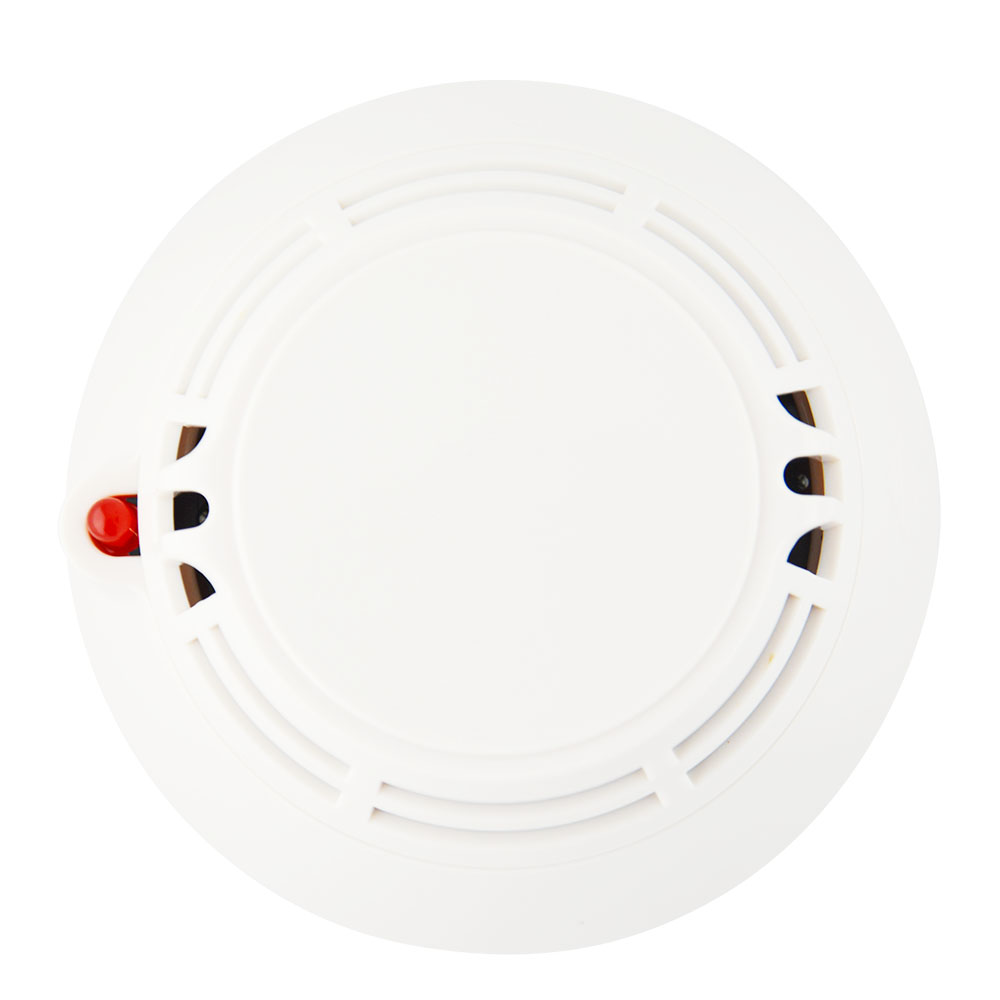

Addressable fire system smoke and heat detector
Technical parameters:
| Executive standard | GB 4715-2005,GB4716-2005 |
| Operating voltage | 24V (pulse modulation) |
| Operating current | ≤0.5mA (monitoring status) |
| Sensing technology | the use of photoelectric sensors and temperature sensors dual sensor technology, thermal type: A2 |
| Weight | about 100g |
| Encoding | Electronic, coding range is 1 to 324 |
| External dimensions | diameter: 100mm, height: 55mm (with the base) |
| Wiring | Promise of wire |
| LED | red, blinking about once every 12 seconds when the patrol, alarm always |
| Operating environment | Indoor, temperature: - 10 °C ~ +50 °C ; relative humidity: ≤95% (40°C±2°C, without condensation) |
| Installation height | ≤8m |
| Shell Material | ABS |
| Protection area | About 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System. |
| Matched host machine | fire alarm control panel (such as AW-AFP2188) |
Packaging : PP Bag per Set to protect/Carton Box outside
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
As the pics shows:
Product overview:
AW-ASH2188 addressable point type hybrid smoke and heat combined detector (Detector
hereunder) is a multi-complex by the smoke detector sensor and semiconductor
temperature sensors from the process structure and together constitute the circuit
structure. It not only has a photoelectric smoke detector performance, and both
temperature fire detector performance.
This detector is for the promise of the second bus system, with the company"s 2188 series
of alarm controller supporting.
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
