Fire Alarm Heat Detector Introduction:
1.Addressable heat detector is a mated product of the 9000 series fire alarm control panels.
It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.
2.The detector realizes real-time acquisition of the in situ smoke concentration data and sends back the data to a fire alarm
ontrol panel.
3.It can also receive and execute the control commands given by a fire alarm control panel.
Name | Addressable Fixed Temperature Heat Detector |
Model | AW-ATD2188 |
External Specification | Diameter 100mm Height 56mm (With Base) |
Weight | 47G |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Installation height | ≤8m |
Fire Alarm Heat Detector parameters:
1.Executive standard: GB4716-2005
2.Operating voltage: 24V (pulse modulation)
3.Operating current: <300uA (monitoring status) or <1.5mA (alarm status)
4.Product class: A2
5.Wiring method: non-polarity two-bus system (L1, L2)
6.Coding mode: It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection.

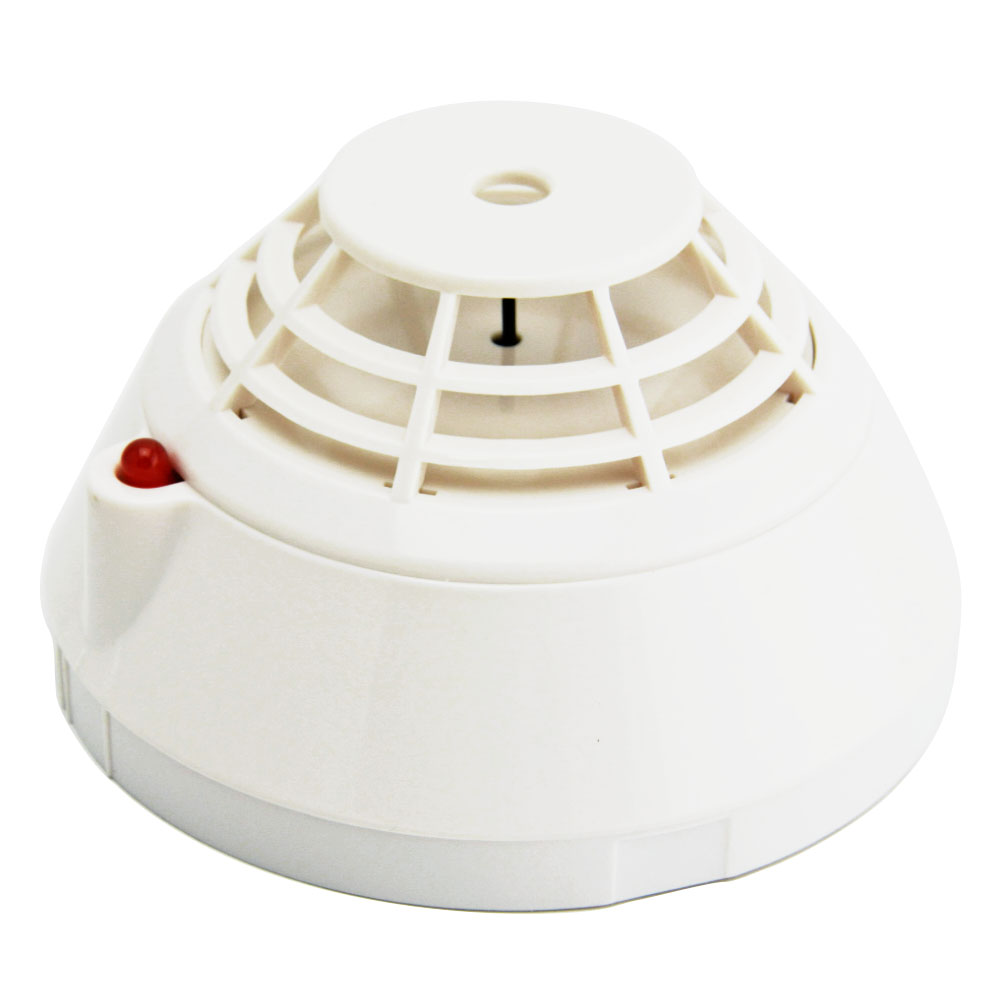

Fire Alarm Heat Detector Show:
Addressable Fixed Temperature Heat Detector Matched System:
