Product Description
Fire Alarm Control System Manufacturer,Fire Control Panel

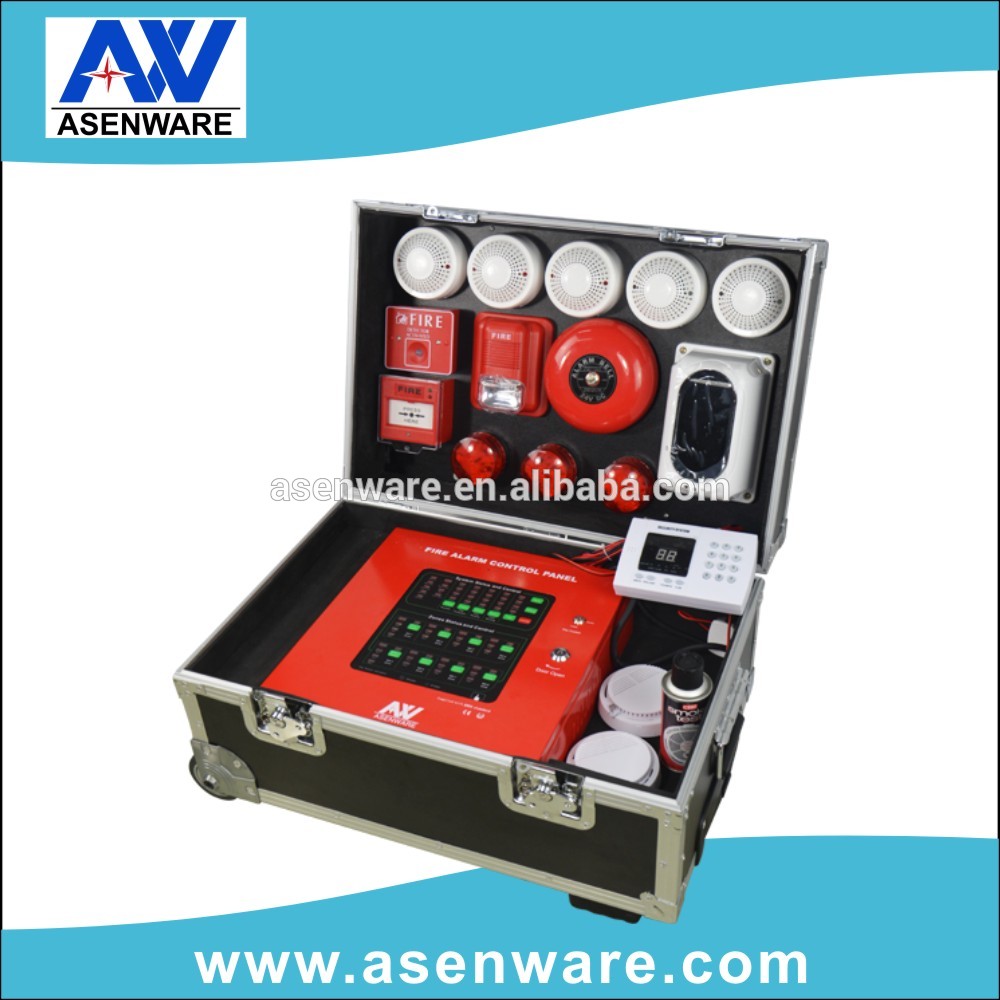

Fire Alarm Control Panel Introduction
| The main parameters of conventionalfire alarm panels as follow: | ||
 | Model | Conventional Fire Alarm Panel AW-CFP2166 (1-32 Zone) |
| Matched | Conventional Smoke Detector/Heat Detector/Manual Call Point | |
| Detector&Accessories | Fire alarm bell/Strobe horn/Flash light | |
| Working Environment | industrial and civil buildingsrestaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, | |
| Benefits | wiring your building into different zones, economical | |
| The main parameters of addressable fire alarm panels as follow: | ||
| | AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |
| AC input voltage: | AC 220V±20% 50Hz | |
| AC input power: | 120W | |
| System working conditions | 1. Temperature: -10°C~+50°C | |
| 2.Humidity: ≤95% | ||
| 3.Power supply: AC 220V 50HZ | ||
| DC 24V 6A | ||
| 4.Output contact capacity: AC 220V 1A | ||
| DC 27.6V 3A | ||
| The main parameters of addressable fire alarm panels as follow: | ||
| | Model | 2 Loops Fire Alarm Control Panel JB-QBL-2100 |
| Matched | Smoke Detector/Heat Detector/Manual Call Point | |
| Detector&Accessories | Hooter/Input-Output Module. Coder | |
| Working Environment | industrial and civil buildings | |
| restaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, | ||
| Benefits | Point reporting/Addressable sensor and module// | |
| Communicate with PC via USB | ||
Detailed Images
Fire Alarm Control Panel Detailed Images
Company Information
Asenware(UK)Ltd
Our Company
Our Office and Fire Alarm System Show Room
Accessories
Fire Alarm System Panel Accessaries
Fire Alarm System AW-2166 Series
Fire Alarm System AW-2188 Series
Fire Alarm System Wide Application
Packaging & Shipping
