Fire Suppression Fire Alarm Control Smoke Detector
1.The AW-CFP2166 is a tranditional type of fire alarm control panel designed based on EN54 part 2&4 standard.
2.It is steady and widely used to work with other brands fire alarm detectors/sensors like manual call point/break glass, smoke detector, heat detector, combined smoke and heat detector, strobe with sounder, flash light, fire bell, etc.
3.It is modularized design, the panel can extend from 1 zone to 32 zones easily.

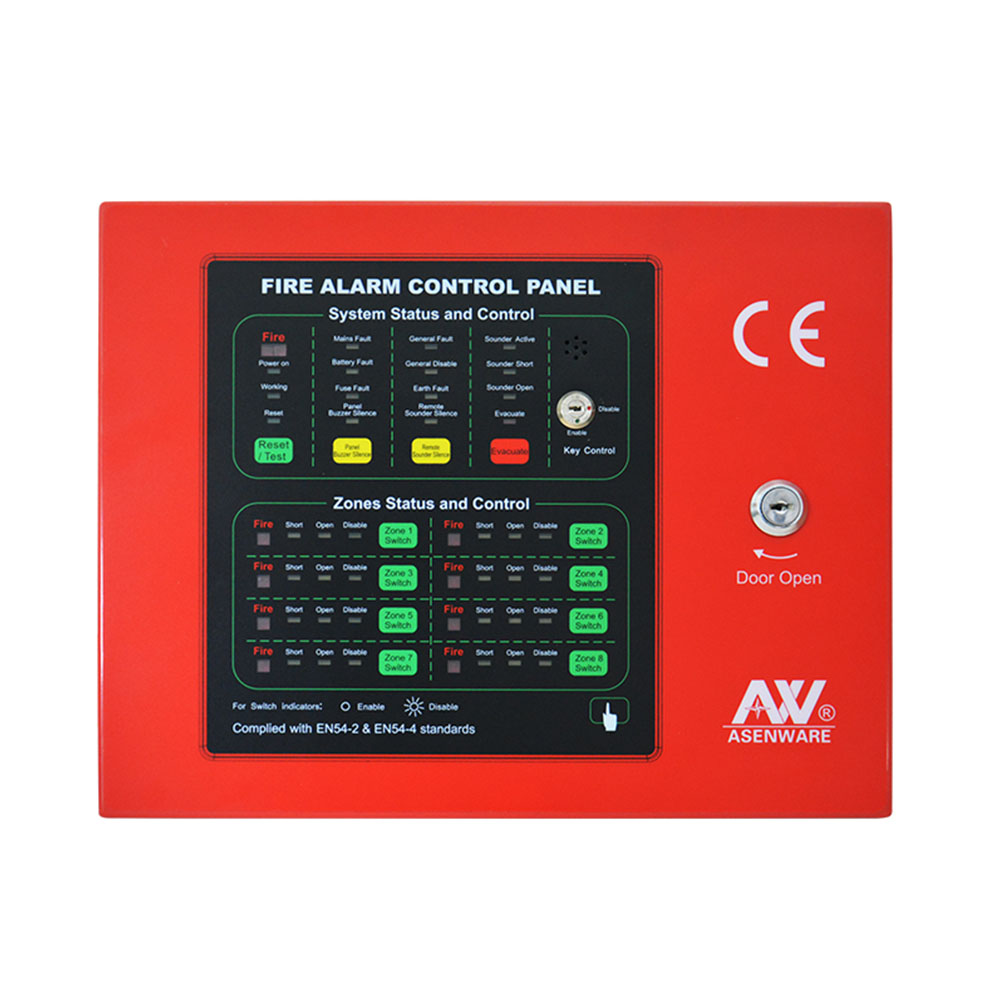

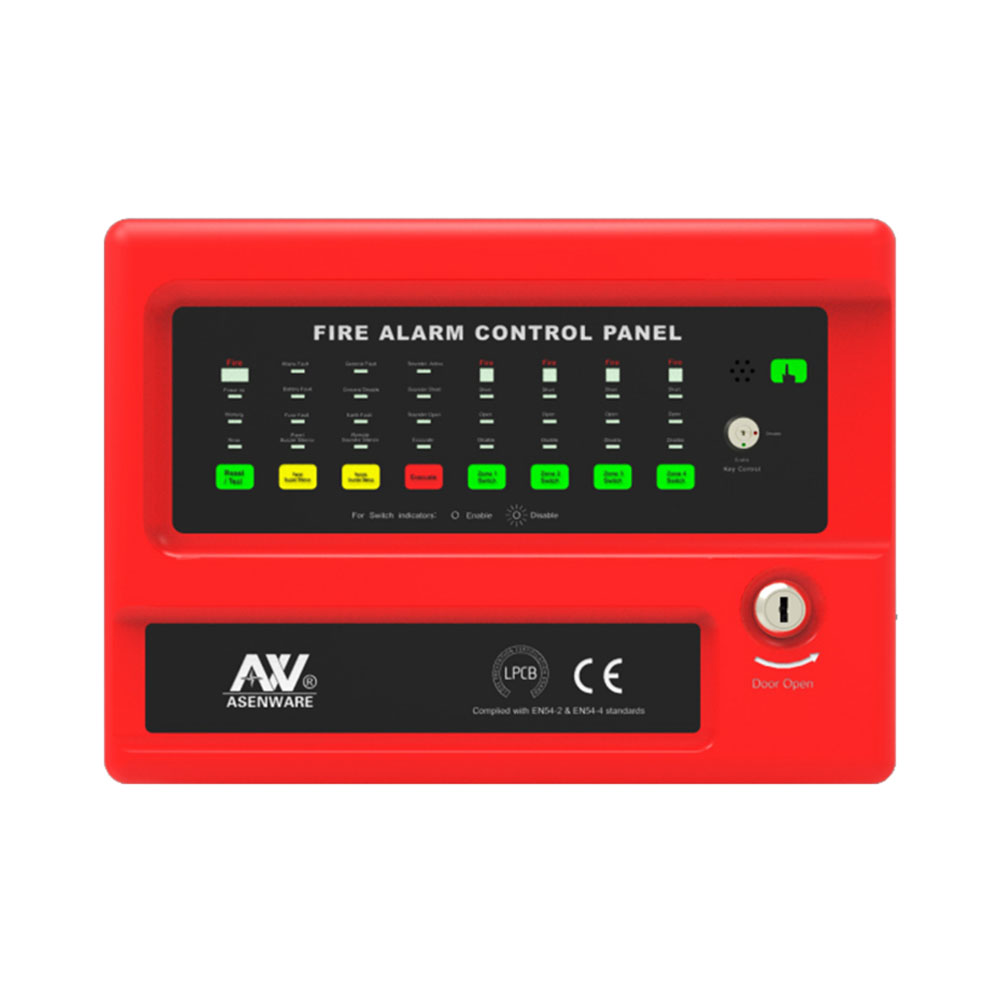

Outlook
Specs:
Model | AW-CFP2166 , 1 to 32 zones |
Design principle | The series conventional fire alarm panel is designed based on EN54 part 2&4 standard. |
control mode | 2 level control mode by a lock |
power supply output | 27VDC |
signal output | Has FIRE PROTECTION, FIRE ROUTING and FAULT signal output; the output can be configured to dry relay type or wet sources type. |
sounders output | Has 2 channel general sounders output. |
Special function |
|
industrial and civil buildings factories, hospitals, restaurants, hotels, schools, business buildings, government buildings,etc. | |
Advantage | Efficient feedback, steady and easy to work with other brands fire products,Humanization setting, Economic, User friendly,etc. |
Parameters:
ITEM | 1 Zone panel | 2 Zone panel | 4-8 Zone panel | 4-32 Zonepanel |
Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-16 | AW-CFP2166-04-32 |
Power specification |
| |||
Mains supply voltage | 110VAC or 240VAC | |||
Internal power supply | 27.2VDC | |||
Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
Main supply monitor for fault | Yes | |||
Battery protection for low voltage | Yes | |||
Batteries (default configuration) | 12V2AH*2 | |||
Detector circuit specification |
| |||
Number of circuit | 1 | 2 | 4-16 | 4-32 |
Maximum number of smoke/heat detectors per zone | 20 (based on a total detector current of 2mA, each detector consuming 100μA).Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. | |||
Maximum number of manual call points per zone | No limit | |||
Sounder circuit specification |
| |||
Number of general circuits | 2 | |||
End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
Line fault monitor for open circuit | Yes | |||
Line fault monitor for short circuit | Yes | |||
Outputs fused AT | 400mA | |||
Maximum number of bells @ 20mA of each sounder output | 20 | |||
Fuses |
| |||
27VDC fuse | 3A F 20mm | |||
Fire and fault output |
| |||
Output type | Dry relay output :NC and NO relay; wet source output | |||
Maximum current | 100mA | |||
Size and weight |
|
| ||
Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg |
How to Wire:
5.The Whole Fire Alarm Control Panel System
Standard config. for 2166 series:
1) AW-CSD311:Conventional Photoelectric Smoke Detector
2) AW-CTD805: Conventional Fixed Heat Detector
3) AW-CSH202:Conventional Smoke & Heat Combind Detector
4) AW-CMC2166-1, AW-CMC2166-5: Conventional Manual Call Point/Break Glass
5) AW-CSS2166-2: Conventional Hooter/Horn
6) AW-CBL2166-A:Conventional Fire Bell
7) AW-CBL2166: Conventional Flash Light
