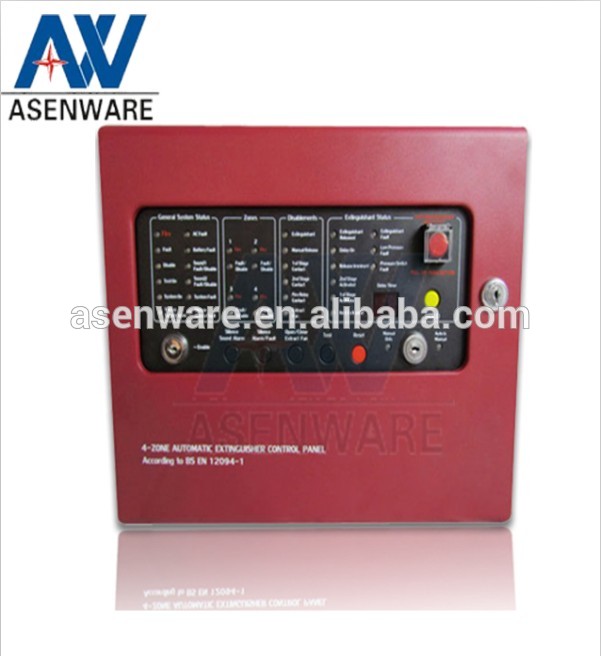

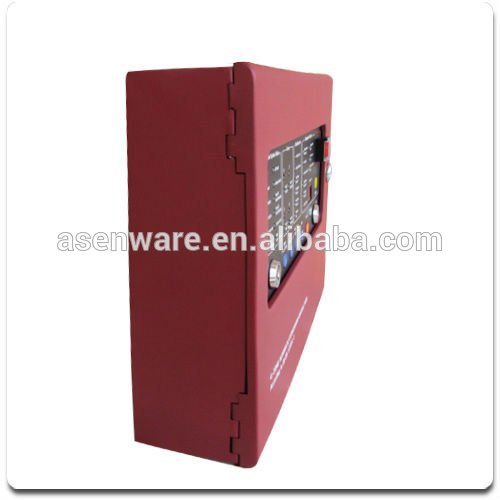

Automatic Fire Extinguisher Control Panel AW-GEC2158
Automatic Fire Extinguisher Control Panel Specification:
ITEM | ELECTRICAL RATING | COMMENT | |
Mains Supply | 90 to 270VAC, 50Hz/60H(100 Watts maximum) |
| |
Battery Type | Two 12 Volt sealed lead acid in series. | 7Ah maximum | |
R0V Output | Fused at 500mA with electronic fuse | 1.6Amp total load over all circuits | |
Sounder Outputs | 21 to 28V DC Fused at 500mA with electronic fuse |
| |
Fault relay contact rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
Fire relay contact rating |
| Volt free changeover contact | |
Local fire relay contact rating |
| Volt free changeover contact | |
First stage contact rating |
| Volt free changeover contact | |
Second Stage Contact Rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
Extract Contact Rating | 5 to 30 VDC 1A Amp maximum for each | Volt free changeover contact | |
No. of detection circuits | Four 21 to 28V DC |
| |
No. of sounder circuits | Thee 21 t0 28V DC | 2 X first stage, 1 X second stage |
Company
1.Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
2.Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service,
3.In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Packing
Standard export packing including:1) Wrapped by PP bag
2) Cartons
3) Pallets or plywood case for sea shipping
