Conventional 2-wire Fire Alarm Detection Control System
ASENWARE LTD.

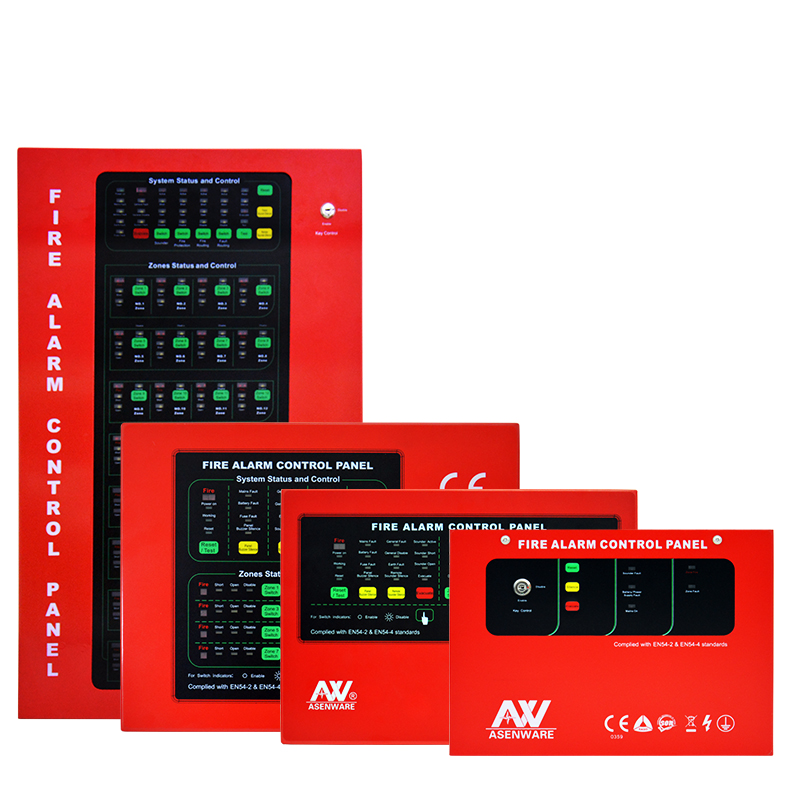

1-32 Zones Conventional Fire Alarm System
Control Panel AW-CFP2166
Introductions:
1 AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2 Adopted modularized design with expendable zone function from 1 zone to 32 zones easily.
3 It has 2 level control mode by a lock
4 It has 24VDC and 5VDC power supply output.
5 It has FIRE and FAULT signal output.
6 It has 2 general sounders outputs.
7 Each zone has 1 circuit detector input .
8 Each zone can be disable by a button.
9 It has RESET button to reset the panel.
10 It has SILENCE button to stop BUZZER & SOUNDERS.
11 It has EVACUATE button to start a manual fire alarm immediately.
12 It has battery low protection function, when battery voltage lower than 21VDC,
battery will be cut off automatically until the mains power is on.
13 Optional GSM module for fire alarm by SMS .
14 It is economic, user-friendly & easy maintenance.
Asenware,professional fire alarm solution provider. Plus,we provide engineers for local installation & commissioning.
1-32 Zones Conventional Fire Alarm System
Control Panel AW-CFP2166
