GSM fire alarm system conventional fire alarm system parameters
| ITEM | 1Zone panel | 2Zone panel | 4-8Zone panel | 4-32 Zone panel |
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
| Main supply monitor for fault | Yes | |||
| Battery protection for low voltage | Yes | |||
| Number of circuit | 1 | 2 | 4-16 | 4-32 |
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Line fault monitor for detector | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
Basic introduction of conventional fire alarm system

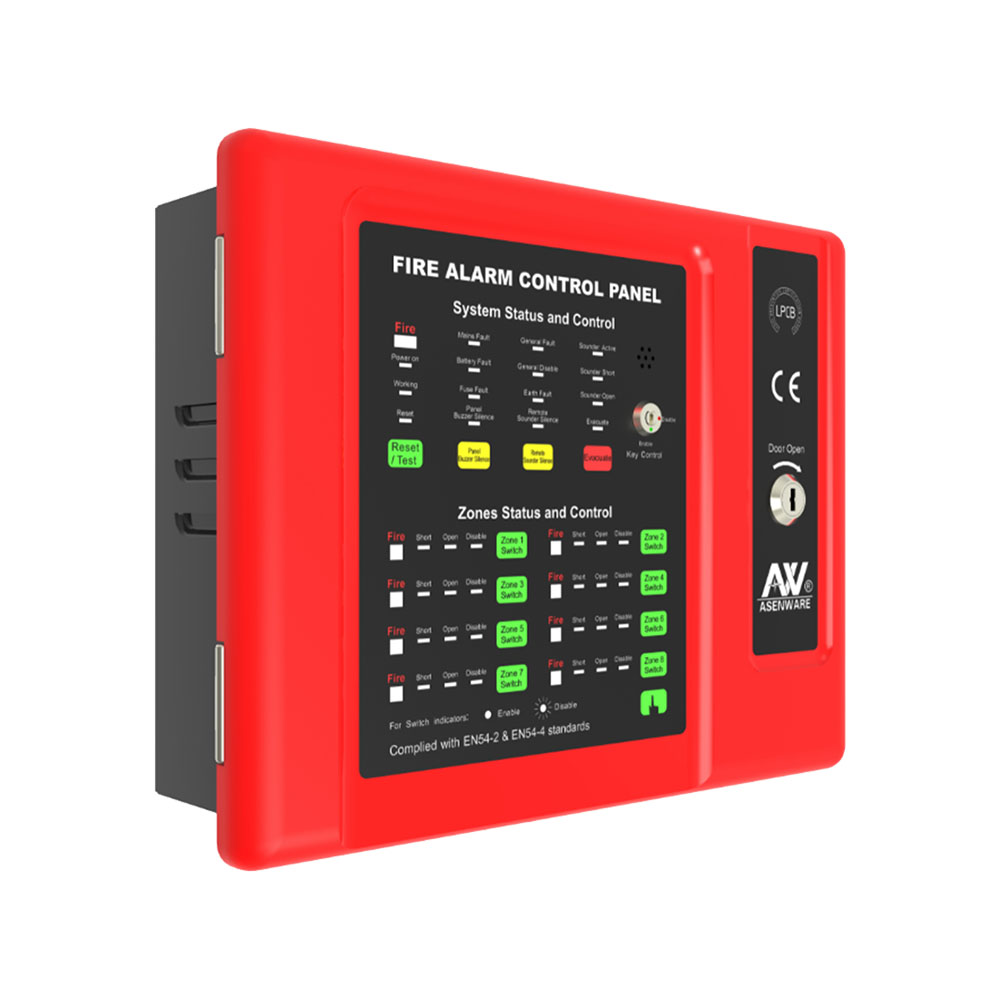

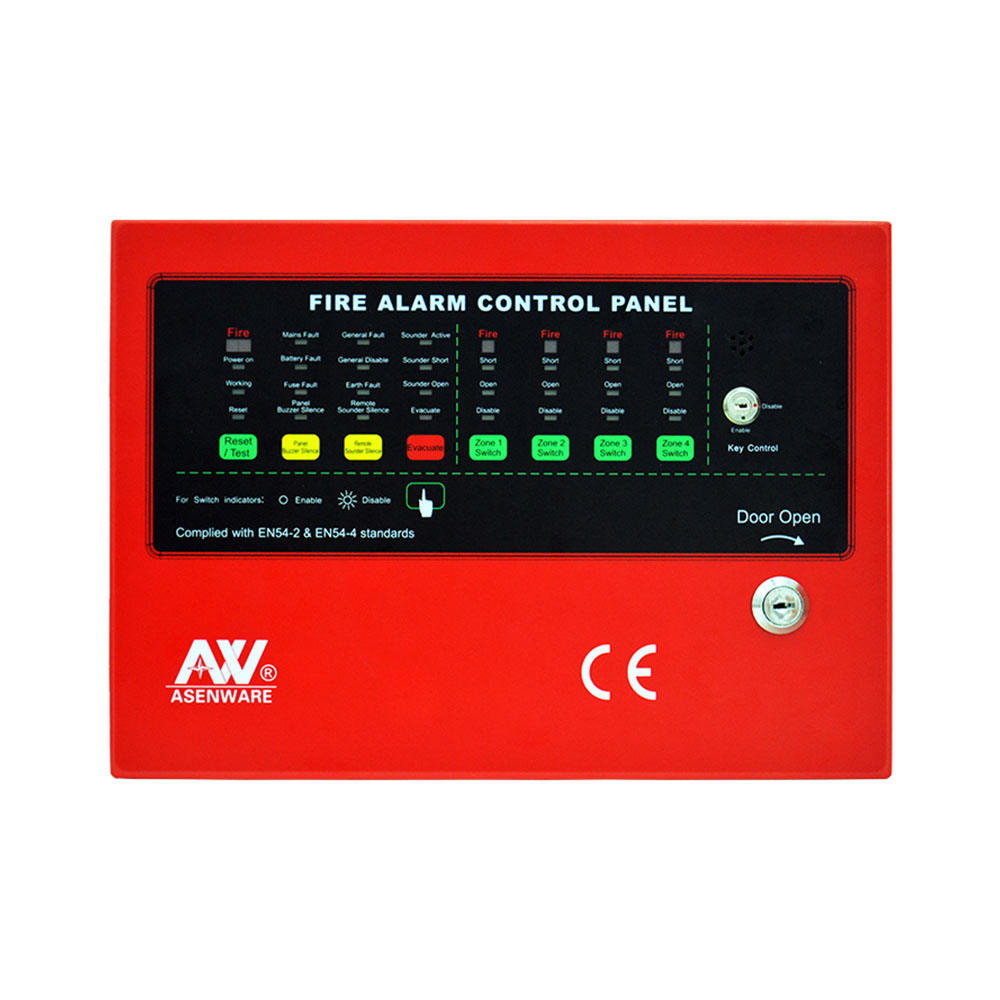

Model | Conventional Fire Alarm Panel AW-CFP2166 (1-32 Zone)
|
Matched | Conventional Smoke Detector/Heat Detector/Manual Call Point Fire alarm bell/Strobe horn/Flash light
|
Working Environment | industrial and civil buildingsrestaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms,
|
Benefits | wiring your building into different zones, economical
|
Features and Characters of Conventional Fire Control Alarm Panel system AW-CFP2166
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard. It is modularized design;
the panel can extend from 1 zone to 32 zones easily.
2. Each zone has 1 circuit detectors input. Each zone can be disabled by a button.
3. It has RESET button to reset the panel. It has SILENCE button to stop BUZZER and SOUNDERS.It has EVACUATE button
to start a manual fire alarm immediately. It has battery low protection function, when battery voltage lower than 21VDC,
battery will be cut off automatically until the mains power is on.
4. It has an optional GSM module for fire alarm by SMS .it is economic, user-friendly and easy maintenance.
Packaging : Use carton to pack 8 zone fire alarm control panel well .
Shpping :UPS FEDEX EMS DHL negotiable for shpping fire alarm control panel
Our services
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
