Module addressable fire alarm system

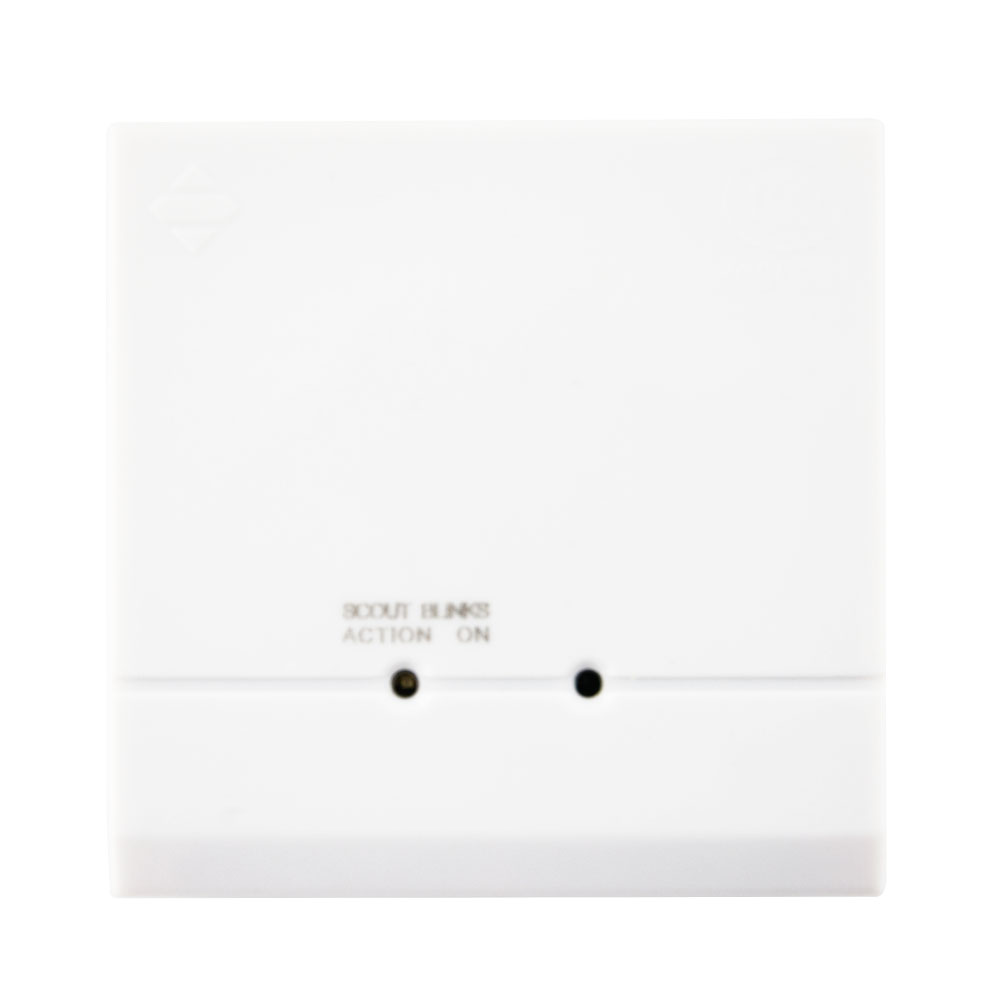

Addressable Fire Alarm input module Overview
1. The AW-AIO2188-IN Intelligent input module is used with AW-AFP2188,a two-bus fire alarm control panel.
2. It can be connected with a conventional smoke detector, a conventional heat detector, a conventional manual call point, a conventional hooter/horn and some other equipment.
3. After the said equipment starts to operate, the alarm signal output will be sent by the AW-AIO2188-IN module to the fire alarm control panel through a signal bus to give a fire alarm.
Addressable Fire Alarm Addressable Input Module Basic introduction | |
Name | Addressable input module |
Model | AW-AIO2188-IN |
Features | DC24V |
Weight | 130g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |
Addressable Input Module for Fire Alarm Panel Technical Parameters
1. Mode of operation: Nonpolar two-wire system
2. Quiescent current: <0.5mA (bus); <6mA (power line)
3. Action current: <2mA (bus); <15mA (power line)
4. Operation indicator: The inspection indicator will blink once about every 12 seconds in the inspection status or remain lit in the operation status.
5. Operating environment: Temperature: -10°C~50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
6. Terminal load: 4.7K resistance
7. External dimensions: 86×86×40(mm)
8. Weight: about 119g
9. Executive standard: GB16806-2006
