Click on the image to view the original image

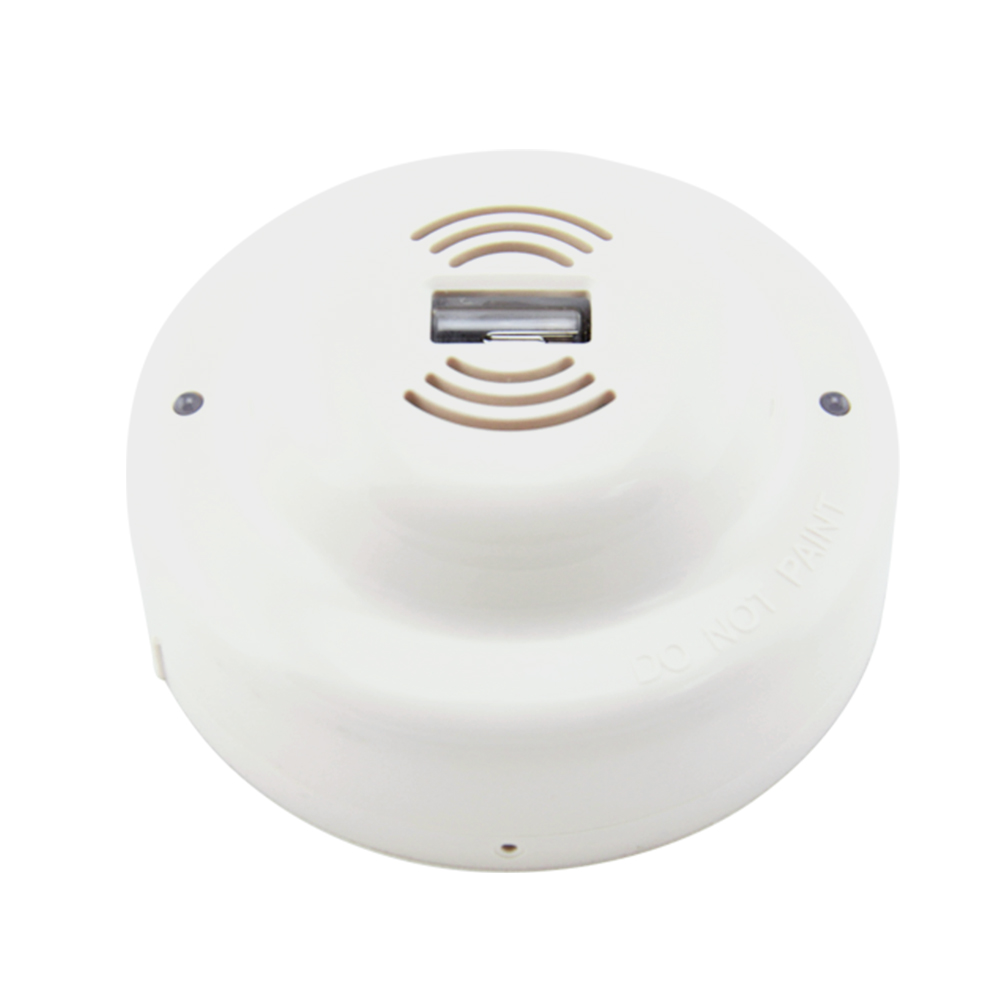

Fire Alarm UV Flame Detector Picture:
Fire Alarm UV Flame Detector Specification:
| Operating Voltage Range | 12 to 30 VDC Volts |
| Standby Current | ≤10 mA @ 24 VDC |
| alarm current | 180~290nm |
| Detection Angleml | 110 degree |
Detection Sensitivity | Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol ) |
| Relay Contact Loado | 1A@DC24Vol |
| Normal Status | LED blinking in 5 seconds interval |
| Alarm Statusnd | LED lit steady |
| Protection rating | IP32 |
| Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Height | 1.8 (45 mm) installed in Base |
| Diameter | 4.0 (103 mm) |
| Weight | 5.4 oz. (153g) |
Company & Certificates
Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service,
In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Exhibition Room
Our Workshop
Shipping
FAQ
My Business Card
