24V Addressable break glass fire alarm button
1. The AW-AMC2188 addressable manual call point is mainly designed to be used with an intelligent two-bus control panel.
2. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control panel which will,
after receiving the alarm signal, display the coded address and the equipment status of the manual call point.
3. When the manual call point is operating normally, the red indicator will blink; when there is a fire alarm,
it will remain lit.
Manual Alarm Call Point Basic introduction | |
Name | Addressable Manual Call Point |
Model | AW-AMC2188 |
Features | Reset key for resettable, Addressable |
Weight | 120g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |

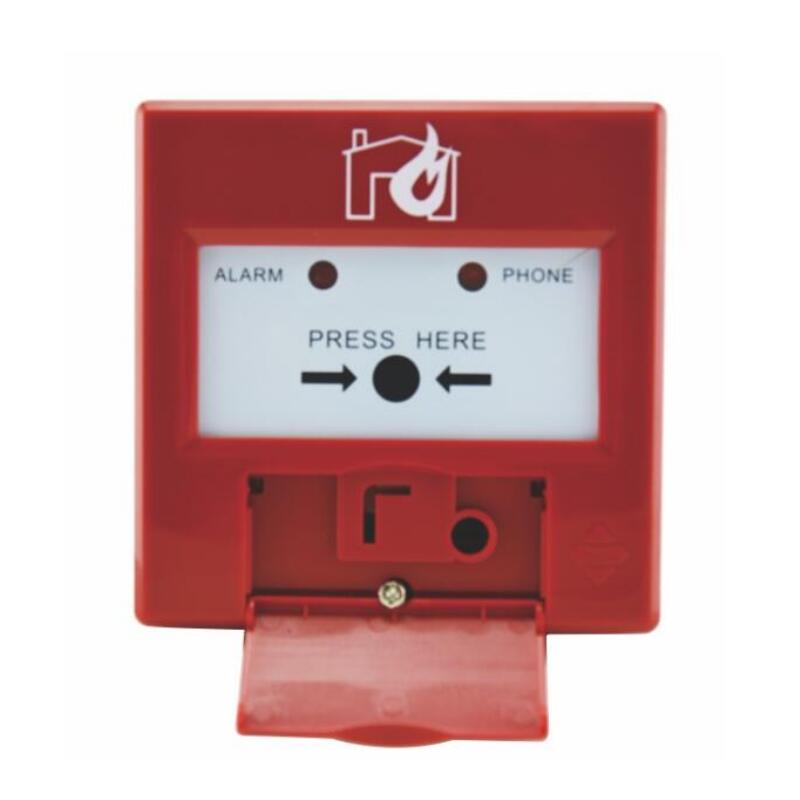

Detailed Picture of Addressable Manual Call Point
Manual Call Point Technical Parameters
Executive standard: GB19880-2005
Operating voltage: 24V (pulse modulation)
Operating current: <300uA (in the monitoring status); <2mA (in the action status)
Output contact: Normally open contact; capacity: 0.1A/30VDC
Wiring method: nonpolar two-bus system (L1, L2)
Operating environment: Indoor, temperature: -10°C~+50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
Telephone jack: Two-wire fire telephone jack (equipped with a standard 6.3 single-track audio connector).
Starting part: A plastic pressing sheet that may be used repeatedly. It can be manually reset with a special tool after being pressed.
Starting mode: Press the pressing sheet manually.
Indicator: The red ALARM indicator will blink in the inspection status or remain lit in the alarm status; the PHONE indicator will blink when a fire telephone loop is connected, otherwise it will be out.
As the pics shows:
Product features:
1. It can realize complete electronic coding and in situ rewriting with help of a coder.
2. Designed with an upper cover and a lower cover, it can be installed, debugged and
maintained conveniently.
3. It is designed with a two-wire fire telephone jack and is therefore more applicable
to engineering application.
4. Designed with passive output contacts, it can control other external equipment
directly through an intermediate relay.
5. The pressing sheet on the manual call point will not get crushed after it is pressed,
but can be reset by a special tool, so it can be used repeatedly.
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
