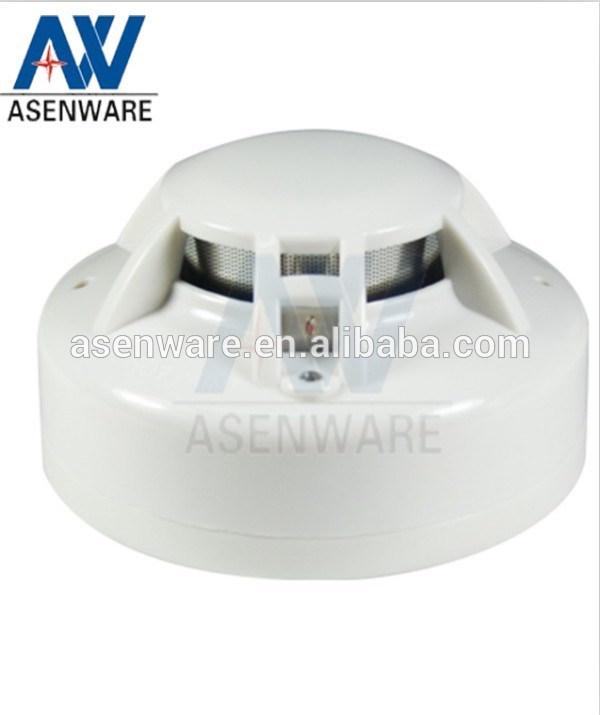

Fire alarm system smoke and heat detector
Specification
Fire alarm system smoke and heat detector Technical parameters | |
Operating Voltage Range | 9 to 28VDC Volts Non-polarized |
Standby Current | ≤60µA / 24 VDC |
Maximum Alarm Current (LED on) | ≤30mA /24 VDC |
Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
Operating Temperature Range | 14°F to 120°F (-10°C to 49°C) |
Smoke Sensitivity | 1.06±.26%FT |
Fixed Temperature Rating | 135°F (57°C) |
Rate of Rise Detection | Responds to greater than 15°F/min |
Height | 2.2 inch (55 mm) installed in Base |
Diameter | 4.0 inch (103 mm) |
Weight | 5.5 oz. (155 g) |
Packaging : PP Bag per Set to protect/Carton Box outside
Shpping :UPS FEDEX EMS DHL negotiable for shpping addressable fire alarm system .
1.OEM ODM can be provided .
2.Technical support like how to install operate .Any question will be answer within 24 hours .
3.We have prfessional technical team to help customers solve technical problems .
4.Hotel project hospital factory fire alarm system project can be made .
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
