Product Description

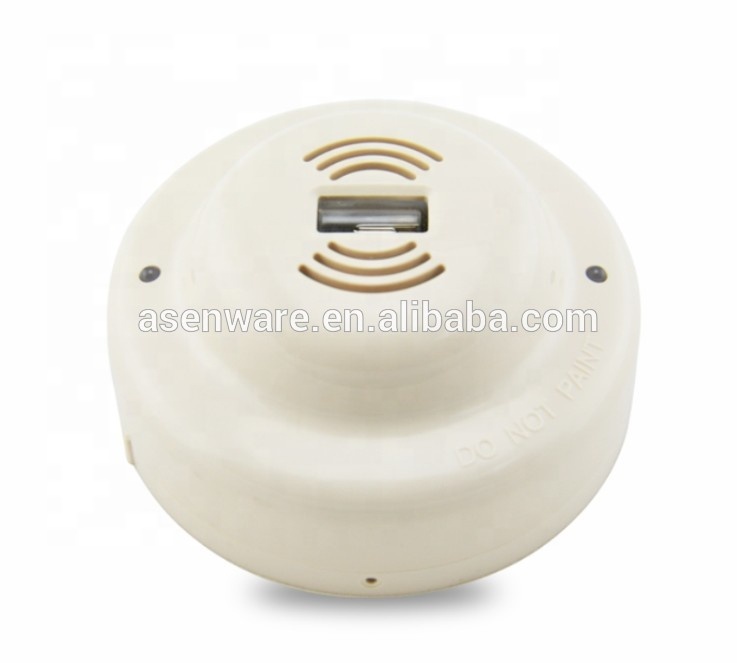

Conventional fire alarm UV flame detector
SPECIFICATIONS:
| Operating Voltage Range | 12 to 30 VDC Volts |
| Standby Current | ≤10 mA @ 24 VDC |
| alarm current | 180~290nm |
| Detection Angleml | 110 degree |
Detection Sensitivity
| Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol ) |
| Relay Contact Loado | 1A@DC24Vol |
| Normal Status | LED blinking in 5 seconds interval |
| Alarm Statusnd | LED lit steady |
| Protection rating | IP32 |
| Operating Humidity Range
| 10% to 93% Relative Humidity, Non-condensing
|
| Operating Temperature Range
| -10°C to 50°C (14°F to 122°F) |
| Height
| 1.8 (45 mm) installed in Base |
| Diameter | 4.0 (103 mm) |
| Weight | 5.4 oz. (153g) |
Packaging & Shipping
As the pics shows:
Company Information
Certificates
Our Services
Ø OEM & ODM service: YES
Ø Technical support and After-sale service: YES
Ø Warranty: 1 YEAR
Ø Delivery Time: 3 - 5 days after payment received
Ø Shipping: delivery by air, ship or DHL, FEDX etc. Express for your order
