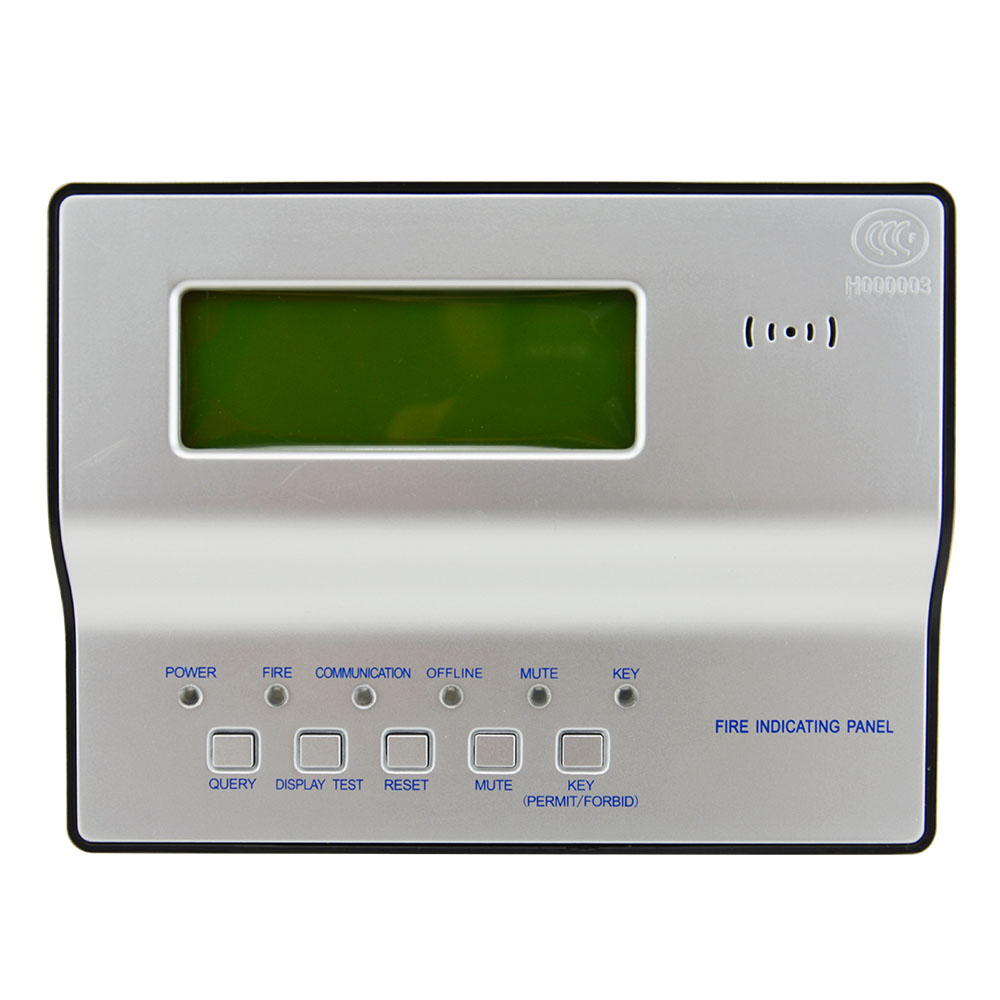

Addressable Fire Display Repeater Panel
The AW-RP2188 fire display panel (Repeater) is a kind of microprocessor-controlled fire display panel developed by our company. Each display panel is connected to a fire alarm control panel produced by our company via a special RS-485 interface to process and display the data sent from the fire alarm control panel. Each floor of a building may have a display panel installed. When there is a fire alarm on the floor where the display panel is installed, or the neighboring floor above or below it, the display panel will give a horn/strobe alarm and display the floor No., the room No., and some other position information of the fire alarm.
Product features
1. Each display panel is connected with a fire alarm control panel via a RS-48 bus. At
most 99 display panels may be connected with each RS-485 bus.
2. The display panels can display fire alarm messages or feedback messages only
rather than fault messages, action messages or other messages.
3. A fire alarm control panel may be used for setting the display area of a display
panel. The set display panel can display the fire alarm messages of the designated
area (floor display) only. Note: See the User’s Manual of the fire alarm control
panel for the setting method.
Technical parameters
1. Executive standard: General Technical Conditions for Fire Indicating Panels
(GB17429-1998)
2. Display capacity: Each display panel can display the fire alarm messages of
floors -10~90 and at most 99 fire alarm messages or feedback messages.
3. Wiring system: Four-wire system, power lines (+24V, GND) and RS485
signal lines (485A, 485B)
4. Operating environment: Indoor; temperature: -10°C~+50°C; relative
humidity: ≤95% (40°C, without condensation)
5. Power supply: DC 24V ±20 %
6. Overall power consumption: <3W
7. Contact capacity: Relay dry contacts, normally open or normally closed,
capacity: 1.25A/DC30V (resistive load)
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 2 to 5 days .Mass product about three weeks .
Warranty :one year
Certificate :CE LPCB ISO9001
Technical support :yes
